DS-2CD753F-EZ(2.7-9mm)

Key features  Dimensions  Accessories    DS-2CD753F-EZ2 MP Vandal Resistant Network Dome Camera  • 1/3” Progressive Scan CMOS  • H.264 / MPEG4 / MJPEG  • Up to 2 Megapixel (1600 x 1200) Resolution  • HD 720P Real-time Video  • e-PTZ Control  • Motorized Varifocal Lens  • Electronic Day / Night  • Vandal Resistant Housing    DS-2CD753F-EZ  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination 0.5 Lux @ (F1.2, AGC ON), 0.1 Lux @ (F1.2, AGC ON, sensitivity x 5)  Shutter time 1/30s to 1/100,000s  Lens 2.7 ~ 9 mm @F1.2, Angle of view: 101° ~ 30.4°  Lens control Motorized  Lens mount Φ 14  Auto iris DC drive  Angle adjustment...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key features
Dimensions
Accessories

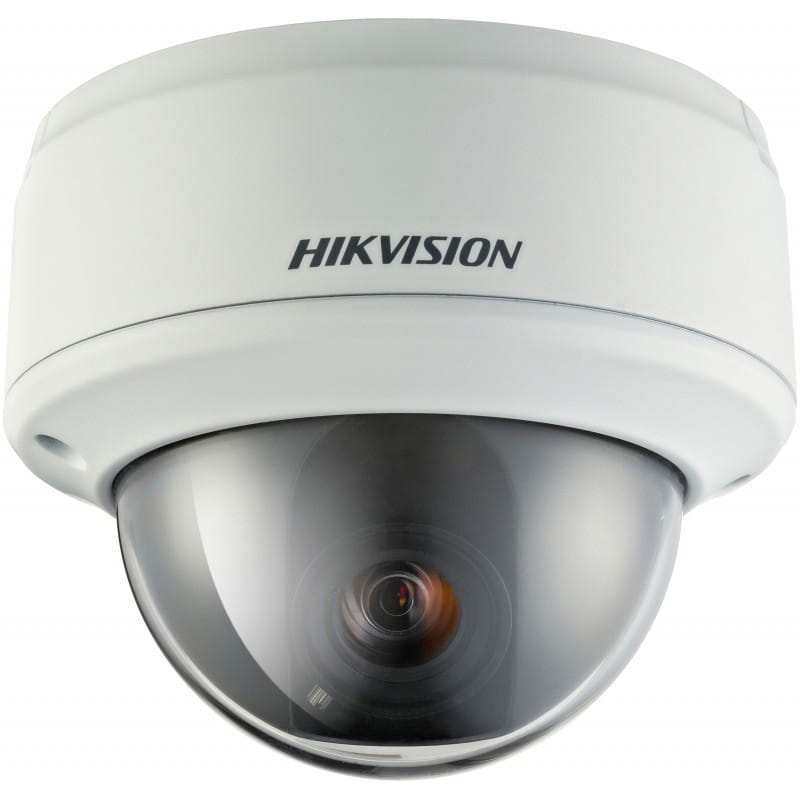

DS-2CD753F-EZ2 MP Vandal Resistant Network Dome Camera
• 1/3” Progressive Scan CMOS
• H.264 / MPEG4 / MJPEG
• Up to 2 Megapixel (1600 x 1200) Resolution
• HD 720P Real-time Video
• e-PTZ Control
• Motorized Varifocal Lens
• Electronic Day / Night
• Vandal Resistant Housing

DS-2CD753F-EZ
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.5 Lux @ (F1.2, AGC ON), 0.1 Lux @ (F1.2, AGC ON, sensitivity x 5)
Shutter time 1/30s to 1/100,000s
Lens 2.7 ~ 9 mm @F1.2, Angle of view: 101° ~ 30.4°
Lens control Motorized
Lens mount Φ 14
Auto iris DC drive
Angle adjustment Pan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0°~ 360°
ElectronicDay & night
Compression Standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711
Dual stream Yes
Max. image resolution 1600 x 1200
Frame rate
60 Hz: 15 fps (1600 x 1200), 15 fps (1600 x 912),
30 fps (1280 x 960), 30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Alarm trigger

Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP
Security User authentication, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch microphone input, 3.5 mm mini-jack
Audio output 1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface 1 RJ45 10M / 100M ethernet port and 1 RS-485 interface
Alarm input 2
Alarm output 2
Video output 1 Vp-p composite output (75 Ω / RCA)
Local storage Built-in SD/SDHC slot, up to 32 GB
Reset button Yes
General
Operating conditions -10°C ~ 60°C (14°F ~ 140°F) Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption 4.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
IR range -
Dimensions Φ 140 x 114 mm ( Φ 5.51” x 4.49”)
Weight 1400g (3.09 lbs)
Available models
DS-2CD753F-EZ

1/3”

CMOS
CMOS

HD Video

DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm

* “-Z” is equipped with Motorized Varifocal Lens
For more information: ww w .hikvision.comHikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 04/26/13
