DS-2CD2T47G2-L(4mm)(C)
Description
DS-2CD2T47G2-L 4 MP ColorVu Fixed Bullet Network Camera Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging against strong backlight due to 130 dB WDR technology Focus on human and vehicle targets classification based on deep learning 24/7 colorful imaging Water and dust resistant (IP67) Specification Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 130 dB Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Iris Type Fixed Lens Type & FOV 2.8 mm, horizontal ...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2CD2T47G2-L

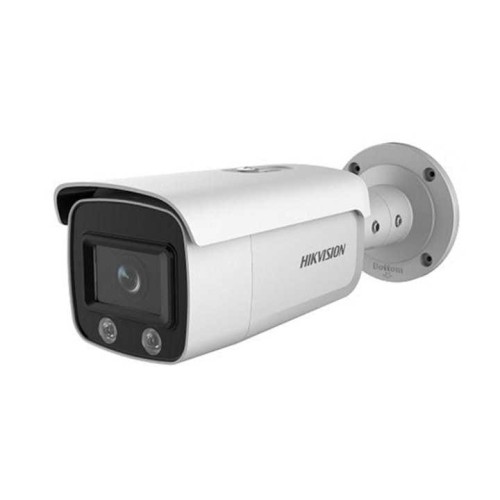

4 MP ColorVu Fixed Bullet Network Camera
Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses and high performance
sensors. F1.0 super-aperture collects more light to produce
brighter images. Advanced sensor technology can vastly
improve the utilization of available light.
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR
technology
Focus on human and vehicle targets classification based on
deep learning
24/7 colorful imaging
Water and dust resistant (IP67)
Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 130 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type Fixed
Lens Type & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Depth of Focus
2.8 mm, 2.5 m to ∞
4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞
Aperture F1.0
Lens Mount M16
DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type White Light
White Light Range 60 m
Smart Supplement Light Yes
Video
Max. Resolution 2688 x 1520
Main Stream
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR ≥ 52 dB
Day/Night Switch Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Linkage Method
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, send email
Firmware Version V5.5.112
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af
Power Consumption and
Current
12 VDC, 0.7 A, max. 8.5 W
PoE (802.3af, 36 V to 57 V), 0.30 A to 0.18 A, max. 10.5 W
Power Interface Ø5.5 mm coaxial power plug
Material Front cover: metal, back cover: metal
Screw Material SUS304
Camera Dimension Ø105 mm x 289.5 mm (Ø4.1″ x 11.4″)
Package Dimension 385 mm x 190 mm x 180 mm (15.2" x 7.5" x 7.1")
Camera Weight Approx. 1170 g (2.4 lb.)
With Package Weight Approx. 1689 g (3.5 lb.)
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
Dimension
Accessory
Optional
DS-1280ZJ-S
Junction Box
DS-1260ZJ
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount
Available Model
DS-2CD2T47G2-L (2.8/4/6 mm)
