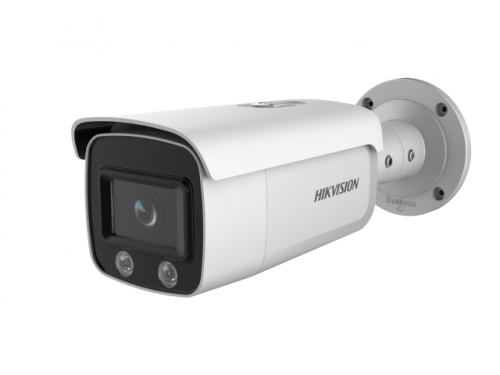

DS-2CD2T47G1-L
4 MP ColorVu Fixed Bullet Network Camera

Key Features
 Max. 2688 x 1520 @30fps
 4 mm/6 mm fixed lens
 H.265+, H.264+
 120dB WDR
 0.0014 @ (F1.0, AGC ON), 0 Lux with Light

 12 VDC & PoE (802.3af, class 3)
 Built-in micro SD/SDHC/SDXC slot, up to 128G
 IP67
 BLC/3D DNR/HLC/ROI



Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 4/6 mm
Aperture F1.0
Focus Fixed
FOV
4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°
6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67°
Lens Mount M16
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fp s(1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by
client software or web browser
Day/Night Switch Day/Night
ROI (Region of Interest) Support 1 fixed region for main stream and sub-stream separately
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR







Alarm Trigger
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal
login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.82
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.7 A, max. 9.5 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
Visible Light Range Up to 30m
Protection Level IP67
Material Front cover: metal, back cover: metal
Dimension
Camera: Φ 105 x 290.7 mm (Φ 4.1" x 11.4")
With package: 385 x 190 x 180 mm (15.2" x 7.5" x 7.1")
Weight
Camera: 1200 g (2.6 lb.)
With package: 1800 g (4 lb.)
Available Model
DS-2CD2T47G1-L (4/6 mm)




291.2(11.5")
93
(3
.7
")
281.9(11.1")
4-Ø 4.2(0.2")
62
.6
(2
.5
")
62.6(2.5")
Ø 105.1(4.1")
Unit: mm(inch)






DS-1260ZJ
Junction Box
DS-1280ZJ-S
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount



Dimension

Accessory
