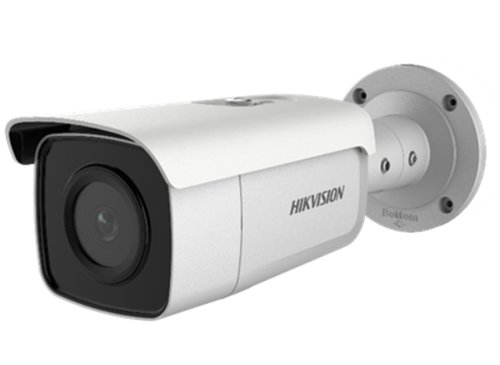

DS-2CD2T46G1-2I(4mm)

Availability: 0
Price: €285.58 285.58
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311306294

Description

DS-2CD2T46G1-2I/4I  4 MP IR Fixed Bullet Network Camera  Key Features   Max. 2688 x 1520 @ 25fps   2.8 mm/4 mm/6 mm/8 mm fixed lens   H.265, H.264   120dB WDR   False alarm filter by target classification       12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m, 80 m, optional   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @  (F1.6, AGC ON)          Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6/8 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°  4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°  8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°  Lens Mount M12  Auto-Iris No  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Sta...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T46G2-2I(4mm)(????)

Replacement product code: 311311203

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2T46G1-2I/4I
4 MP IR Fixed Bullet Network Camera
Key Features
 Max. 2688 x 1520 @ 25fps
 2.8 mm/4 mm/6 mm/8 mm fixed lens
 H.265, H.264
 120dB WDR
 False alarm filter by target classification


 12 VDC & PoE (802.3at, class 4)
 IR range: Up to 50 m, 80 m, optional
 Support on-board storage, up to 128 GB
 IP67
 BLC/3D DNR/ROI
 Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @
(F1.6, AGC ON)




Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6/8 mm
Focus Fixed
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
Lens Mount M12
Auto-Iris No
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ No
H.265 Type Main Profile
H.265+ No
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 576, 640 x 480, 352 x 288)
Image Enhancement BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI








Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SVC H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exit detection,
false alarm filter by target classification
General
Operating Conditions -30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3at, class 4)
Power Consumption
-2I:
12 VDC, 0.9 A, Max: 10.5 W
PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W
-4I:
12 VDC, 1.2 A, Max: 14 W
PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.1A, Max: 17 W
IR Range
-2I: 2LEDs, up to 50 m
-4I: 4LEDs, up to 80 m
Wavelength 850 nm
Protection Level IP67
Material Front cover: metal, back cover: metal
Dimensions Camera: Φ105 x 289.5 mm (Φ4.1″ x 11.4″)
Weight
Camera: 1100 g (2.4 lb.)
With package: 1600 g (3.5 lb.)
Available Models
DS-2CD2T46G1-2I (2.8/4/6/8 mm), DS-2CD2T46G1-4I (2.8/4/6/8 mm)





4-Ø 4.2 mm(0.2")
62
.6
mm
(2
.5
")
62.6 mm(2.5")
90
.4
mm
(2
.6
")
289.5 mm(11.4")
163.4 mm(6.4")
270.2 mm(10.6")
101
.8
mm
(4
.0
")
Ø 105 mm(4.1")








DS-1275ZJ-SUS
Vertical pole mount
DS-1260ZJ
Junction box
DS-1276ZJ-SUS
Corner mount


05056120180725
Dimensions

Accessories
