DS-2CD2T43G0-I5(2.8mm)

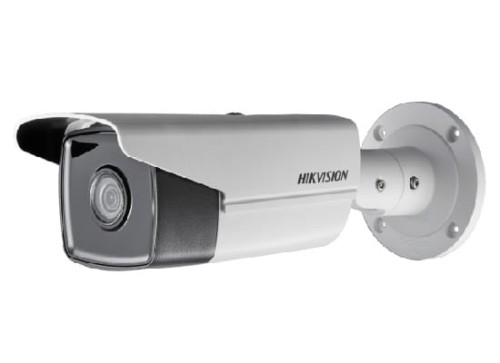

DS-2CD2T43G0-I5/I8  4 MP IR Fixed Bullet Network Camera  * BLC/3D DNR/ROI  * IP67  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB  * 3-Axis adjustment  * 1/3" Progressive Scan CMOS  * 2560 x 1440@30fps  * 2.8/4/6/8 mm fixed lens  * Color: 0.01 Lux @ (F1.2, AGC ON),  0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * Three streams  * 120dB WDR  * 2 Behavior analyses, and face detection    Key Features          Specifications  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Lens  Focal length 2.8/4/6/8 mm  Aperture F1.6  Focus Manual  FOV  2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°  4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°  6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°  8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2T43G0-I5/I8
4 MP IR Fixed Bullet Network Camera
* BLC/3D DNR/ROI
* IP67
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
* 3-Axis adjustment
* 1/3" Progressive Scan CMOS
* 2560 x 1440@30fps
* 2.8/4/6/8 mm fixed lens
* Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* Three streams
* 120dB WDR
* 2 Behavior analyses, and face detection

Key Features




Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
Focal length 2.8/4/6/8 mm
Aperture F1.6
Focus Manual
FOV
2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°
8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal FOV: 44°
Lens Mount M12
IR
IR Range
-I5: Up to 50 m
-I8: Up to 80 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream and sub-stream support
H.265 Type Main Profile
H.265+ Main stream and sub-stream support
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1440
Main Stream
50Hz:25fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
60Hz: 30fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)







Image Enhancement BLC/3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output No
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and
Current
-I5:
12 VDC, 0.6A, max. 7.5W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W
-I8:
12 VDC, 0.95A, max. 11.5W
PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W
Protection Level
IP67
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Metal
Dimensions
Camera: Φ 105 x 299.7 mm (Φ 4.1" x 11.8")
Package: 386 x 156 x 155 mm (15.2" x 6.1" x 6.1")
Weight
Camera: Approx. 1180 g (2.6 lb.)
With Package: Approx. 1700 g (3.7 lb.)
Available Model:
DS-2CD2T43G0-I5 (2.8/4/6/8 mm), DS-2CD2T43G0-I8 (2.8/4/6/8 mm)




299.7(11.80″)
268.9(10.59″)
6
2.
5
8(
2
.
4
6″
)

62.58(2.46″)
Φ
1
0
5
(
4
.
1
3″
)

93(3.66″)
8
8.
9
(
3
.
5
″
)


Unit: mm


DS-1280ZJ-S
Junction Box
















Accessories
Dimensions
