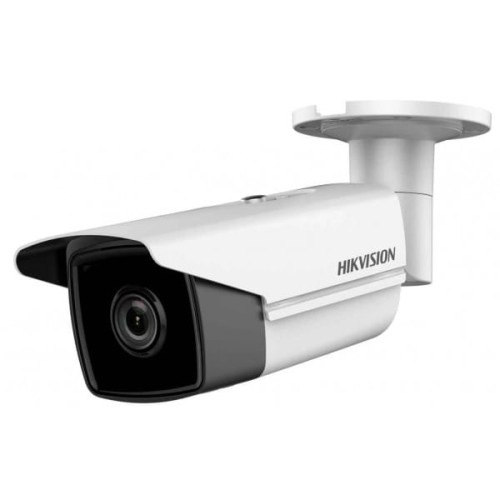

DS-2CD2T35FWD-I8(6mm)

Availability: 0
Price: €228.93 228.93
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300726352

Description

DS-2CD2T35FWD-I5/I8  3 MP Ultra-Low Light Network Bullet Camera  Key Features   Up to 3 megapixel high resolution   Max. 2048 x 1536 @30fps   2.8 mm/4mm/6mm/8 mm/12mm fixed lens,  optional   Ultra-low light   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: 50m, 80m, optional   Support on-board storage, up to 128 GB   IP67          Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 98°  4 mm, horizontal field of view: 78.7°  6 mm, horizontal field of view: 48°  8 mm, horizontal field of view: 37°  12 mm, horizontal field of view: 23°  Lens Mount M12  Iris F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third stream: H.265/H.264  H.264 Type Main Profile/Hi...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2T35FWD-I5/I8
3 MP Ultra-Low Light Network Bullet Camera
Key Features
 Up to 3 megapixel high resolution
 Max. 2048 x 1536 @30fps
 2.8 mm/4mm/6mm/8 mm/12mm fixed lens,
optional
 Ultra-low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: 50m, 80m, optional
 Support on-board storage, up to 128 GB
 IP67




Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 98°
4 mm, horizontal field of view: 78.7°
6 mm, horizontal field of view: 48°
8 mm, horizontal field of view: 37°
12 mm, horizontal field of view: 23°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2048 x 1536
Main Stream
50Hz: 25fps (2048 x 1536, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2048 x 1536, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI








General Function
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE(802.3af 36 – 57V, class 3)
Power Consumption
-I5: 12 VDC, 7 W; PoE, 9 W
-I8: 12 VDC, 10 W; PoE, 12.5W
IR Range
-I5: up to 50 m
-I8: up to 80 m
Protection Level IP67
Dimensions
Camera: Φ105 x 299.7 mm (Φ4.13″ x 11.80″)
Package: 386 x 156 x 155 mm (15.2″ x 6.14″ x 6.1″)
Weight 1200 g (2.65 lb.)
Available Models
DS-2CD2T35FWD-I5(2.8 mm), DS-2CD2T35FWD-I5(4 mm), DS-2CD2T35FWD-I5(6 mm), DS-2CD2T35FWD-I5(8 mm),
DS-2CD2T35FWD-I5(12 mm)
DS-2CD2T35FWD-I8(2.8 mm), DS-2CD2T35FWD-I8(4 mm), DS-2CD2T35FWD-I8(6 mm), DS-2CD2T35FWD-I8(8 mm),
DS-2CD2T35FWD-I8(12 mm)





299.7(11.80″)
268.9(10.59″)
6
2.
5
8(
2
.
4
6″
)

62.58(2.46″)
Φ
1
0
5
(
4
.
1
3″
)

93(3.66″)
8
8.
9
(
3
.
5

)



Unit: mm



DS-1280ZJ-S
Junction Box





Dimensions

Accessories

05050320171023
