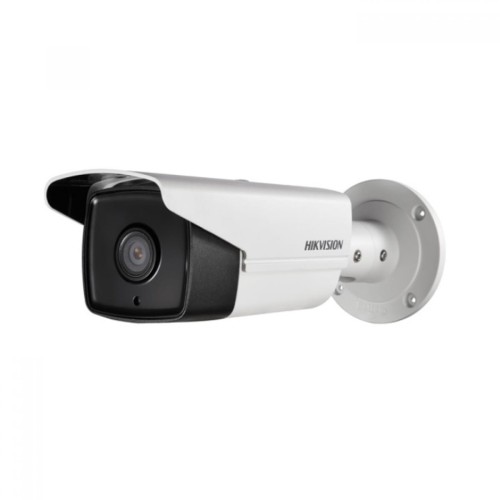

DS-2CD2T32-I5(6MM)
Description
©2006 – 2014 by HIKVISION. All rights reserved. 1 DS-2CD2T32-I3/I5/I8 Key Features Up to 3 megapixel (2048 x 1536) resolution Standard video compression with high compression ratio, ROI (region of interest) encoding Progressive scan CMOS, capture motion video without incised margin Support dual stream, and the sub-stream for mobile surveillance EXIR technology, up to 30/50/80 meters IR range IR cut filter with auto switch PoE (Power over Ethernet) 3D DNR DWDR Ingress Protection level: IP66 Auto-iris, electronic shutter for different surveillance environments Support intrusion detection and line crossing detection Support VCA, which is compatible with NVR for the second time of video searching and analysing Other functions: reset, heartbeat, mirror, etc. 3-axis adjustment Specification Model Parameter DS-2CD2T32-I3/I5/I8 3 Megapixel EXIR Bullet Network Camera Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Lens 4mm, 6mm, 16mm optional ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2T32-I3/I5/I8
Key Features
Up to 3 megapixel (2048 x 1536) resolution
Standard video compression with high compression ratio, ROI (region of interest) encoding
Progressive scan CMOS, capture motion video without incised margin
Support dual stream, and the sub-stream for mobile surveillance
EXIR technology, up to 30/50/80 meters IR range
IR cut filter with auto switch
PoE (Power over Ethernet)
3D DNR
DWDR
Ingress Protection level: IP66
Auto-iris, electronic shutter for different surveillance environments
Support intrusion detection and line crossing detection
Support VCA, which is compatible with NVR for the second time of video searching and analysing
Other functions: reset, heartbeat, mirror, etc.
3-axis adjustment
Specification
Model
Parameter
DS-2CD2T32-I3/I5/I8
3 Megapixel EXIR Bullet Network Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm, 6mm, 16mm optional
Angle of view: 70° (4mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise 3D DNR
©2006 – 2014 by HIKVISION. All rights reserved.
2
Reduction
Wide Dynamic
Range
Digital WDR
Compression Standard
Video Compression H.264/ MJPEG
H.264 Compression
Type
Main Profile
Video Bit Rate 32 Kbps – 12 Mbps
Dual Stream Yes
Max. Resolution 2048 x 1536
Frame Rate
50Hz: 20fps @2048 x 1536, 25fps @(1920 x 1080, 1280 x 720)
60Hz: 20fps @2048 x 1536, 30fps @(1920 x 1080, 1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic
Analysis, Tampering alarm, Network disconnect, IP address conflict,
Storage full, Storage error
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
General
Operating
Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power
Consumption
I3: Max. 6W
I5: Max. 7.5W
I8: Max. 10.5W
Ingress Protection IP66
©2006 – 2014 by HIKVISION. All rights reserved.
3
level
IR Range
I3: 30 meters
I5: 50 meters
I8: 80 meters
Dimensions(mm) 299.71 x 86.48 x 85.11(11.8’’ x 3.4’’ x 3.35’’)
Weight 1200g
Order Models
DS-2CD2T32-I3, DS-2CD2T32-I5, DS-2CD2T32-I8
Dimensions
