DS-2CD2T25FWD-I5(4mm)

DS -2CD 2T25FWD-I5/I8  2 MP Ultra-Low Light Network Bullet Camera  Key Features   Up to 2 megapixel high resolution   Max. 192 0 x 1080 @30fps   2.8 mm/4mm/6mm/8 mm/12mm fixed lens,  optional   Ultra -low light   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: 50m, 80m, optional   Support on -board storage, up to 128 GB   IP67        Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 108°  4 mm, horizontal field of view: 86.4°  6 mm, horizontal field of view: 52 °  8 mm, horizontal field of view: 40 °  12 mm, horizontal field of view: 25 °  Lens Mount M12  Iris F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Compression Standard  Vid...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS -2CD 2T25FWD-I5/I8

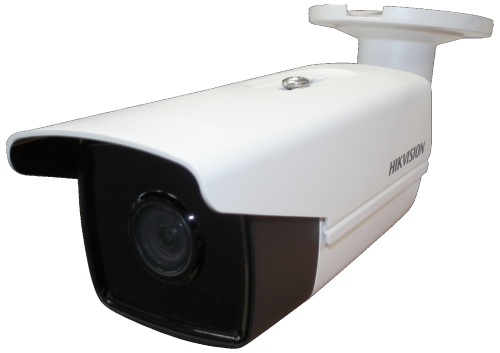

2 MP Ultra-Low Light Network Bullet Camera
Key Features
 Up to 2 megapixel high resolution
 Max. 192 0 x 1080 @30fps
 2.8 mm/4mm/6mm/8 mm/12mm fixed lens,
optional
 Ultra -low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: 50m, 80m, optional
 Support on -board storage, up to 128 GB
 IP67



Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52 °
8 mm, horizontal field of view: 40 °
12 mm, horizontal field of view: 25 °
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280x720 , 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280x720, 640 x 360, 352 x 240)
Image Enhancement BLC /3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for mainstream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection , Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI








General Function
One -key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
On -board Storage Built -in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre -defined virtual line, up to 1 p re-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre -defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre -defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre -defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% , PoE(802.3af 42.5 – 57 V, class 3)
Power Consumption
-I5: 12 VDC ± 25%, 7 W; PoE, 9 W
-I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
IR Range
-I5: up to 50 m
-I8: up to 80 m
Protection Level IP6 7
Dimensions
Camera: Φ105 x 299.7 mm (Φ4.13 ″ x 11.80 ″)
Package: 386 x 156 x 155 mm (15.2″ x 6.14 ″ x 6.1 ″)
Weight 1200 g (2.65 lb.)
Available Models
DS -2CD2T25FWD-I5( 2.8 mm), DS -2CD2T25FWD-I5(4 mm), DS-2CD2T25FWD-I5(6 mm), DS -2CD2T25FWD-I5( 8 mm),
DS -2CD2T25FWD-I5(12 mm)
DS -2CD2T25FWD-I8( 2.8 mm), DS -2CD2T25FWD-I8( 4 mm), DS -2CD2T25FWD-I8(6 mm), DS-2CD2T25FWD-I8( 8 mm),
DS -2CD2T25FWD-I8(12 mm)




299.7(11.80″)
268.9(10.59″)
6
2.
5
8(
2
.
4
6″
)

62.58(2.46″)
Φ
1
0
5
(
4
.
1
3″
)

93(3.66″)
8
8.
9
(
3
.
5
″
)



Unit: mm



DS -1280ZJ -S
Junction Box







Dimensions

Accessories

0504042017012 2
