DS-2CD2Q10FD-IW(4mm)
Description
Key features • 1.0 megapixel resolution • HD720p real-time video • PIR detection • IR LEDs (up to 10m) • DWDR & 3D DNR & BLC • Motorized Pan/tilt rotation • SD/SDHC/SDXC card slot (up to 64GB) • Wi-Fi optional (WPS connection) • Built-in Mic & Speaker DS-2CD2Q10FD-IW Camera Image sensor1/4” progressive scan CMOS Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR Shutter time1/3s ~ 1/100,000s Lens4mm@ F2.0, Angle of view: 52.4° (2.8mm, 6mm optional) Lens mountM12 Day & nightICR Pan & tiltPan: 0° - 355°, Tilt: -20° ~ 90° Digital noise reduction3D DNR Wide dynamic rangeDigital WDR Backlight compensationYes, zone configurable Compression Standard Video compression H.264 / MJPEG H.264 codec profileMain profile Bit rate32 Kbps ~ 8 Mbps Audio compression (-S)G.711 / G.726 / MP2L2 / G.722 Audio bit rate (-S)64Kbps (G.711) / 16Kbps (G.726) / 32 ~ 128Kbps (MP2L2) / 16Kbps(G.722) Image Max. Image Resolution1280 x 720 Frame rate 50 Hz: 25fps (1280 x 720) 25fps (704 x 576) 25fps (640 x 480) 60 Hz: 30fps (1280 x 720) 30fps (704 x 576) 30fps (640 x 480) Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key features
• 1.0 megapixel resolution
• HD720p real-time video
• PIR detection
• IR LEDs (up to 10m)
• DWDR & 3D DNR & BLC
• Motorized Pan/tilt rotation
• SD/SDHC/SDXC card slot (up to 64GB)
• Wi-Fi optional (WPS connection)
• Built-in Mic & Speaker
DS-2CD2Q10FD-IW
Camera
Image sensor1/4” progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/3s ~ 1/100,000s
Lens4mm@ F2.0, Angle of view: 52.4° (2.8mm, 6mm optional)
Lens mountM12
Day & nightICR
Pan & tiltPan: 0° - 355°, Tilt: -20° ~ 90°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone configurable
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profileMain profile
Bit rate32 Kbps ~ 8 Mbps
Audio compression (-S)G.711 / G.726 / MP2L2 / G.722
Audio bit rate (-S)64Kbps (G.711) / 16Kbps (G.726) / 32 ~ 128Kbps (MP2L2) / 16Kbps(G.722)
Max. Image Resolution1280 x 720
Frame rate
50 Hz: 25fps (1280 x 720) 25fps (704 x 576) 25fps (640 x 480)
60 Hz: 30fps (1280 x 720) 30fps (704 x 576) 30fps (640 x 480)
Image settings
Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client
software or web browser
ROIYes, up to 4 configurable areas
Network
Network storageNAS
Alarm trigger
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict,
Storage exception
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
Audio input1-ch built-in microphone
Audio output1-ch 3.5mm audio interface, 1-ch built-in speaker
Onboard storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O1/1
General
Operating conditions-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supplyDC5V±10%
Power consumptionMax. 7W
PIRAngle: 80° ; Range: 10m
IR range10 meters
Wi-Fi standard
IEEE802.11b, 802.11g, 802.11n Draft
Frequency range
2.4 GHz ~ 2.4835 GHz
Communication bandwidth
Support 20/40 MHz
Protocols
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
802.11g/n: OFDM
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission range
Indoor: 50m
* Actual performance varies based upon environmental factors

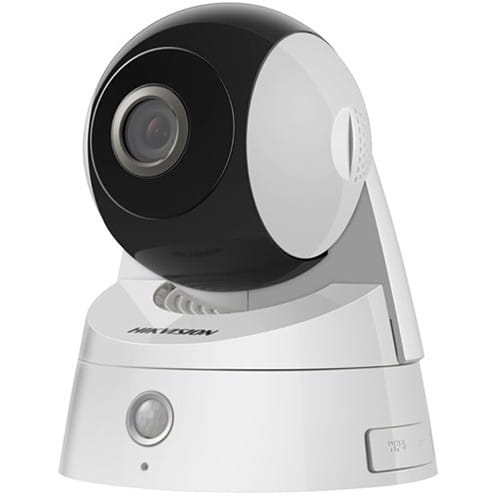

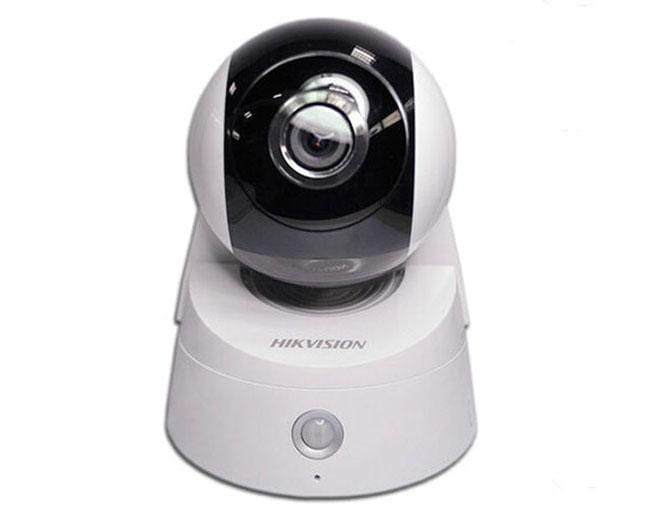

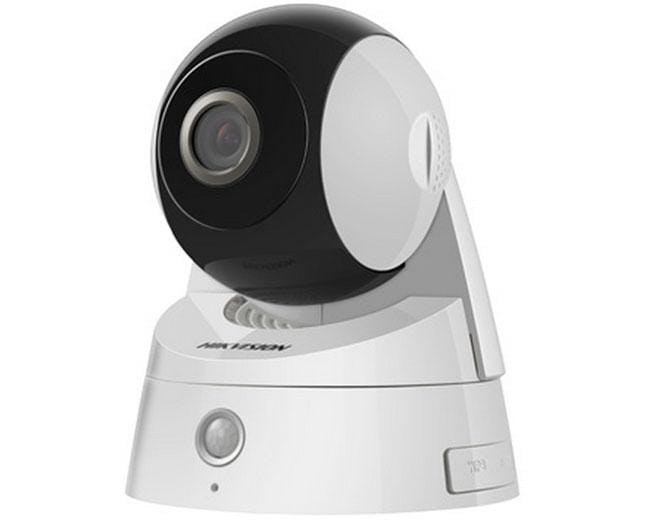

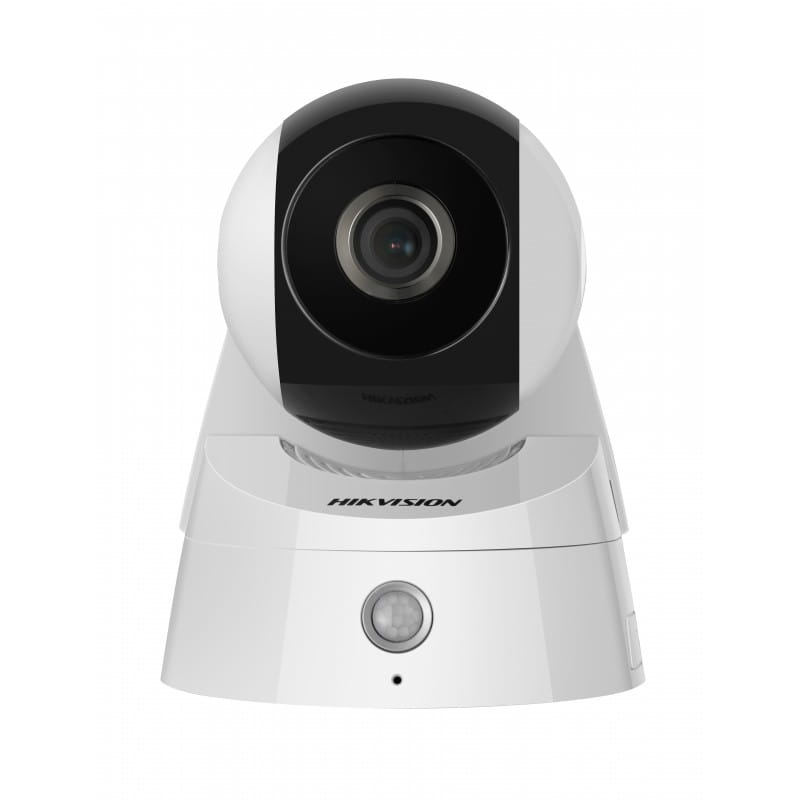

1.0MP Mini IR PT Network Camera
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.
Available model
Wi-Fi parameters
DS-2CD2Q10FD-IW
DS-2CD2Q10FD-IW
Voice
Talk
PIR
Pan/Tilt
Alarm
