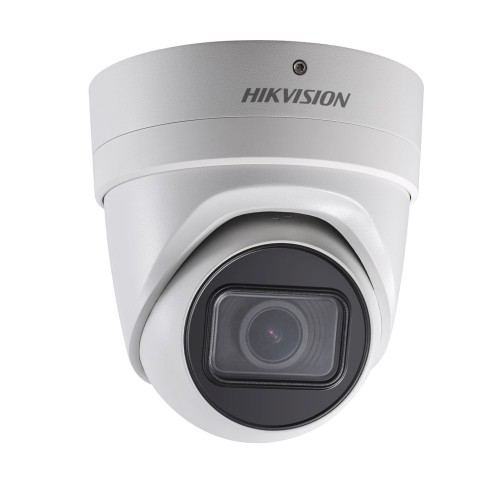

DS-2CD2H63G0-IZS(2.8-12mm)

DS-2CD2H63G0-IZS  6 MP IR VF Turret Network Camera  * BLC/3D DNR/ROI  * IP67, IK10  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    * 1/2.9" Progressive Scan CMOS  * 3072 x 2048@20 fps  * 2.8 to 12 mm varifocal lens  * Color: 0.01 Lux @ (F1.2, AGC ON), 0.018  Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR      Key Features        Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Aperture F1.6  Focus Auto  FOV  Horizontal field of view: 88° to 27°  Vertical field of view: 56° to 18°  Diagonal field of view: 110° to 33°  Lens Mount Φ  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2H63G0-IZS
6 MP IR VF Turret Network Camera
* BLC/3D DNR/ROI
* IP67, IK10
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

* 1/2.9" Progressive Scan CMOS
* 3072 x 2048@20 fps
* 2.8 to 12 mm varifocal lens
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.018
Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR


Key Features



Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 88° to 27°
Vertical field of view: 56° to 18°
Diagonal field of view: 110° to 33°
Lens Mount Φ
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)






60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output
Video Output 1Vp-p composite output (75 Ω/BNC) (For adjustment only)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5mm coaxial plug power
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 1 A, max. 11 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.3 A, max. 12.5 W
Protection Level IP67, IK10
Material Metal
Dimensions Φ 135.8 mm x 145.5 mm (Φ 5.4" x 5.7")
Weight
With package: approx. 1220 g (2.7 lb.)
Camera: approx. 1060 g (2.3 lb.)






Φ135.8 mm
(5.4")
145.5 mm
(5.7")
46 mm (1.8")
35 mm (1.4")
83.5 mm
(3.3")
Φ 36 mm (1.4")
Φ 4.5 mm
(0.2")






DS-1473ZJ-135
Wall Mount
DS-1471ZJ-135
Pendant Mount
DS-1281ZJ-DM23
Inclined Ceiling Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount
DS-1473ZJ-135B
Wall Mount
with Junction Box




Accessories
Dimensions
Available Model:
DS-2CD2H63G0-IZS (2.8 to 12 mm)
