Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

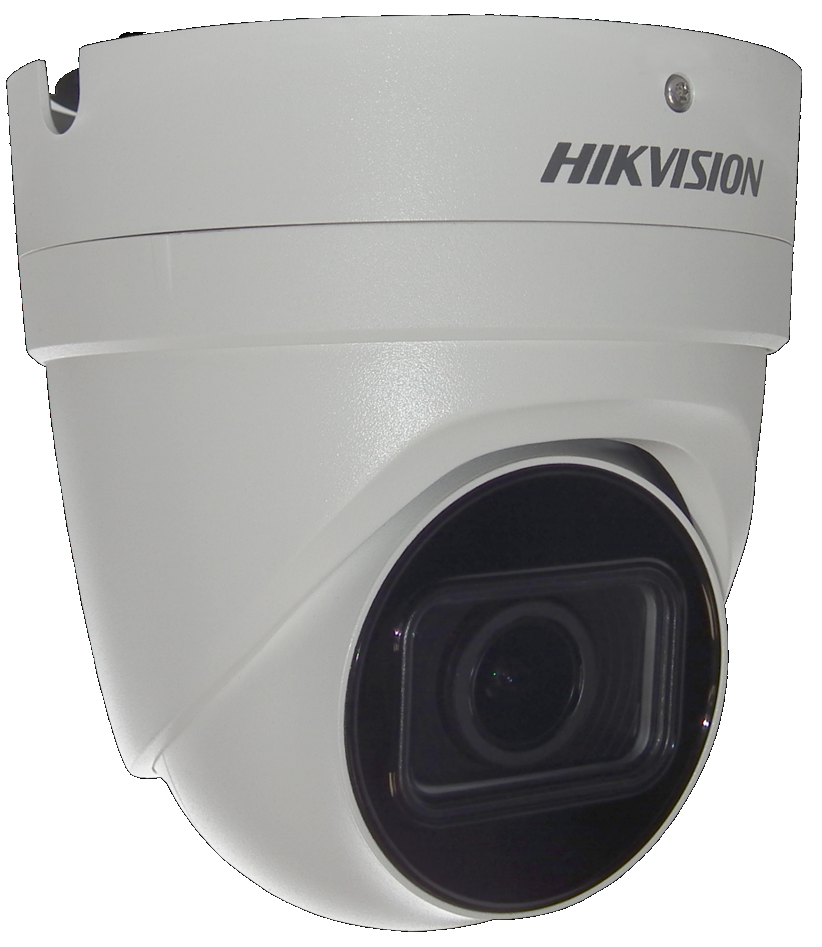

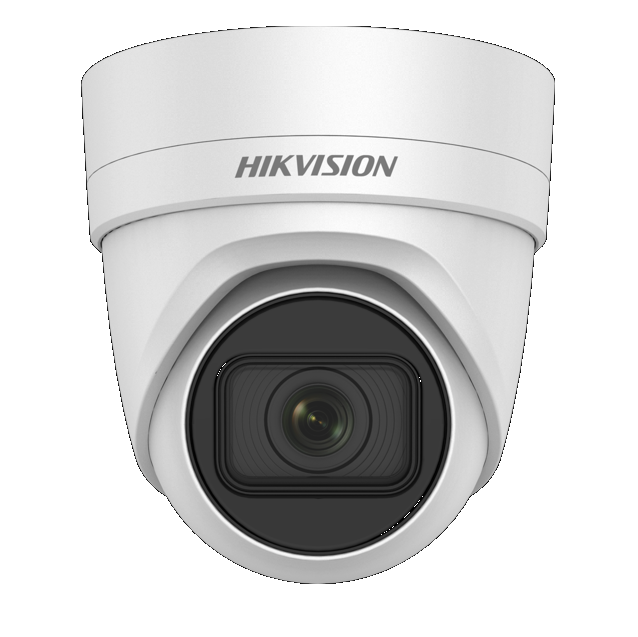

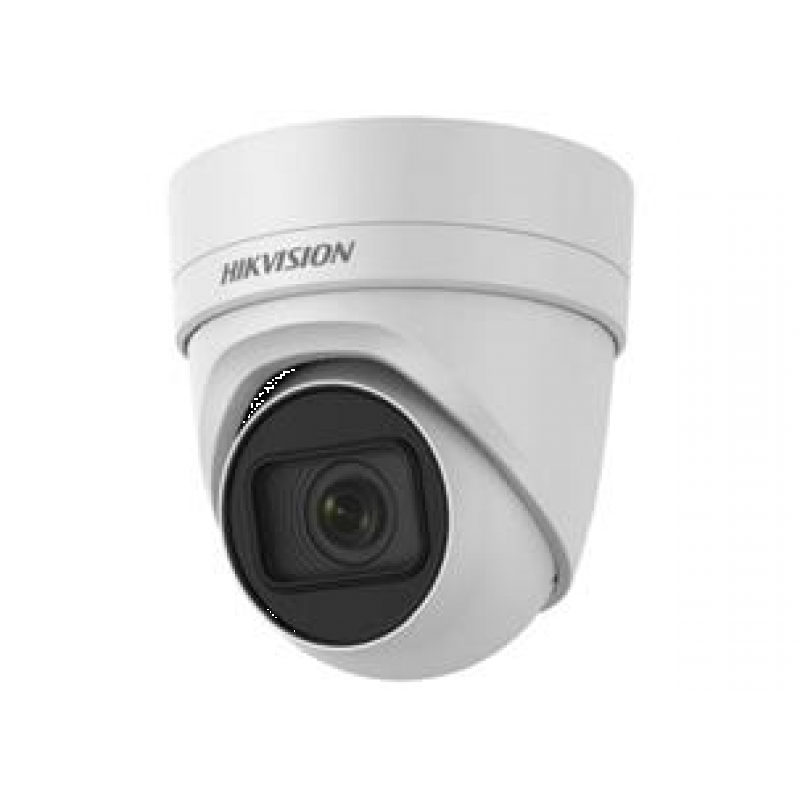

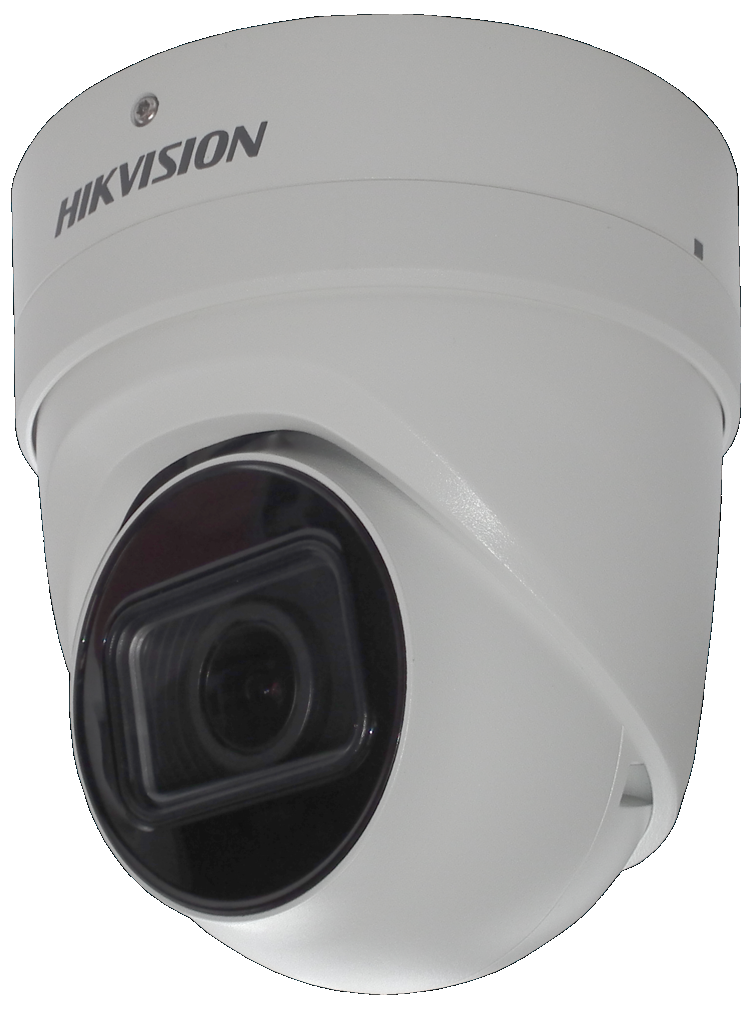

DS-2CD2H55FWD-IZS
5 MP WDR Vari-focal Network Turret Camera
Ÿ BLC/3D DNR/ROI
Ÿ Smart encoding: Support low bit rate, low
latency
Ÿ 4 behavior analyses and face detecon

Ÿ 1/2.9" Progressive Scan CMOS
Ÿ 2944 x 1656 resoluon
Ÿ H.265, H.265+
Ÿ 120dB WDR
Ÿ IP67, IK10

Key Features

Speciﬁcaons
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illuminaon
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shuer Speed 1/3 s to 1/100,000 s
Slow Shuer Support
Day & Night IR Cut Filter
Digital Noise Reducon 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, lt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8 to 12 mm
Aperture F1.4
FOV
Horizontal ﬁeld of view: 88° to 29°
Vercal ﬁeld of view: 47.5° to 16.5°
Diagonal ﬁeld of view: 103° to 33°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265+/H.265/H.264+/H.264/MJPEG
Third stream: H.265+/H.265/H.264+/H.264
H.264 Type Main Proﬁle/High Proﬁle
H.265 Type Main Proﬁle
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2
Audio Bit Rate 32 to 128kbps
Smart Feature-set
Behavior Analysis
Line crossing detecon, intrusion detecon, unaended baggage detecon, object removal
detecon
Face Detecon Support
Region of Interest Support 1 ﬁxed region for each stream
Max. Resoluon 2944 x 1656
Main Stream
50Hz: 20 fps (2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x720)
60Hz: 20 fps (2944 x 1656), 30 fps (2560 x 1440, 1920 x 1080, 1280 x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Seng
Rotate mode, saturaon, brightness, contrast, sharpness adjustable by client soware or web
browser

Note: If the WDR and Rotaon are both enabled, the frame rate of the main stream should not be more than 20.

Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Moon detecon, video tampering, network disconnected, IP address conﬂict, illegal login, HDD
full, HDD error, Alarm input, Alarm output
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Funcon
One-key reset, an-ﬂicker, three streams, heartbeat, password protecon, privacy mask,
watermark, IP address ﬁlter
API ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), single track
Communicaon Interface 1 RJ45 10M/100M self-adapve Ethernet port
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p composite output (75 Ω/BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 encoding supports
Reset Buon Support
Audio
Environment Noise Filtering Support
Audio Sampling Rate 16 kHz
General
Operang Condions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af)
Terminal block for DC input
Power Consumpon and
Current
12 VDC, 0.92A, max. 11W
PoE (802.3af, 37V to 57V), 0.22A to 0.35A, max. 12.5W
Protecon Level IP67, IK10
Material Metal
Dimensions Φ 135.8 mm x 145.5 mm (Φ 5.35" x 5.73")
Weight
With Package: Approx. 1220 g (2.69 lb.)
Camera: Approx. 1060 g (2.34 lb.)

Φ135.8 mm
(5.35")
145.5 mm
(5.73")46 mm (1.81")
35 mm (1.38")
83.5 mm
(3.29")
Φ 36 mm
(1.42")
Φ 4.5 mm
(0.18")

DS-1473ZJ-135
Wall Mount
DS-1271ZJ-135
Pendant Mount
DS-1281ZJ-DM23
Inclined Ceiling Mount

Accessories
Dimensions
Available Model:
DS-2CD2H55FWD-IZS
