DS-2CD2H46G2-IZS(2.8-12mm)(C)

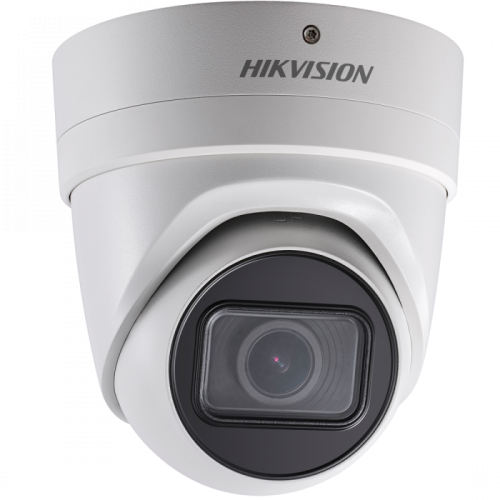

DS-2CD2H46G2-IZS  4 MP AcuSense EXIR Motorized Varifocal Turret Network Camera                                   High quality imaging with 4 MP resolution   Motorized Varifocal lens for easy installation and  monitoring     Excellent low-light performance with  powered-by-DarkFighter technology     Focusing on human and vehicle classification based on  deep learning     Clear imaging against strong back light due to 120 dB WDR  technology     Efficient H.265+ compression technology   Water and dust resistant IP66 and vandal proof IK10             Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Day & Night ICR Cut  Slow Shutter Yes  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°  P/N P/N  Wide Dynamic Range 120 dB  Power-off Memory Yes  Lens  Lens Type & FOV  2.8 to 12 mm, horizontal FOV 108° to 32.8°, vertical FOV 56° to 18.5°, diagonal FOV  131° to 37.8°  Aperture F1.4  Lens Mount Ø14  Aperture Type Fixed  Focus Auto

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2H46G2-IZS

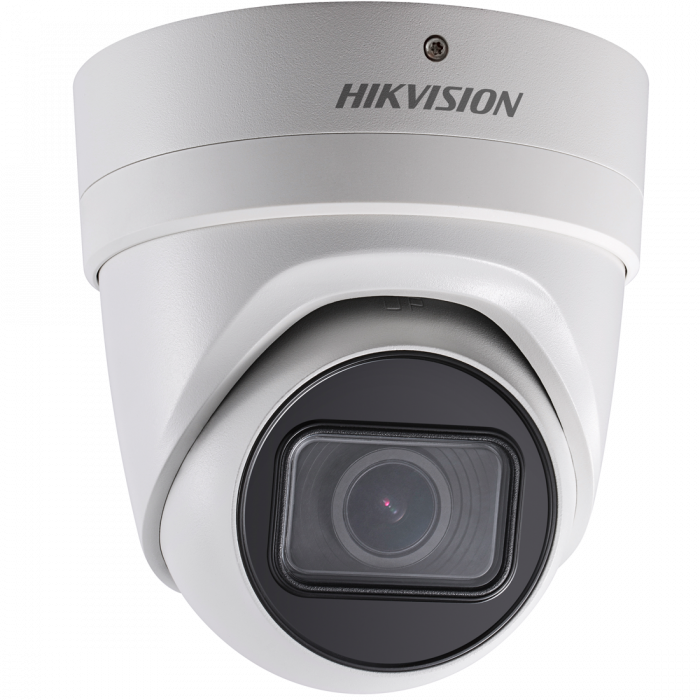

4 MP AcuSense EXIR Motorized Varifocal Turret Network Camera
















 High quality imaging with 4 MP resolution
 Motorized Varifocal lens for easy installation and
monitoring

 Excellent low-light performance with
powered-by-DarkFighter technology

 Focusing on human and vehicle classification based on
deep learning

 Clear imaging against strong back light due to 120 dB WDR
technology

 Efficient H.265+ compression technology
 Water and dust resistant IP66 and vandal proof IK10





 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Day & Night ICR Cut
Slow Shutter Yes
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
P/N P/N
Wide Dynamic Range 120 dB
Power-off Memory Yes
Lens
Lens Type & FOV
2.8 to 12 mm, horizontal FOV 108° to 32.8°, vertical FOV 56° to 18.5°, diagonal FOV
131° to 37.8°
Aperture F1.4
Lens Mount Ø14
Aperture Type Fixed
Focus Auto
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Smart Supplement Light Yes
Supplement Light IR
Video
Max. Resolution 2592 x 1944
Main Stream
50Hz: 20 fps (2592 x 1944)
25 fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (2592 x 1944)
30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type BaseLine Profile / Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes



Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192
Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
SNR ≥ 52 dB
Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC @500 mA)
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp,
input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm
connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω,
interface type: non-equilibrium
On-board Storage Built-in micro SD slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)
Smart Event Scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection



General
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and
Current
12 VDC, 0.92 A, max. 11 W
PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22A, max. 12.5 W
Power Interface Two-core terminal block
Material Metal
Camera Dimension Ø135.8 x 145.5 mm (Ø5.4" x 5.8")
Package Dimension 170 x 170 x 205 mm (6.7" x 6.7" x 8.1")
Camera Weight Approx. 1160 g (2.6 lb.)
With Package Weight Approx. 1515 g (3.3 lb.)
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger
capture, send email, audible warning, trigger alarm output, trigger alarm input
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
Firmware Version V5.5.135
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013), IK10(IEC 62262:2002)







 Available Model
DS-2CD2H46G2-IZS (2.8 to 12 mm)




 Dimension



 Accessory
 Optional
DS-1273ZJ-135
Wall Mount
