DS-2CD2H25FWD-IZS(2.8-12mm)

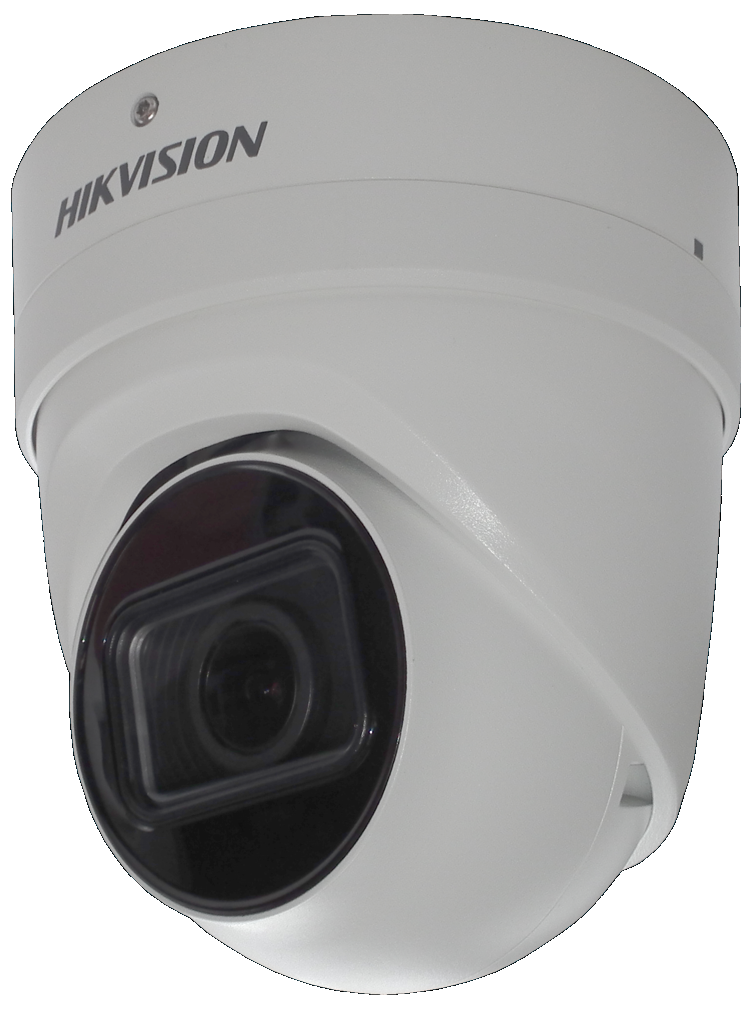

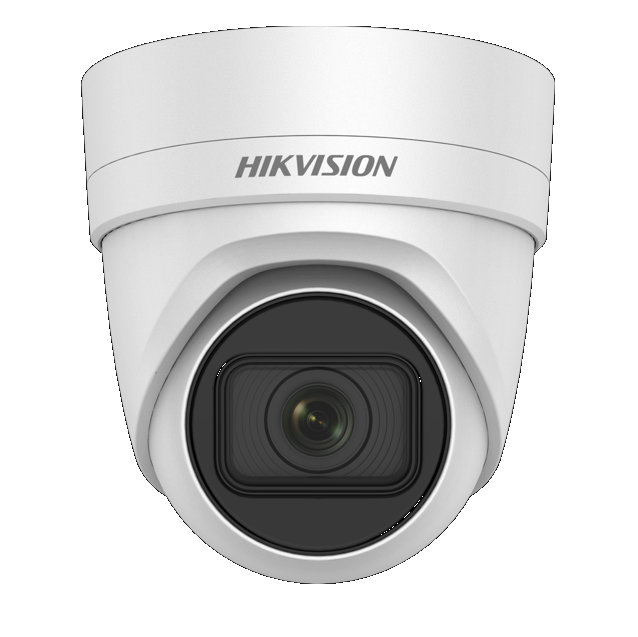

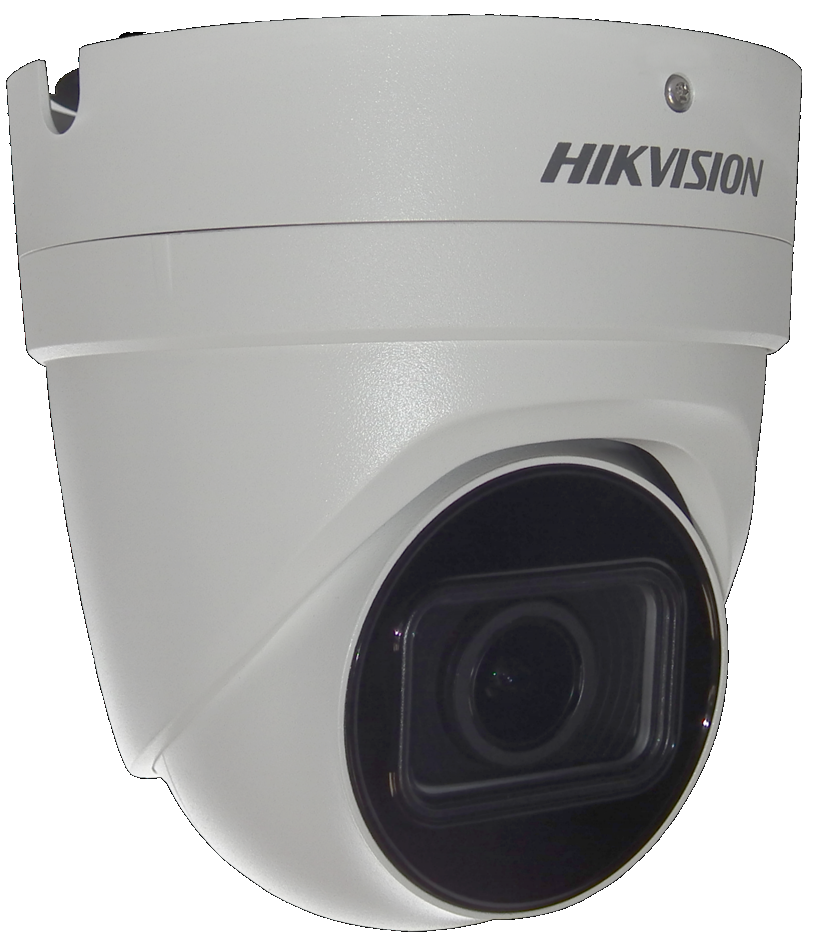

DS-2CD2H25FWD-IZS  2 MP Ultra-Low Light Network Turret Camera  * BLC/3D DNR/ROI  * Smart encoding: Support low bit rate, low  latency  * 4 behavior analyses and face detection    * 1/2.8" Progressive Scan CMOS  * 1920 x 1080 resolution  * Ultra-low light  * H.265, H.265+  * 120dB WDR  * IP67, IK10      Key Features          Specifications  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination  Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal length 2.8 to 12 mm  Aperture F1.4  FOV  Horizontal field of view: 105° to 35°  Vertical field of view: 56° to 20°  Diagonal field of view: 126° to 40.5°  Lens Mount Φ  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265+/H.265/H.264+/H.264  Sub stream: H.265+/H.265/H.264+/H.264/MJPEG  Third stream: H.265+/H.265/H.264+/H.264

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2H25FWD-IZS
2 MP Ultra-Low Light Network Turret Camera
* BLC/3D DNR/ROI
* Smart encoding: Support low bit rate, low
latency
* 4 behavior analyses and face detection

* 1/2.8" Progressive Scan CMOS
* 1920 x 1080 resolution
* Ultra-low light
* H.265, H.265+
* 120dB WDR
* IP67, IK10


Key Features




Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8 to 12 mm
Aperture F1.4
FOV
Horizontal field of view: 105° to 35°
Vertical field of view: 56° to 20°
Diagonal field of view: 126° to 40.5°
Lens Mount Φ
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265+/H.265/H.264+/H.264/MJPEG
Third stream: H.265+/H.265/H.264+/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2
Audio Bit Rate 32 to 128kbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Face Detection Support
Region of Interest Support 1 fixed region for each stream
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280x720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser











Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error, Alarm input, Alarm output
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), CGI, ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (3.5 mm), single track
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p composite output (75 Ω/BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 encoding supports
Reset Button Support
Audio
Environment Noise Filtering Support
Audio Sampling Rate 16 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af)
Terminal block for DC input
Power Consumption and
Current
12 VDC, 0.85A, max. 10W
PoE (802.3af, 37V to 57V), 0.31 A to 0.20 A, max. 11.5W
Protection Level
IP67, IK10
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Metal
Dimensions Φ 135.8 mm x 145.5 mm (Φ 5.35" x 5.73")
Weight
With Package: Approx. 1220 g (2.69 lb.)
Camera: Approx. 1060 g (2.34 lb.)






Φ135.8 mm
(5.35")
145.5 mm
(5.73")
46 mm (1.81")
35 mm (1.38")
83.5 mm
(3.29")
Φ 36 mm
(1.42")
Φ 4.5 mm
(0.18")







DS-1473ZJ-135
Wall Mount
DS-1471ZJ-135
Pendant Mount
DS-1281ZJ-DM23
Inclined Ceiling Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount
DS-1473ZJ-135B
Wall Mount
with Junction Box




Accessories
Dimensions
Available Model:
DS-2CD2H25FWD-IZS

05040620170704
