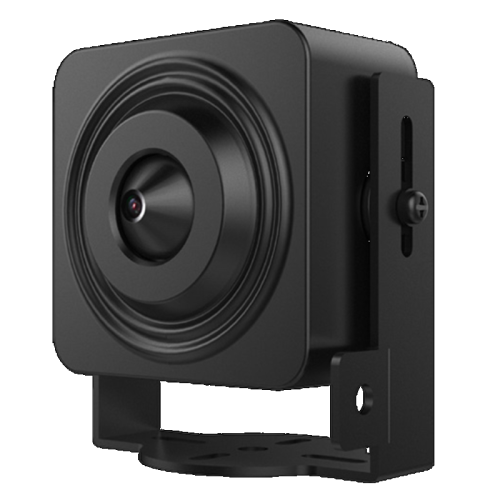

DS-2CD2D14WD

©2006–2014byHIKVISION.Allrightsreserved.  1  DS-2CD2D14WD/M    KeyFeatures  Upto1.0megapixel(1280x720@30fps)resolution  Standardvideocompressionwithhighcompressionratio,ROI(regionofinterest)encoding  100dBWideDynamicRange,suitableforstrongbacklightenvironment  ProgressivescanCMOS  IRcutfilterwithautoswitch  3DDigitalNoiseReduction  Supportdualstream,andthesub-streamformobilesurveillance  SupportRotateMode,BacklightCompensationandAuto-electronicshutter,etc  Minidesign  Otherfunctions:heartbeat,mirror,watermark,etc  Supportintrusiondetectionandlinecrossingdetection  SupportVCA,whichiscompatiblewithNVRforthesecondtimeofvideosearchingandanalysing  ApplicationScenarios:  Itissuitableforlift,ATMorvechilewhereneedhiddensurveillance.  Specifications:  Model  parameters  DS-2CD2D14WD/M  1.0MegapixelCMOSWDRMiniNetworkCamera  Camera  ImageSensor1/4"ProgressiveScanCMOS  Min.Illumination  0.01Lux@(F1.2,AGCON),0LuxwithIR  0.028Lux@(F2.0,AGCON),0LuxwithIR  ShutterSpeed1/3sto1/100,000s  Lens  2.8mm@F2.0,Angleofview:67.3°;  4mm@F2.0,Angleofview:53°  LensMountM12    ©2006–2014byHIKVISION.Allrightsreserved.  2  Day&NightIRcutfilterwithautoswitch  WideDynamicRange100dB  Di...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006–2014byHIKVISION.Allrightsreserved.
1
DS-2CD2D14WD/M

KeyFeatures
Upto1.0megapixel(1280x720@30fps)resolution
Standardvideocompressionwithhighcompressionratio,ROI(regionofinterest)encoding
100dBWideDynamicRange,suitableforstrongbacklightenvironment
ProgressivescanCMOS
IRcutfilterwithautoswitch
3DDigitalNoiseReduction
Supportdualstream,andthesub-streamformobilesurveillance
SupportRotateMode,BacklightCompensationandAuto-electronicshutter,etc
Minidesign
Otherfunctions:heartbeat,mirror,watermark,etc
Supportintrusiondetectionandlinecrossingdetection
SupportVCA,whichiscompatiblewithNVRforthesecondtimeofvideosearchingandanalysing
ApplicationScenarios:
Itissuitableforlift,ATMorvechilewhereneedhiddensurveillance.
Specifications:
Model
parameters
DS-2CD2D14WD/M
1.0MegapixelCMOSWDRMiniNetworkCamera
Camera
ImageSensor1/4"ProgressiveScanCMOS
Min.Illumination
0.01Lux@(F1.2,AGCON),0LuxwithIR
0.028Lux@(F2.0,AGCON),0LuxwithIR
ShutterSpeed1/3sto1/100,000s
Lens
2.8mm@F2.0,Angleofview:67.3°;
4mm@F2.0,Angleofview:53°
LensMountM12

©2006–2014byHIKVISION.Allrightsreserved.
2
Day&NightIRcutfilterwithautoswitch
WideDynamicRange100dB
DigitalNoise
Reduction
3DDNR
CompressionStandard
VideoCompressionH.264/MJPEG
H.264encodinglevelMainProfile
VideoBitRate32Kbps~8Mbps
Max.Resolution1280x720
FrameRate
50Hz:25fps(1280x720),25fps(704x576),25fps(640x480)
60Hz:30fps(1280x720),30fps(704x576),30fps(640x480)
ImageSettingsSaturation,Brightness,Contrastadjustablebyclientsoftwareorwebbrowser
Backlight
compensation
Yes,zoneoptional
ROISupport
Network
NetworkStorageNAS(SupportNFS,SMB/CIFS)
AlarmTrigger
Motiondetection,Dynamicanalysis,Tamperingalarm,Networkdisconnect,IPaddress
conflict,Storageexception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-keyreset,Flash-prevention,dualstream,heartbeat,mirror,passwordprotection,
privacymask,watermark,IPaddressfiltering,Anonymousaccess
StandardONVIF,PSIA,CGI,ISAPI
Interface
Communication
Interface
1RJ4510M/100MEthernetinterface
General
OperatingConditions
-30°C–60°C(-22°F–140°F)
Humidity95%orless(non-condensing)
PowerSupply12VDC±10%
PowerConsumption3WMAX
Dimensions(mm)37.3x41.4x24.3
Weight55g(0.12lbs)

©2006–2014byHIKVISION.Allrightsreserved.
3
OrderModels
DS-2CD2D14WD/M
Dimensions
