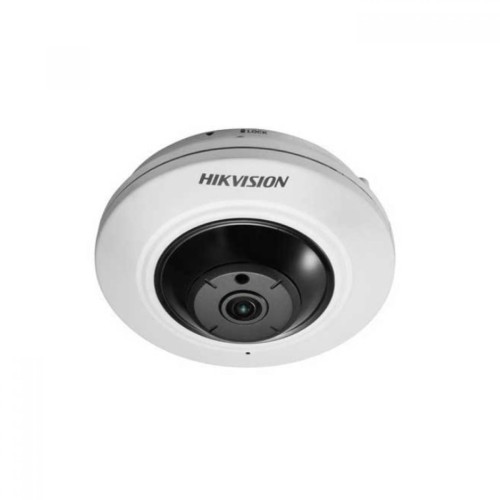

DS-2CD2942F-IS(1.6mm)

www.hikvision.com    DS-2CD2942 F-(I)(S)  4MP Mini Fisheye Camera  • 2464x1520 resolution  • Compact design  • Support on-board storage  • IR optional  • Audio/Alarm IO optional  DS-2CD2942F  DS-2CD2942F-I  DS-2CD2942F-IS  DS-2CD1694ZJ  Wall mount    DS-2CD2942F-(I)(S)  Camera  Image sensor 1/3” Progressive Scan CMOS  Min. illumination  Color: 0.01lux @(F1.2, AGC ON)  B/W: 0.001lux @(F1.2, AGC ON)  0 lux with IR  Shutter Speed 1/25s to 1/100,000s  Lens  1.6mm, F1.6  Angle of view: 186°(horizontal), 106°(vertical)  Lens mount M12  Day & night Electronic  Compression Standard  Video compression H.264 / MJPEG  H.264 Type Baseline Profile...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

DS-2CD2942 F-(I)(S)
4MP Mini Fisheye Camera
• 2464x1520 resolution
• Compact design
• Support on-board storage
• IR optional
• Audio/Alarm IO optional
DS-2CD2942F
DS-2CD2942F-I
DS-2CD2942F-IS
DS-2CD1694ZJ
Wall mount

DS-2CD2942F-(I)(S)
Camera
Image sensor 1/3” Progressive Scan CMOS
Min. illumination
Color: 0.01lux @(F1.2, AGC ON)
B/W: 0.001lux @(F1.2, AGC ON)
0 lux with IR
Shutter Speed 1/25s to 1/100,000s
Lens
1.6mm, F1.6
Angle of view: 186°(horizontal), 106°(vertical)
Lens mount M12
Day & night Electronic
Compression Standard
Video compression H.264 / MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Max. Image Resolution 2560 x 1440
Frame rate
50Hz: 12.5fps (2560 x 1440), 25fps(1920x1080, 1280x720)
60Hz: 15fps (2560 x 1440), 30fps(1920x1080, 1280x720)
Digital Noise Reduction 3D DNR
Image Setting Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance
Day/Night Switch Auto/ Scheduled/ Alarm Trigger
Network
Network storage NAS
Alarm Trigger
Line Crossing, Intrusion detection, Motion detection, Dynamic analysis, Tampering alarm, Network
disconnect, IP address conflict, Storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Security PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Standard User Authentication, Watermark, IP address filtering, Anonymous access
Interface
Communication Interface 1 RJ45 10M/100M Ethernet interface 1 RS485 interface(-S)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
General
Operating conditions 10 °C – 40 °C (14 °F – 104 °F) Humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)
Power consumption Max. 5.55W
Mount Type Ceiling mounting, Wall mounting, Table mounting
Software Dewarping By web component or client
Dimensions ø119.9 x 41.2
Weight 600g
Key features
Dimensions
Available models
Accessories
1.0
Megapixe l
