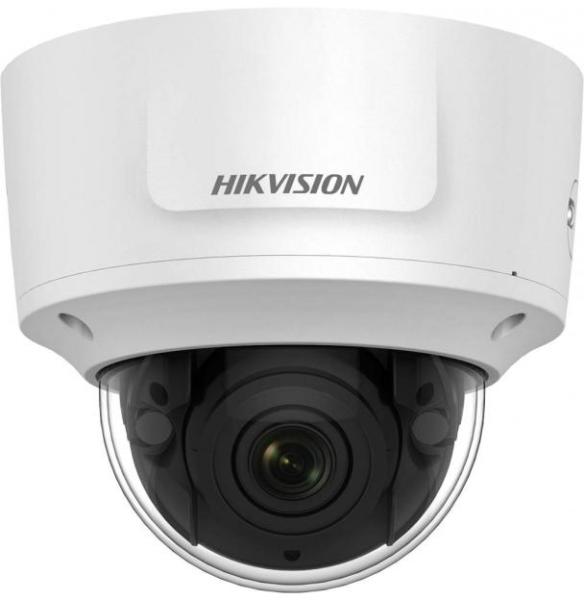

DS-2CD2765FWD-IZS(2.8-12mm)

Availability: 0
Price: €472.89 472.89
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311307338

Description

* BLC/3D DNR/ROI  * Smart encoding: Support low bit rate, low  latency  * 4 behavior analyses and face detection  * Color: 0.008 Lux @ (F1.2, AGC ON), 0.011  Lux @ (F1.4, AGC ON)  DS-2CD2765FWD-IZS  6 MP IR Varifocal Dome Network Camera    * 1/2.4" Progressive Scan CMOS  * 3072 x 2048 @20fps  * H.265, H.265+  * 120dB WDR  * IP67, IK10  * IR range: Up to 30 m  * Powered by Darkfighter        Key Features          Specifications  Camera  Image Sensor 1/2.4" Progressive Scan CMOS  Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal length 2.8 to 12 mm  Aperture F1.4  Focus Auto  FOV  Horizontal field of view: 114° to 34°  Vertical field of view: 71° to 23°  Diagonal field of view: 154° to 41°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

* BLC/3D DNR/ROI
* Smart encoding: Support low bit rate, low
latency
* 4 behavior analyses and face detection
* Color: 0.008 Lux @ (F1.2, AGC ON), 0.011
Lux @ (F1.4, AGC ON)
DS-2CD2765FWD-IZS
6 MP IR Varifocal Dome Network Camera

* 1/2.4" Progressive Scan CMOS
* 3072 x 2048 @20fps
* H.265, H.265+
* 120dB WDR
* IP67, IK10
* IR range: Up to 30 m
* Powered by Darkfighter



Key Features




Specifications
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal length 2.8 to 12 mm
Aperture F1.4
Focus Auto
FOV
Horizontal field of view: 114° to 34°
Vertical field of view: 71° to 23°
Diagonal field of view: 154° to 41°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR






Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
* Note: When the main stream resolution is 2944 x 1656 and above, max frame rate is 20 fps for all streams.
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p composite output (75 Ω/BNC) (For adjustment only)
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.9A, max. 10.5W
PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Protection Level IP67, IK10
Material Front cover: metal, bottom base: metal, bubble: plastic
Dimensions Camera: Φ 153.4 x 133.1 mm (Φ 6" x 5.2")
Weight
Camera: 1300 g (2.9 lb.)
With package: 1500 g (3.3 lb.)
Available Model:
DS-2CD2765FWD-IZS (2.8 to 12 mm)




Unit: mm(Inch)
100.5(4")
133
.1
(5
.2
")
31.5(1.2")
83
.5
(3
.3
")
46(1.8")
Φ4.5(0.2")
Φ153.4(6")
Φ45(1.8")







DS-1471ZJ-155
Pendant Mount
DS-1473ZJ-155
Wall Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount


DS-1227ZJ-DM37
In-ceiling Mount



05056120181015

Dimensions
Accessories
