DS-2CD2763G0-IZS(2.8-12mm)

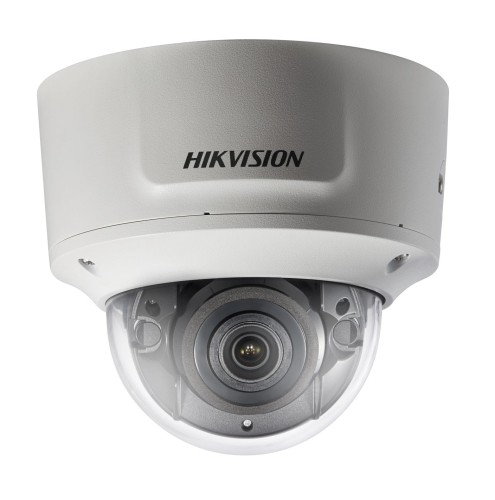

DS-2CD2763G0-IZS  6 MP IR VF Dome Network Camera  * BLC/3D DNR/ROI  * IP67, IK10  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    * 1/2.9" Progressive Scan CMOS  * 3072 x 2048@20 fps  * 2.8 to 12 mm varifocal lens  * Color: 0.01 Lux @ (F1.2, AGC ON), 0.018  Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR    Key Features          Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Aperture F1.6  Focus Auto  FOV  Horizontal field of view: 88° to 27°  Vertical field of view: 56° to 18°  Diagonal field of view: 110° to 33°  Lens Mount Φ  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/ H.264  Sub-stream: H.265/H.264/MJPEG  ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2763G0-IZS
6 MP IR VF Dome Network Camera
* BLC/3D DNR/ROI
* IP67, IK10
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

* 1/2.9" Progressive Scan CMOS
* 3072 x 2048@20 fps
* 2.8 to 12 mm varifocal lens
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.018
Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR

Key Features




Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 88° to 27°
Vertical field of view: 56° to 18°
Diagonal field of view: 110° to 33°
Lens Mount Φ
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)







Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output 1Vp-p composite output (75 Ω/BNC) (For adjustment only)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af)
Terminal block for DC input
Power Consumption and
Current
12 VDC, 0.8A, max. 10W
PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
Protection Level IP67, IK10
Material Metal
Dimensions Φ153.4 x 133.1 mm (Φ6" x 5.2")
Weight Camera: 1287 g (2.8 lb.)
Available Model:
DS-2CD2763G0-IZS(2.8 to 12 mm)



1
3
3
.
1

m
m

(
5
.
2
"
)
Φ153.4 mm
(6")
82.5 mm (3.3")
1
1
8
.
8

m
m

(
4
.
7
"
)
8
3.
5

m
m

(
3
.
3
"
)
31.5 mm (1.2")
Φ
1
4
0

m
m

(
5
.
5
"
)
46 mm (1.8")
Φ
4
.
5
m
m

(
0
.
2
"
)
Φ
4
5
m
m

(
1
.
8
"
)






DS-1471ZJ-155
Pendant Mount
DS-1473ZJ-155
Wall Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount






Accessories
Dimensions
