DS-2CD2720F-I(2.8-12mm)

Availability: 0

Price: €224.14 224.14

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300804280

ask about product or pricing

Description

Warning! Product withdrawn from production!

Replacement product: DS-2CD2720F-I(2.8-12mm)(D)

Replacement product code: 300818344

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

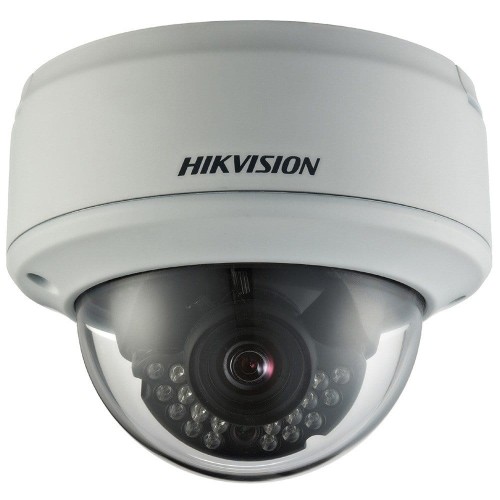

DS-2CD2720F-IS
2.0MP 1/2.7" CMOS ICR Dome Network Camera

Key Features
 Up to 2.0 megapixel (1920 x 1080) high
resolution
 Built-in Micro SD/SDHC/SDXC card slot, up to
128 GB
 Great performance and long lifespan Infrared
LED, Approx. 20 to 30 meters IR range
 IR cut filter with auto switch
 DC12V & PoE
 The bit rate mode: CBR and VBR
 Wide Dynamic Range
 3D Digital Noise Reduction
 Backlight Compensation
 Auto Electronic Shutter
 Language: Portuguese, English and Chinese
 IP67 weather-proof protection
 IK10 vandal-proof protection
 Mobile Monitoring via Hik-Connect or
iVMS-4500

Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination
0.05Lux @ (F1.2, AGC ON) in color mode and 0.01Lux @ (F1.2, AGC ON) in black and white, 0 Lux with
IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.7-12mm @ F1.4, horizontal field of view: 104° to 24°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
DNR 3D DNR
White balance Automatic/Manual
Wide Dynamic Range Wide Dynamic Range
3-Axis Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Compression Standard

Video Compression H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Dual Streams Support
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps (1920 x 1080,1280 x 1024,1280 x 960,1280 x 720)
60Hz: 30fps (1920 x 1080,1280 x 1024, 1280 x 960,1280 x 720)

Sub Stream
50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 240), 30 fps (640 x 480), 30fps(704 x 480)
Image Settings Saturation, Brightness, Contrast, etc., adjustable by client software or web browser
Backlight Compensation Support, zone optional
Region of Interest Support one customized region for each stream
Network
Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS)
Detection Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis
Alarm Trigger Video Tempering Detection, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error
Protocols
IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL, PPPoE, SNMP, ARP, filter IP
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
Anti-Flicker, Mirror, Password Protection, Privacy Mask, Watermark, Heartbeat, AGC, log access and 10
simultaneous access
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port, base T
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB

Unit: mm

General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Warranty The device has 36 months of the warranty
Power Consumption Max. 5.5 W with IR ON
Max. 9W with pan and tilt
IR Range Approx. 20 to 30 meters with Smart IR
Protection Level IP67, IK10
Dimensions Φ141 x 99.9 mm (5.55” x 3.94”)
Weight 800g (1.76 lbs)
Dimension
Order Models
DS-2CD2720F-IZ, DS-2CD2720-IZS
-S: Audio/Alarm IO

Wall mount
DS-1273ZJ-135
Pendant mount
DS-1271ZJ-135

Camera Accessories
050400160531
