DS-2CD2712F-I(2.8-12mm)

www.hikvision.com  Key features  Dimensions  Accessories    DS-2CD2712F-I(S) 1.3MP VF IR Dome Network Camera  t 1.3 megapixel (1280 x 960) resolution  t HD real-time video  t IR LEDs: up to 20m  t DWDR & 3D DNR & BLC  t Support on-board storage (up to 64zGB)  t (-S) Audio I/O, Alarm I/O  t IP66  t Vandal-proof    DS-2CD2712F-I (S)  Camera  Image sensor1/3p progressive scan CMOS  Min. illumination  0.01 lux@F1.2, AGC on  0.014 lux@F1.4, AGC on  0 lux with IR  Shutter time1/25s (1/30s) ~ 1/100,000s  Lens2.8 ~ 12mm @ F1.4, Angle of view: 80° ~ 28.7°  Angle adjustmentPan: 0° ~ 355°, tile: 0° ~ 75°, rotation: 0° ~ 355°  Lens mount14  Day & nightICR  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Backlight compensationYes, zone congurable  Compression standard  Video compression H.264 / MJPEG  H.264 compression proleMain prole  Video bit rate32 Kbps ~ 16 Mbps  Audio compression (-S)G.711 / G.726  Audio bit rate (-S)64Kbps (zG.711) / 16Kbps (zG.726)  Image  Max. image resolution1280 x 960  Frame rate  50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)  60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com
Key features
Dimensions
Accessories

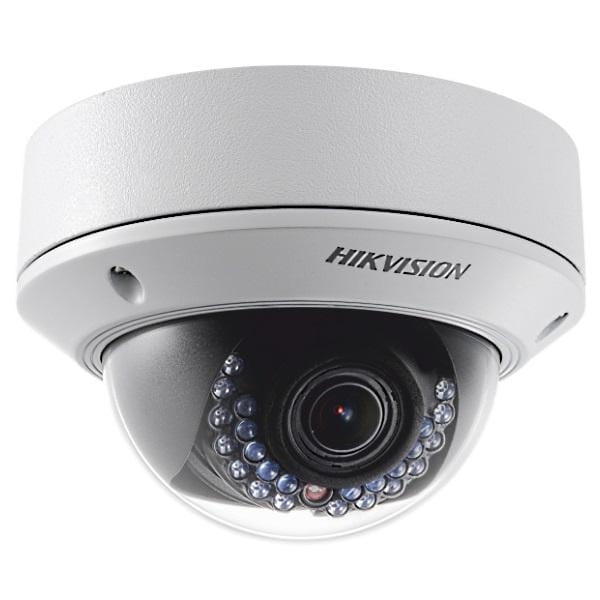

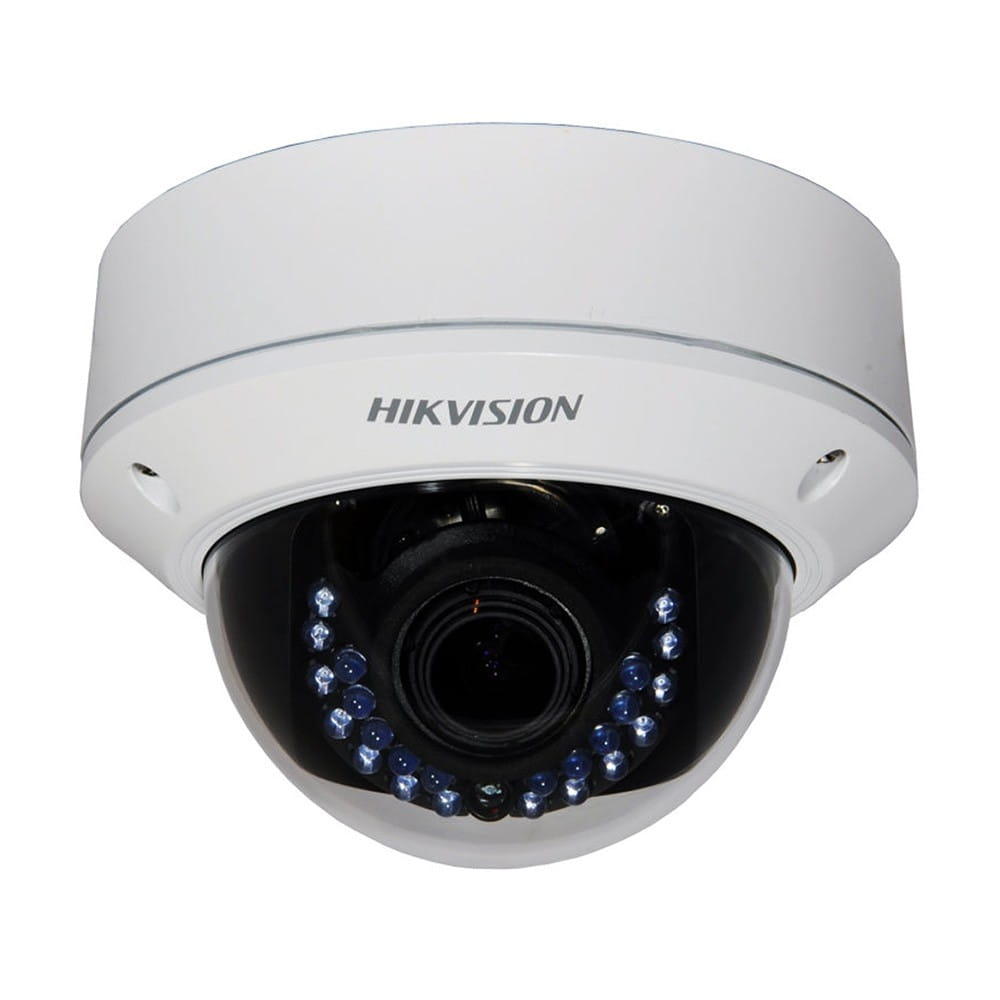

DS-2CD2712F-I(S) 1.3MP VF IR Dome Network Camera
t 1.3 megapixel (1280 x 960) resolution
t HD real-time video
t IR LEDs: up to 20m
t DWDR & 3D DNR & BLC
t Support on-board storage (up to 64zGB)
t (-S) Audio I/O, Alarm I/O
t IP66
t Vandal-proof

DS-2CD2712F-I (S)
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination
0.01 lux@F1.2, AGC on
0.014 lux@F1.4, AGC on
0 lux with IR
Shutter time1/25s (1/30s) ~ 1/100,000s
Lens2.8 ~ 12mm @ F1.4, Angle of view: 80° ~ 28.7°
Angle adjustmentPan: 0° ~ 355°, tile: 0° ~ 75°, rotation: 0° ~ 355°
Lens mount14
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone congurable
Compression standard
Video compression H.264 / MJPEG
H.264 compression proleMain prole
Video bit rate32 Kbps ~ 16 Mbps
Audio compression (-S)G.711 / G.726
Audio bit rate (-S)64Kbps (zG.711) / 16Kbps (zG.726)
Max. image resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS ( iSCSI optional)
Alarm trigger
Motion detection, tampering alarm, network disconnect, IP address conict, storage exception,
storage error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibilityONVIF, PSIA, CGI
General functionalitiesUser authentication, dual stream, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
On-board storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Operating conditions-30 °C ~ 60 °C (-22 °zF ~ 140 °zF), humidity 95% or less (non-condensing)
Power supplyDC12V ± 10%, PoE (802.3af)
Power consumptionMax. 5.5W (max. 7W with ICR on)
Impact protectionIEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection levelIP66
IR rangeUp to 20m
Dimensions 140 x 99.9 mm ( 5.51p x 3.94p)
Weight1000g
Available models
DS-2CD2712F-I, DS-2CD2712F-IS
* -S: 1-ch audio I/O interface and 1-ch alarm I/O interface.
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

HD Video

CMOS
CMOS
1/3”

IR

Megapixel
MP Camera
1.3

3D

WDR
DIGITAL

Vari-Focal

Alarm I/O

DS-1273ZJ-110
Wall Mount
Metallic Bracket
DS-1273ZJ-110B
Wall Mount
Metallic Bracket
with junction box
