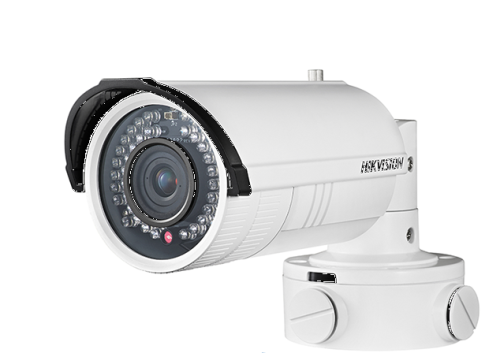

DS-2CD2652F-IZS(2.8-12mm)

©2006–2014byHIKVISION.Allrightsreserved.  1  DS-2CD2652F-I(S)(Z)    KeyFeatures  Upto5megapixel2560x1920@20fpsresolution  Standardvideocompressionwithhighcompressionratio,ROI(regionofinterest)encoding  ProgressivescanCMOS,capturemotionvideowithoutincisedmargin  Supportdualstream,andthesub-streamformobilesurveillance  High-performanceandlongservicelifeInfraredLED,Approx.20to30metersIRrange  Built-inMicroSD/SDHC/SDXCcardslot,upto128GB  IRcutfilterwithautoswitch  Vari-focus  Motorizedlens(-Z)  PoE(PoweroverEthernet)  3DDNR  IngressProtectionlevel:IP66  Auto-iris,electronicshutterfordifferentsurveillanceenvironments  Otherfunctions:resetbutton,heartbeat,mirror,etc  3-axisadjustment  SupportVCA,whichiscompatiblewithNVRforthesecondtimeofvideosearchingandanalysing  Specification  Model  Parameter  DS-2CD2652F-I(S)(Z)  5MegapixelBulletNetworkCamera  Camera  ImageSensor1/3"ProgressiveScanCMOS  Min.Illumination  0.01Lux@(F1.2,AGCON),0LuxwithIR  0.014Lux@(F1.4,AGCON),0LuxwithIR  ShutterSpeed1/3sto1/10,000s  Lens  2.8-12mm@F1.4  -Z:motorizedlens  LensMountΦ14    ©2006–2014byHIKVISION.Allrightsreserved.  2  Day&NightIRcutfilterwithautoswitch  DigitalNoise

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006–2014byHIKVISION.Allrightsreserved.
1
DS-2CD2652F-I(S)(Z)

KeyFeatures
Upto5megapixel2560x1920@20fpsresolution
Standardvideocompressionwithhighcompressionratio,ROI(regionofinterest)encoding
ProgressivescanCMOS,capturemotionvideowithoutincisedmargin
Supportdualstream,andthesub-streamformobilesurveillance
High-performanceandlongservicelifeInfraredLED,Approx.20to30metersIRrange
Built-inMicroSD/SDHC/SDXCcardslot,upto128GB
IRcutfilterwithautoswitch
Vari-focus
Motorizedlens(-Z)
PoE(PoweroverEthernet)
3DDNR
IngressProtectionlevel:IP66
Auto-iris,electronicshutterfordifferentsurveillanceenvironments
Otherfunctions:resetbutton,heartbeat,mirror,etc
3-axisadjustment
SupportVCA,whichiscompatiblewithNVRforthesecondtimeofvideosearchingandanalysing
Specification
Model
Parameter
DS-2CD2652F-I(S)(Z)
5MegapixelBulletNetworkCamera
Camera
ImageSensor1/3"ProgressiveScanCMOS
Min.Illumination
0.01Lux@(F1.2,AGCON),0LuxwithIR
0.014Lux@(F1.4,AGCON),0LuxwithIR
ShutterSpeed1/3sto1/10,000s
Lens
2.8-12mm@F1.4
-Z:motorizedlens
LensMountΦ14

©2006–2014byHIKVISION.Allrightsreserved.
2
Day&NightIRcutfilterwithautoswitch
DigitalNoise
Reduction
3DDNR
WideDynamicRangeDWDR
CompressionStandard
VideoCompressionH.264/MJPEG
H.264Compression
Type
MainProfile
VideoBitRate256Kbps–16Mbps
Audio
Compression(-S)
G.711/G.722.1/G.726/MP2L2
AudioBitRate(-S)64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/
32-128Kbps(MP2L2)
DualStreamYes
Max.Resolution2560x1920
FrameRate
50Hz:20fps(2560x1920),25fps(2048x1536),25fps(1920x1080),
25fps(1280x720)
60Hz:20fps(2560x1920),30fps(2048x1536),30fps(1920x1080),
30fps(1280x720)
ImageSettings
Rotatemode,Saturation,Brightness,Contrastadjustablebyclient
softwareorwebbrowser
Backlight
compensation
Yes,zoneoptional
ROISupport
Network
NetworkStorageNAS(SupportNFS,SMB/CIFS)
AlarmTrigger
IntrusionDetection,LineCrossingdetection,Motiondetection,
Dynamicanalysis,Tamperingalarm,Networkdisconnect,IPaddress
conflict,Storageexception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security
One-keyreset,Flash-prevention,dualstream,heartbeat,mirror,
passwordprotection,privacymask,watermark,IPaddressfiltering,
Anonymousaccess
StandardONVIF,PSIA,CGI,ISAPI
Interface
Communication
Interface
1RJ4510M/100MEthernetinterface
On-boardstorageBuilt-inMicroSD/SDHC/SDXCcardslot,upto128GB
General

©2006–2014byHIKVISION.Allrightsreserved.
3
OperatingConditions
-30°C–60°C(-22°F–140°F)
Humidity95%orless(non-condensing)
PowerSupply
12VDC±10%
PoE(802.3af)
PowerConsumptionMax.5.5W(Max.7.5WwithIRcutfilteron)
IngressProtection
level
IP66
IRRange20~30meters
Dimensions95x105x258.6mm(3.74”x4.13”x10.18”)
Weight1200g
*“-S”seriessupport1-chI/O,1-chalarmI/O
OrderModels
DS-2CD2652F-I,DS-2CD2652F-IS,DS-2CD2652F-IZ,DS-2CD2652F-ISZ
Dimensions
Unit: mm
Accessories

VerticalpolemountJunctionbox
DS-1275ZJDS-1260ZJ
