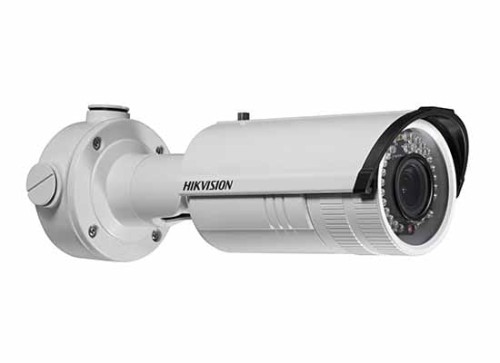

DS-2CD2632F-I(2.8-12mm)

Availability: 0
Price: €383.63 383.63
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300702466

Description

DS-2CD2620F-I (S) DS-2CD2632F-I (S)  Camera                        Key features  • 2.0MP / 3MP high resolution  • HD real-time video  • Vari-focal lens  Image sensor 1/3” Processor EXMOR CMOS TI DAVINCE Linux processor  Min. illumination 0,2 lux F1.2 Color, 0.01 lux F1.2 p&b, 0 lux with IR AGC / ATW Auto/Manual  Shutter time 1/3s ~ 1/100,000s  Lens 2.8 ~ 12 mm @F1.4, angle of view: 98.4° ~ 30.2° 2.8 - 2 mm @ F1.4,Angle of view: 91.2°-28.3°  Lens mount Φ14  Day & night ICR  Digital noise reduction 3D DNR  Wide dynamic range Digital WDR  Backlight  Compensation Yes, zone confi   Compression Standard  Video compression H.264 / MJPEG  H.264 codec profi Main profi  Bit rate 32 Kbps ~ 12 Mbps  Audio compression G.711 / G.722.1/ G.726 / MP2L2  Audio bit rate 64 Kbps (G.711) / 16Kbps (G.722.1)/ 16 Kbps (G.726) / 32-128 Kbps (MP2L2)   Image  Max. Image Resolution 1280 x 960 2048 x 1536  50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720), 25  • IR range: up to 30m  • DWDR & 3D DNR & BLC  • IP66    Frame rate  fps (704 x 576),  25 fps (640 x 480)  60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720), 30 ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2620F-I (S) DS-2CD2632F-I (S)
Camera











Key features
• 2.0MP / 3MP high resolution
• HD real-time video
• Vari-focal lens
Image sensor 1/3” Processor EXMOR CMOS TI DAVINCE Linux processor
Min. illumination 0,2 lux F1.2 Color, 0.01 lux F1.2 p&b, 0 lux with IR AGC / ATW Auto/Manual
Shutter time 1/3s ~ 1/100,000s
Lens 2.8 ~ 12 mm @F1.4, angle of view: 98.4° ~ 30.2° 2.8 - 2 mm @ F1.4,Angle of view: 91.2°-28.3°
Lens mount Φ14
Day & night ICR
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Backlight
Compensation Yes, zone confi
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profi Main profi
Bit rate 32 Kbps ~ 12 Mbps
Audio compression G.711 / G.722.1/ G.726 / MP2L2
Audio bit rate 64 Kbps (G.711) / 16Kbps (G.722.1)/ 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Max. Image Resolution 1280 x 960 2048 x 1536
50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720), 25
• IR range: up to 30m
• DWDR & 3D DNR & BLC
• IP66

Frame rate
fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720), 30
fps (704 x 576), 30 fps (640 x 480), 30fps
(704x480), 30fps (352x240) NTSC
50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080),
25fps (1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080),
30fps (1280 x 720) NTSC
• Onboard storage (up to 64GB)
• (-S) Audio I/O, Alarm I/O
Dimensions


Accessories
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web
browser
ROI Support
Network
Network storage NAS (Support NFS, SMB/CIFS)
Alarm trigger Line Crossing, Intrusion Detection, Motion detection, Tampering alarm, Storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility ONVIF, PSIA, CGI, ISAPI, IE, Chrome, Mozilla, IOS, Android, Windows Phone
General functionalities Flickerless, heartbeat, mirror, privacy mask, watermark, IP address filtering, Anonymous access, 10 Users
Interface
Communication
Interface
1 RJ45 10 M / 100 M Ethernet port / Bnc Connection
Onboard storage Built-in Micro SD / SDHC / SDXC card slot, up to 64 GB
General
Operating conditions -30 °C ~ 90 °C humidity 95% or less (non-condensing), Protection surge
Power supply 12 VDC ± 10% , PoE (802.3af)
Power consumption Max. 5.5W (7.5W with ICR on)
DS-1275ZJ
Vertical pole mount
DS-1260ZJ
Junction box Ingress protection level IP66
IR range Up to 30m, Db Los <50
Available models
DS-2CD2620F-I, DS-2CD2620F-IS
DS-2CD2632F-I, DS-2CD2632F-IS

* -S: 2-ch audio I/O interface, 2-ch alarm I/O interface
Dimensions 95x105x258.6 mm (3.74” x 4.13” x 10.18”)
Weight 1200g





DS-2CD2620F-I(S) (2.0MP)/DS-2CD2632F-I(S) (3MP)
VF IR Bullet Network Camera

1/3”
CMO
S

H.264

DIGITA
L
WDR

Po
eE





www.hikvision.com
