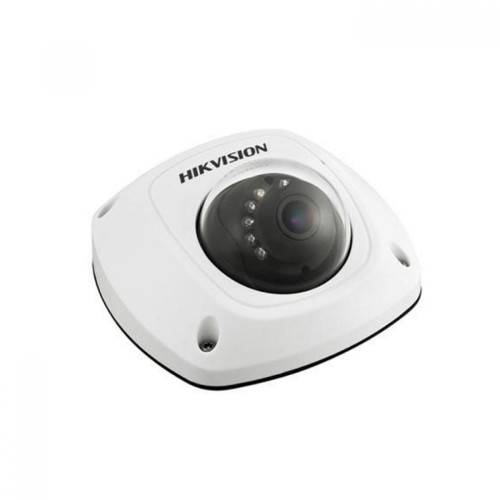

DS-2CD2542FWD-I(2.8mm)

Availability: 0

Price: €251.47 251.47

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300808146

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2542FWD-I (W)(S)
4MP WDR Mini Dome Network Camera

 Up to 4 megapixel high resolution
 Full HD1080p video
 Dual video streams
 2.8mm/4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 3-axis adjustment
 Support on-board storage, up to 64GB

 DC12V & PoE
 Support H.264+
 Up to 10m IR range
 IP66 weather-proof protection
 IK08 vandal-proof protection
 -S: Built-in microphone, Audio Output, Alarm IO
 -W: Built-in Wi-Fi
 Mobile Monitoring via EZVIZ P2P or iVMS-4500

Camera Accessories

Wall mount
DS-1272ZJ-120
Wall mount + Junction Box
DS-1272ZJ-120B
Pendant mount
DS-1271ZJ-120
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ

Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Angle of adjustment Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 256Kbps ~ 16 Mbps
Dual Streams Support
Audio Compression G.711/G.722.1/G.726/MP2L2 *only for –S models
Audio Bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) *only for –S models
Max. Resolution 2688x1520
Frame Rate
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface Built-in microphone and 1x audio output *only for –S models
Reset Yes

DS-2CD2542FWD-I (W)(S)
4MP WDR Mini Dome
Network Camera

Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Reception Sensitivity
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)

Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140°F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
Max. 9W with pan and tilt
IR Range Approx. 10 meters
Ingress Protection IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK08
Dimensions 99.3x96.7x52.8 mm
Weight 600 g (1.32 lbs)
Order Models
DS-2CD2542FWD-I, DS-2CD2542FWD-IS, DS-2CD2542FWD-IW, DS-2CD2542FWD-IWS
-S: Audio/Alarm IO, -W: Built-in Wi-Fi

DS-2CD2542FWD-I (W)(S)
4MP WDR Mini Dome
Network Camera

Dimensions
