DS-2CD2532F-I(4mm)

Key features    DS-2CD2532F-(I)(S) 3.0MP Mini Dome Network Camera  • Up to 3 megapixel (2048 x 1536) resolution  • Full HD1080p real-time video  • -I: IR LEDs (up to 10m)  • DWDR & 3D DNR & BLC  • Onboard storage (up to 64 GB)  • -S: Audio I/O, Alarm I/O  • IP66 protection  • Vandal-proof housing    DS-2CD2512F- (I) (S)  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.19lux @ F2.0, AGC on  0 lux with IR  Shutter time 1/30s ~ 1/100,000s  Lens  4mm@F2.0, angle of view: 75.8°  (2.8mm, 6mm optional)  Lens mount M12  Day & night ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key features

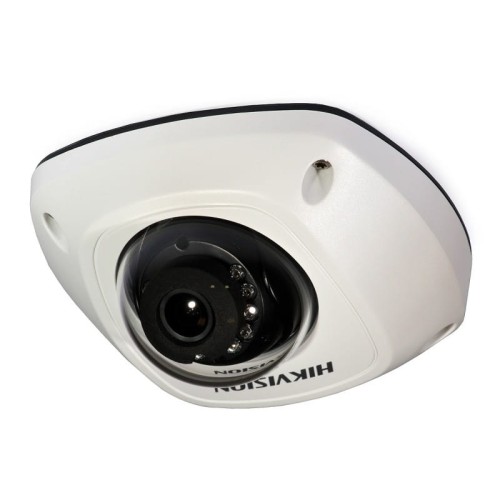

DS-2CD2532F-(I)(S) 3.0MP Mini Dome Network Camera
• Up to 3 megapixel (2048 x 1536) resolution
• Full HD1080p real-time video
• -I: IR LEDs (up to 10m)
• DWDR & 3D DNR & BLC
• Onboard storage (up to 64 GB)
• -S: Audio I/O, Alarm I/O
• IP66 protection
• Vandal-proof housing

DS-2CD2512F- (I) (S)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.19lux @ F2.0, AGC on
0 lux with IR
Shutter time 1/30s ~ 1/100,000s
Lens
4mm@F2.0, angle of view: 75.8°
(2.8mm, 6mm optional)
Lens mount M12
Day & night ICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensation

Compression standard
Video compression H.264 / MJPEG

Bit rate 32 Kbps ~ 16 Mbps
Max. image resolution2048 x 1536
Frame rate 60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS
Alarm trigger

storage error
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos
System compatibility ONVIF, PSIA, CGI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
On-board storage Built-in Micro SD card slot, up to 64 GB
General
Operating conditions-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power supply DC12V ± 10%, PoE (802.3af)
Power consumptionMax. 7W
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection levelIP66
IR range Up to 10m
Dimensions 99.9 x 97.5 x 46.5 mm (3.93” x 3.84” x 1.83”)
Weight 250g (0.55 lbs)
Available models
DS-2CD2532F-I, DS-2CD2532F-IS
* -S (special order): Audio I/O interface and Alarm I/O interface.
* -I: IR LEDs, up to 10m.
* Includes Single Gang Box adapter plate.

HD Video

CMOS
CMOS
1/3”

IR

Megapixel
MP Camer a
3.0

3D

WDR
DIGITA L

IP66

For more information: ww w .hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
DS-1272ZJ-120B
Wall mount
DS-1270ZJ-120
Pendant cap for 25x2
mini dome (thread
adapters included)

Accessories
