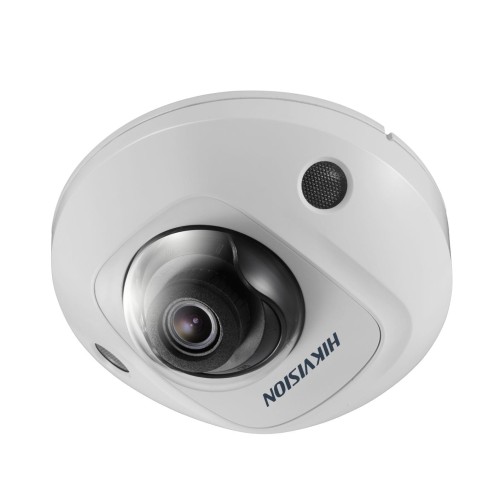

DS-2CD2522F-I(2.8mm)
Description
Key features Dimensions • 2MP / 3MP high resolution • HD real-time video • IR LEDs (up to 10m) • DWDR & 3D DNR & BLC • Onboard storage (up to 128GB) • -S: Built-in mic, audio out interface; alarm I/O • IP66 protection DS-2CD2522F-I (W)(S)DS-2CD2532F-I (W)(S) Camera Image sensor1/3” progressive scan CMOS Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07 lux @F1.2, AGC ON, 0 lux with IR Shutter time1/3s ~ 1/100,100s Lens 4mm @ F2.0 (2.8mm, 6mm optionalfl Angle of view: 106°(2.8mm) 85°(4mm) 52°(6mm) 4mm @ F2.0 (2.8mm, 6mm optionalfl 2048 x 1536: Angle of view: 86°(2.8mm) 70°(4mm) 43.3°(6mm) 1920 x 1080: Angle of view: 98.5°(2.8mm) 79°(4mm) 49°(6mm) Lens mountM12 Day & nightICR Adjustment angleHorizontal: ±30°, vertical: 0~80°, rotation: 0~360° Digital noise reduction3D DNR Wide dynamic rangeDigital WDR Backlight compensationYes, zone configurable Compression Standard Video compression H.264 / MJPEG H.264 codec profileMain profile Bit rate32 Kbps ~ 12 Mbps Audio compression (-S)G.711 / G.722.1 / G.726 / MP2L2 Audio bit rate (-S)64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) Image Max. Image Resolution192...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key features
Dimensions
• 2MP / 3MP high resolution
• HD real-time video
• IR LEDs (up to 10m)
• DWDR & 3D DNR & BLC
• Onboard storage (up to 128GB)
• -S: Built-in mic, audio out interface; alarm I/O
• IP66 protection
DS-2CD2522F-I (W)(S)DS-2CD2532F-I (W)(S)
Camera
Image sensor1/3” progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07 lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/3s ~ 1/100,100s
Lens
4mm @ F2.0 (2.8mm, 6mm optionalfl
Angle of view:
106°(2.8mm) 85°(4mm) 52°(6mm)
4mm @ F2.0 (2.8mm, 6mm optionalfl
2048 x 1536: Angle of view:
86°(2.8mm) 70°(4mm) 43.3°(6mm)
1920 x 1080: Angle of view:
98.5°(2.8mm) 79°(4mm) 49°(6mm)
Lens mountM12
Day & nightICR
Adjustment angleHorizontal: ±30°, vertical: 0~80°, rotation: 0~360°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone configurable
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profileMain profile
Bit rate32 Kbps ~ 12 Mbps
Audio compression (-S)G.711 / G.722.1 / G.726 / MP2L2
Audio bit rate (-S)64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution1920 x 10802048 x 1536
Frame rate
50Hz: 25fps (1920 x 1080) 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080) 30fps (1280 x 720)
50Hz: 20fps (2048 x 1536) 25fps (1920 x
1080) 25fps (1280 x 720)
60Hz: 20fps (2048 x 1536) 30fps (1920 x
1080) 30fps (1280 x 720)
Image settings
Saturation, brightness, sharpness, contrast, sharpeness adjustable through client software
or web browser
Network
Network storageNAS
Alarm trigger
Motion detection, line crossing detection, tampering alarm,
detection, intrusion detection
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
On-board storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Alarm interface-S: 1/1 alarm I/O
General
Operating conditions-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5W
Ingress protection levelIP66
Impact ProtectionIEC60068-275Eh, 20J; EN50102, up to IK08
IR rangeUp to 10m
Dimensions (mm)99.3x96.7x52.8mm
Weight600 g
WDR
DIGITAL
BLC
1/3
CMOS
H.264
PoE
Scan

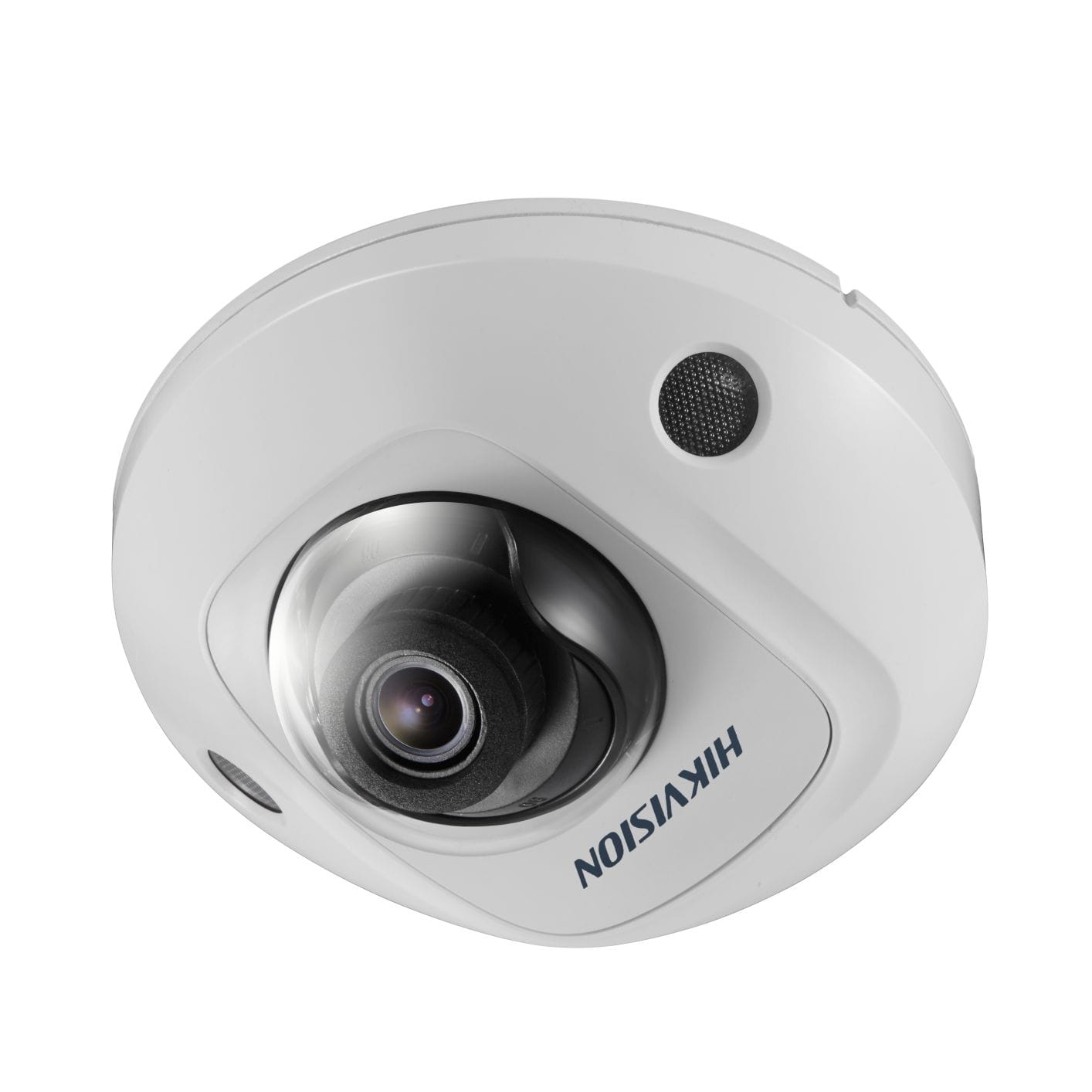

IR Mini Dome Network Camera
Available models
DS-2CD2522F-I, DS-2CD2522F-IW, DS-2CD2522F-IS
DS-2CD2532F-I, DS-2CD2522F-IW, DS-2CD2532F-IS
* 1.3MP model is also available -- DS-2CD2512F-I(W)(S)
DS-2CD2522F-I(W)(S) (2.0MP)
DS-2CD2532F-I(W)(S) (3.0MP)
• -W: Support Wifi function
DS-2CD2522F-IWS, DS-2CD2532F-IWS
