DS-2CD2510F(4mm)

www.hikvision.com  Key features  Dimensions  Accessories    DS-2CD2510F 1.3MP Mini Dome Network Camera    HD Video    CMOS  CMOS  1/3    Megapixel  MP Camera  1.3    3D    WDR  DIGITAL    IP66    t Up to 1.3 megapixel (1280 x 960) resolution  t HD real-time video  t DWDR & BLC  t 3D DNR  t Support on-board storage (up to 64zGB)  t IP66  t Vandal-proof    DS-2CD2510F  Camera  Image sensor1/3p progressive scan CMOS  Min. illumination  Color: 0.01 lux@F1.2, AGC On; 0.028lux@F2.0, AGC On  B/W: 0.001 lux@F1.2, AGC On; 0.0028lux@F2.0. AGC On  Shutter time1/3s ~ 1/100,000s  Lens  4mm@F2.0, angle of view: 73.1° (4mm)  (2.8mm, 6mm optional)  Lens mountM12  Day & nightElectronic  Adjustment anglePan: ±15°, tilt: 0~90°, rotation: ±15°  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Backlight compensationYes, zone congurable  Compression standard  Video compression H.264 / MJPEG  H.264 compression proleBaseline/ Main profle  Bit rate32 Kbps ~ 8 Mbps  Image  Max. image resolution1280 x 960  Frame rate  50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)  60Hz: 30fps (1280 x 960...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com
Key features
Dimensions
Accessories

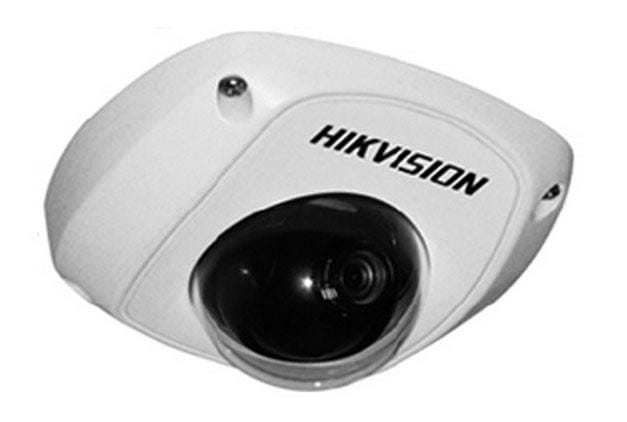

DS-2CD2510F 1.3MP Mini Dome Network Camera

HD Video

CMOS
CMOS
1/3

Megapixel
MP Camera
1.3

3D

WDR
DIGITAL

IP66

t Up to 1.3 megapixel (1280 x 960) resolution
t HD real-time video
t DWDR & BLC
t 3D DNR
t Support on-board storage (up to 64zGB)
t IP66
t Vandal-proof

DS-2CD2510F
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination
Color: 0.01 lux@F1.2, AGC On; 0.028lux@F2.0, AGC On
B/W: 0.001 lux@F1.2, AGC On; 0.0028lux@F2.0. AGC On
Shutter time1/3s ~ 1/100,000s
Lens
4mm@F2.0, angle of view: 73.1° (4mm)
(2.8mm, 6mm optional)
Lens mountM12
Day & nightElectronic
Adjustment anglePan: ±15°, tilt: 0~90°, rotation: ±15°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone congurable
Compression standard
Video compression H.264 / MJPEG
H.264 compression proleBaseline/ Main profle
Bit rate32 Kbps ~ 8 Mbps
Max. image resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480)
Image settings Rotate mode, saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS
Alarm trigger
Motion detection, tampering alarm, network disconnect, IP address conict, storage exception,
storage error, intrusion detection, line crossing detection
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
On-board storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Operating conditions-30 °C ~ 60 °C (-22 °zF ~ 140 °zF), humidity 95% or less (non-condensing)
Power supplyDC12V ± 10%, PoE (802.3af)
Power consumptionMax. 4W
Ingress protection levelIP66
Impact protectionIEC60068-2-75Eh, 20J; EN50102, up to IK10
Dimensions (mm)99.9 x 97.5 x 46.5
Weight400g
Available models
DS-2CD2510F

DS-1271ZJ-120
Pendant mount
DS-1272ZJ-120
Wall mount
