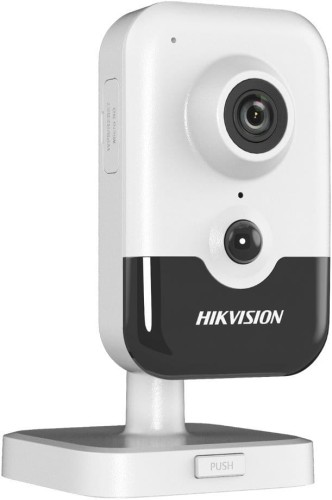

DS-2CD2443G2-I(2mm)

Availability: 101-500
Price: €192.82 192.82
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311316102

Description

DS-2CD2443G2-I  4 MP AcuSense Fixed Cube Network Camera                          Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 4 MP resolution   Clear imaging against strong backlight due to 120 dB WDR  technology   Efficient H.265+ compression technology   Focus on human and vehicle classification based on deep  learning   Provide real-time security via built-in two-way audio   Detect human body through passive infrared which is  sensitive to body temperature (PIR)             Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Max. Resolution 2688 x 1520  Min. Illumination  2 mm: color: 0.008 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR  2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° <...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2443G2-I
4 MP AcuSense Fixed Cube Network Camera












Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 4 MP resolution
 Clear imaging against strong backlight due to 120 dB WDR
technology
 Efficient H.265+ compression technology
 Focus on human and vehicle classification based on deep
learning
 Provide real-time security via built-in two-way audio
 Detect human body through passive infrared which is
sensitive to body temperature (PIR)





 Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 x 1520
Min. Illumination
2 mm: color: 0.008 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°
2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
Aperture
2 mm: F2.25
2.8 mm: F1.6
4 mm: F1.6
Lens Mount M12
DORI
DORI
2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m
2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m
4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m
Illuminator
IR Range Up to 10 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Main Stream
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC



Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
PIR
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range Up to 8 m
Interface
Built-in Microphone Yes
Built-in Speaker Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email, audible warning
Face Detection Yes
Deep Learning Function
Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug
PoE: (802.3af, Class 3, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W



Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via email, pixelounter
Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Camera Material Plastic
Camera Dimension
2 mm: 102.9 mm x 65.2 mm x 28.8 mm (4.1" x 2.6" x 1.1")
2.8 mm and 4 mm: 102.9 mm x 65.2 mm x 32.6 mm (4.1" x 2.6" x 1.3")
Package Dimension 150 mm x 125 mm x 99 mm (5.9" x 4.9" x 3.9")
Camera Weight Approx. 120 g (0.3 lb.)
With Package Weight Approx. 430 g (0.9 lb.)
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)


 Available Model
DS-2CD2443G2-I (2/2.8/4 mm)




 Dimension
