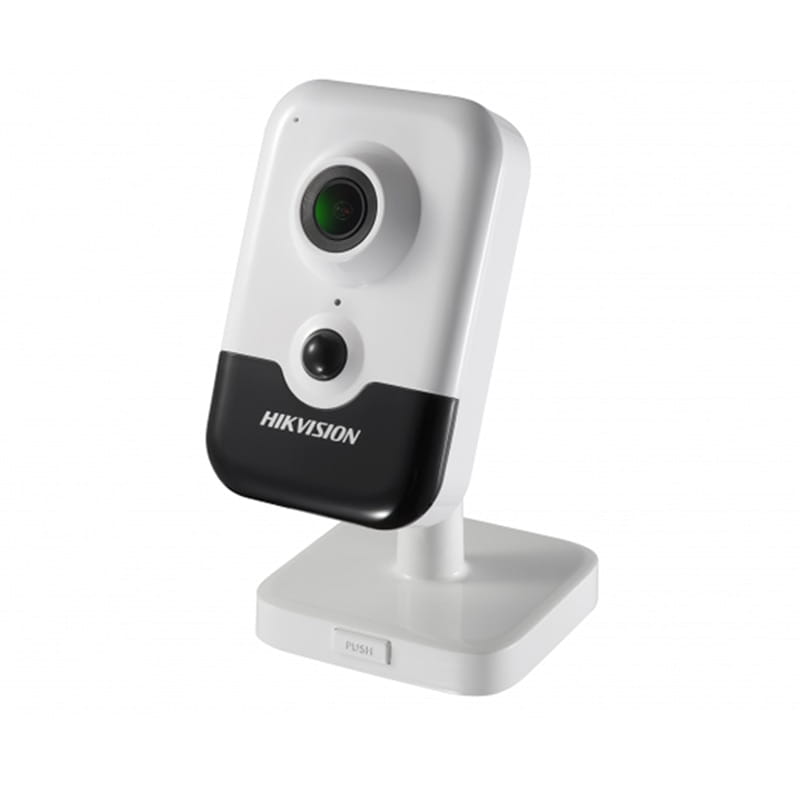

DS-2CD2443G0-IW(2.8mm)(W)

DS -2CD2443G0-IW  4 MP IR Fixed Cube Network Camera                            ◼ High quality imaging with 4 MP resolution  ◼ Efficient H.265+ compression technology  ◼ Clear imaging against strong back light due to 120 dB true  WDR technology    ◼ Provides real-time security via built-in two-way audio  ◼ Detects human body through passive infrared is sensitive  to body temperature (PIR)    ◼ -W: Wi-Fi connection              ◼ Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR Cut Filter  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  DNR 3D DNR  Lens  Lens 2.8/4 mm  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 98°,...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS -2CD2443G0-IW
4 MP IR Fixed Cube Network Camera













◼ High quality imaging with 4 MP resolution
◼ Efficient H.265+ compression technology
◼ Clear imaging against strong back light due to 120 dB true
WDR technology

◼ Provides real-time security via built-in two-way audio
◼ Detects human body through passive infrared is sensitive
to body temperature (PIR)

◼ -W: Wi-Fi connection






◼ Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day &Night IR Cut Filter
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR 3D DNR
Lens
Lens 2.8/4 mm
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Lens Mount M12
Illuminator
IR Range 10 m
Wavelength 850 nm
PIR
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range 10 m
Video
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
SVC Support H.264 and H.265 encoding
Audio
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 -160Kbps(MP2L2)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Image Enhancement BLC/3D DNR/HLC



Image Setting
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable
by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Wi -Fi
Channel Bandwidth 20 M/40 M
Security WPA, WPA2
Transfer Rate
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
Wireless Range 50 m
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS),
ANR
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS -4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug -in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD
full, HDD error, PIR, illegal login
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
Audio 1 built -in mic, 1 built-in speaker, mono sound
On -board Storage Built -in Micro SD/SDHC/SDXC slot, up to 128 GB
General
General Function
One -key reset, anti-flicker, three streams, heartbeat, mirror, password protection,
privacy mask, watermark, IP address filter
Reset Yes
Startup and Operating
Conditions
-10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.2
A to 0.1 A, max. 7 W
Material Plastic
Dimensions 102.8 mm x 65.2 mm x 32.6 mm (4.1" x 2.6" x 1.3")
Weight Camera: Approx. 128 g (0.3 lb.)
Compression Standard
H.264+ Main stream supports
H.265+ Main stream supports
Smart Feature-set
Face Detection Yes





◼ Dimension















◼ Available Model
DS -2CD2443G0-IW(2.8 mm, 4 mm)(W)
