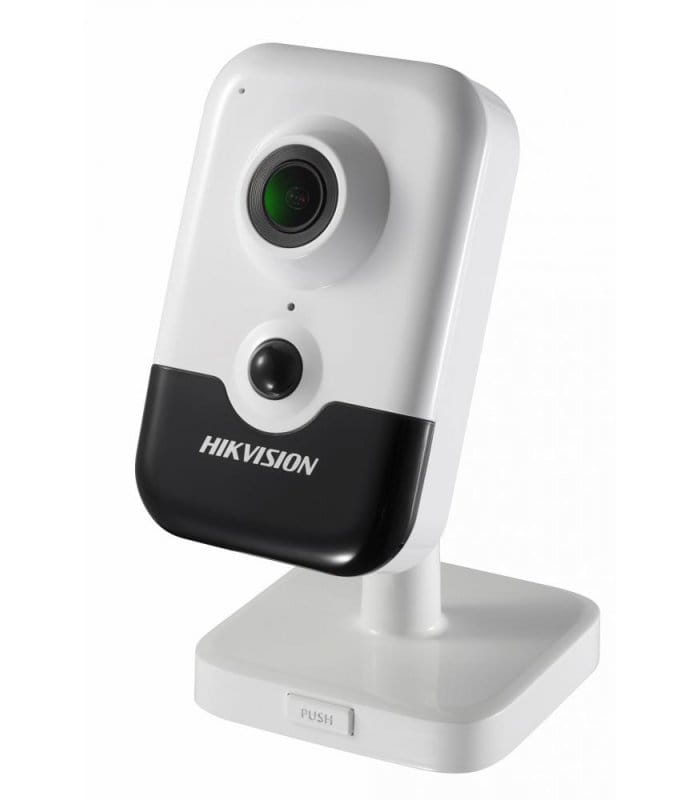

DS-2CD2425FWD-IW(2.8mm)(W)

Availability: 0
Price: €201.18 201.18
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311313510

Description

DS-2CD2425FWD-IW  2 MP IR Fixed Cube Network Camera                                 High quality imaging with 2 MP resolution   Excellent low-light performance via  powered-by-DarkFighter technology     Efficient H.265+ compression technology   Clear imaging against strong back light due to 120 dB true  WDR technology     Provides real-time security through built-in two-way audio   Detects human body through passive infrared sensitive to  body temperature (PIR)     -W: Wi-Fi connection               Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR Cut Filter  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  DNR 3D DNR  Lens  Lens 2.8 mm  Aperture F1.6  Focus Fixed  FOV Horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129°  Lens Mount M12  Illuminator  IR Range 10 m  Wavelength 850 nm  PIR  PIR Angle Horizontal: 90°, vertical: 80°  PIR Range 1...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2425FWD-IW
2 MP IR Fixed Cube Network Camera















 High quality imaging with 2 MP resolution
 Excellent low-light performance via
powered-by-DarkFighter technology

 Efficient H.265+ compression technology
 Clear imaging against strong back light due to 120 dB true
WDR technology

 Provides real-time security through built-in two-way audio
 Detects human body through passive infrared sensitive to
body temperature (PIR)

 -W: Wi-Fi connection






 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day &Night IR Cut Filter
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR 3D DNR
Lens
Lens 2.8 mm
Aperture F1.6
Focus Fixed
FOV Horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129°
Lens Mount M12
Illuminator
IR Range 10 m
Wavelength 850 nm
PIR
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range 10 m
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
SVC Support H.264 and H.265 encoding
Audio
Audio Compression G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz



Smart Feature-Set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Image Enhancement BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable
by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Wi-Fi
Frequency 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20/40 MHz
Security WPA, WPA2
Transfer Rate
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
Wireless Range 50 m
Wireless Standards IEEE 802.11b/g/n
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS),
ANR
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD
full, HDD error, PIR, illegal login
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 built-in mic, 1 built-in speaker, mono sound
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Firmware Version V5.5.80
Reset Yes
Startup and Operating
Conditions
-10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.38 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Material Plastic
Dimensions 102.8 mm x 65.2 mm x 32.6 mm (4.05" x 2.57" x 1.28")
Weight Camera: Approx. 128 g (0.28 lb.)
Compression Standard
H.264+ Main stream supports




H.265+ Main stream supports
Smart Feature-set
Face Detection Yes
Exception Detection Scene change detection


 Dimension
















 Available Model
DS-2CD2425FWD-IW(2.8 mm)(W)

05050820200402
