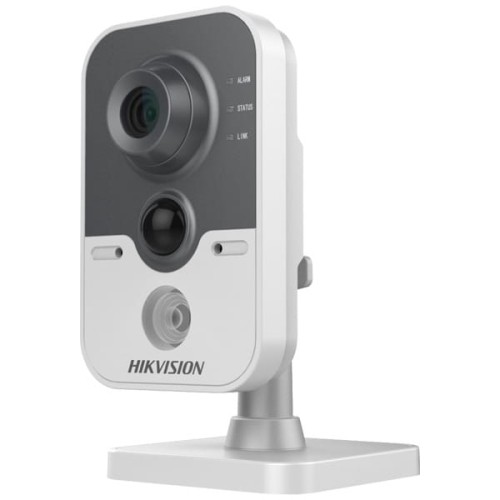

DS-2CD2422FWD-IW(4mm)

DS-2CD2422FWD-IW  2.0 MP WDR Network Cube Camera    Key Features    Up to 2.0 megapixel high resolution  Two video streams  2.8mm/4mm fixed lens  120 dB Wide Dynamic Range  3D Digital Noise Reduction  Support on-board storage, up to 128GB  Build-in microphone and speaker, support  two-way audio  12 VDC & PoE (802.3af)  Up to 10 m IR range  Alarm I/O  Support PIR (Passive Infrared Detection)  Built-in Wi-Fi  Mobile Monitoring via Hik-Connect or iVMS-4500          Specifications  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Lens 2.8 mm, horizontal field of view 115.6° [4 mm (88.9°), optional]  Lens Mount M12  Day &Night IR cut filter with auto switch  DNR 3D DNR  Wide Dynamic Range 120dB WDR  Compression Standard  Video Compression H.264/H.264+/MJPEG  H.264 Type BaseLine Profile/Main Profile  Video Bit Rate 32 Kbps – 8 Mbps  Dual Streams Support  Audio Compression G.711/G.722.1/G.726/MP2L2  Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)  Image  Max. Resolution 1920 x 1080  Max....

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2422FWD-IW
2.0 MP WDR Network Cube Camera

Key Features

Up to 2.0 megapixel high resolution
Two video streams
2.8mm/4mm fixed lens
120 dB Wide Dynamic Range
3D Digital Noise Reduction
Support on-board storage, up to 128GB
Build-in microphone and speaker, support
two-way audio
12 VDC & PoE (802.3af)
Up to 10 m IR range
Alarm I/O
Support PIR (Passive Infrared Detection)
Built-in Wi-Fi
Mobile Monitoring via Hik-Connect or iVMS-4500




Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8 mm, horizontal field of view 115.6° [4 mm (88.9°), optional]
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB WDR
Compression Standard
Video Compression H.264/H.264+/MJPEG
H.264 Type BaseLine Profile/Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Dual Streams Support
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution 1920 x 1080
Max. Frame Rate
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Image Settings
Support rotate mode, brightness, saturation, sharpness, contrast are adjustable via web browser and
client software
Day/Night Switch Support auto, scheduled, and triggered by alarm input
Others Mirror, Wide Dynamic Range (WDR), (Backlight Compensation)BLC, (Region of Interest) ROI
Network
Network Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Detection Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis
Alarm Trigger Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key reset, Anti-flicker, Dual Streams, Heartbeat, Password Protection, Privacy Mask, Watermark,
IP Address Filtering
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Audio 1build-in Mic, 1 build-in speaker
Alarm 1 alarm input, 1 alarm output
Reset Yes
Wi-Fi
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM


Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Reception Sensitivity
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters (The performance varies based on actual environment)
General
Operating Conditions -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Max. 5W
PIR Angle: 90°, Range: 8m
IR Range Approx. 10 meters
Dimensions 72.3 x 91.9 x 131.3mm (2.85” x 3.62” x 5.17”)
Material Plastic
Weight 400g (0.88lbs)







UNIT: mm




Ordering Models

DS-2CD2422FWD-IW
Dimensions




05040120170322
