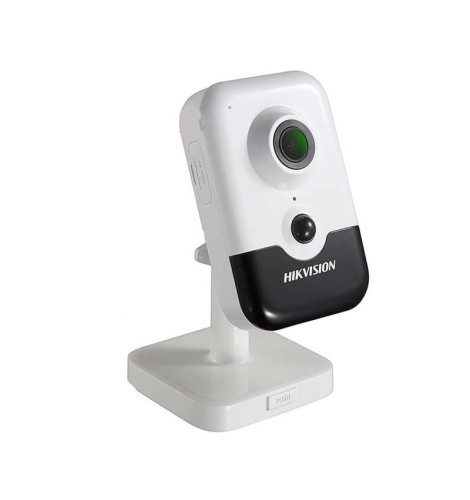

DS-2CD2421G0-IW(2.8mm)(W)

Availability: 0

Price: €133.43 133.43

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 311313456

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2421G0-I(D)(W)
2 MP IR Fixed Cube Network Camera

● 1/2.7" Progressive Scan CMOS
● 1920 x 1080@30fps
● H.265, H.265+, H.264, H.264+
● Two-way Audio

● PIR: 10 m
● IR range: Up to 10 m
● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
● Wi-Fi (Optional)

Specifications

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR DWDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8 mm
Aperture F2.0
FOV
2 mm: horizontal FOV: 132°, vertical FOV: 77°, diagonal FOV: 153°
2.8 mm: horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 126°
4 mm: horizontal FOV: 85°, vertical FOV: 45°, diagonal FOV: 101°
Lens Mount M12
Illuminator
IR Range Up to 10 m
Wavelength 850 nm
PIR
Angle Horizontal: 90°, vertical: 80°
Range 10 m
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 360)
60Hz: 30fps (640 x 360)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz

Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
capture, audible warning
Image Enhancement BLC, HLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client
software or web browser
Day/Night Switch Day/Night/Auto/Schedule
SNR > 50dB
Network
Network Storage microSD/SDHC/SDXC card (256 GB) local storage, ANR and NAS (NFS,SMB/CIFS)
Protocols
TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS,
Bonjour
API ONVIF(PROFILE S,PROFILE G), ISAPI, SDK
Security
Password protection, complicated password, IP address filter, Watermark, HTTPS
encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest
authentication for ONVIF, 802.1X authentication (EAP-MD5)
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 input (built-in microphone), 1 output (built-in speaker)
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Wi-Fi
Protocol IEEE802.11b, 802.11g, 802.11n
Frequency 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Modulation 802.11b: DSSS, 802.11g: OFDM, 802.11n(20MHz&40MHz): OFDM
Security 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Transfer Rate 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters (The performance varies based on actual environment)
General
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, flash log
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating
Conditions
-10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Storage Conditions -10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing)

Power Supply
DS-2CD2421G0-IW:
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
DS-2CD2421G0-IDW:
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
DS-2CD2421G0-I:
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current
DS-2CD2421G0-IW:
12 VDC, 0.54 A, max. 6.5 W
PoE (802.3af, 36 V to 57 V), 0.21 A to 0.13 A, max. 7.5 W
DS-2CD2421G0-IDW:
12 VDC, 0.54 A, max. 6.5 W
DS-2CD2421G0-I:
12 VDC, 0.42 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.17 A to 0.11 A, max. 6 W
Material Plastic
Dimensions
Camera: 102.9 x 65.2 x 32.6 mm (4'' x 2.6'' x 1.3'')
With package: 150 x 125 x 99 mm (5.9'' x 4.9'' x 3.9'')
Weight
Camera: Approx. 120 g (0.3 lb.)
With package: Approx. 380 g (0.8 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
(IEC/EN 60950-1)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD2421G0-IDW (2.8 mm), DS-2CD2421G0-IW (2.8 mm), DS-2CD2421G0-I (2.8 mm)
