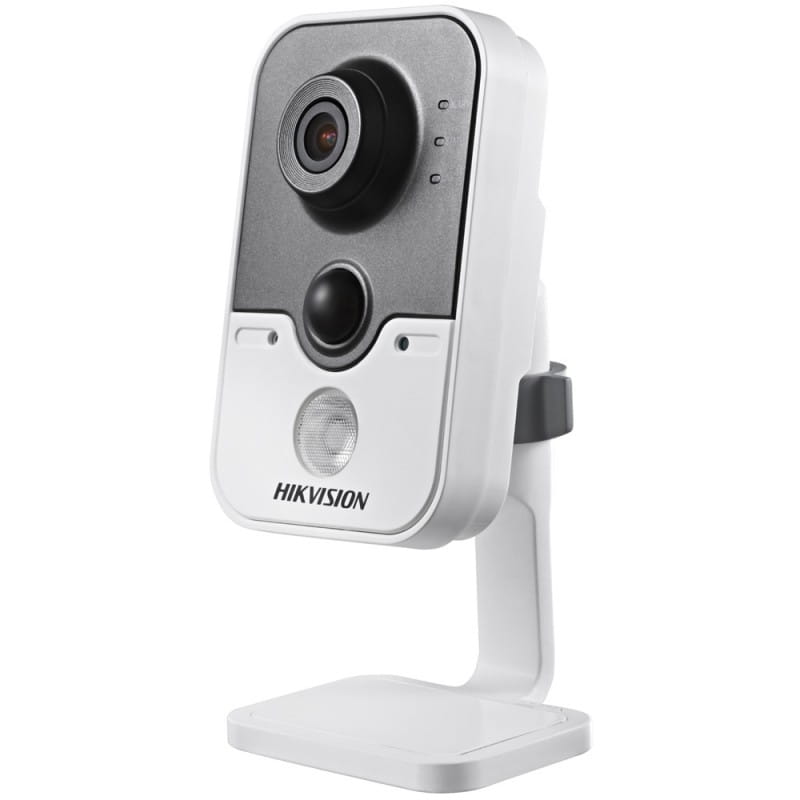

DS-2CD2420F-IW(4MM)(PSU)

Availability: 0
Price: €125.56 125.56
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300721493

Description

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2420F-I(W)      Key Features   Up to 2 megapixel (1920 x 1080 @ 30 fps) resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS   Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB   IR range approx. 10 meters   Two-way audio   Built-in microphone and speaker   Support Wi-Fi, support WPS configuration with one touch   Support PIR(Passive Infrared Detection)   IR cut filter with auto switch   Support PoE(802.3af)   3D digital Noise Reduction   Support dual stream, and the sub-stream for mobile surveillance   Integrated mount for easy installation   Support Backlight Compensation, Digital Wide Dynamic Range, Auto-electronic shutter and so on   Other functions: heartbeat, mirror, reset button, etc   Support intrusion detection and line crossing detection   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Application Scenarios:  It is suitable for indoor monitor space with HD image quality like small market, home, office. In addition, it can be  used in small range monitor space like u...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2420F-I(W)


Key Features
 Up to 2 megapixel (1920 x 1080 @ 30 fps) resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 IR range approx. 10 meters
 Two-way audio
 Built-in microphone and speaker
 Support Wi-Fi, support WPS configuration with one touch
 Support PIR(Passive Infrared Detection)
 IR cut filter with auto switch
 Support PoE(802.3af)
 3D digital Noise Reduction
 Support dual stream, and the sub-stream for mobile surveillance
 Integrated mount for easy installation
 Support Backlight Compensation, Digital Wide Dynamic Range, Auto-electronic shutter and so on
 Other functions: heartbeat, mirror, reset button, etc
 Support intrusion detection and line crossing detection
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Application Scenarios:
It is suitable for indoor monitor space with HD image quality like small market, home, office. In addition, it can be
used in small range monitor space like unattended storage, hall, accounting office, motor room, garage and so on.



©2006 – 2014 by HIKVISION. All rights reserved.
2
Specifications:
Model
parameters
DS-2CD2420F-I(W)
2 Megapixel CMOS Alarm Pro Cube Camera
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
0.01Lux @(F1.2,AGC ON), 0 Lux with IR
0.028Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm@ F2.0, Angle of view: 85°
(2.8mm, 6mm optional)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D Digital Noise Reduction
WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 encoding
level
Main Profile
Video Bit Rate 32Kbps~8Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web
browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage
Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB.
NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis,
Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password
protection, privacy mask, watermark, IP address filtering, Anonymous access



©2006 – 2014 by HIKVISION. All rights reserved.
3
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Alarm input 1
Alarm output 1
Wi-Fi Specification(Only for the products with Wi-Fi module built-in)
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output
Power
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Receive Sensitivity
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transfer Rates
11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range 50m(depend on environment)
Wireless Standards IEEE802.11b, 802.11g, 802.11n
General
Operating
Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply DC12V/PoE(802.3af)
Power
Consumption
MAX. 4.5W
PIR
Angle: 80°
Range: 10m
IR Range 10 meters
Dimensions (mm) 72.3x89.9x131.3
Weight 400g(0.88lbs)
* “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
*Without power adaptor in the case by default.

Order Models
DS-2CD2420F-I, DS-2CD2420F-IW



©2006 – 2014 by HIKVISION. All rights reserved.
4
Dimensions
UNIT:mm
