DS-2CD2386G2-I(2.8mm)

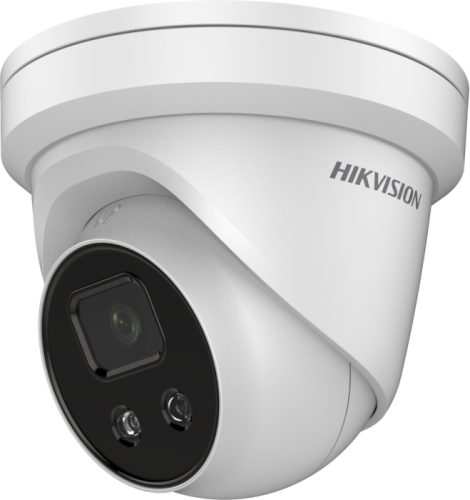

DS-2CD2386G2-I(U)  8 MP IR Fixed Turret Network Camera                    ● 1/2" Progressive Scan CMOS  ● 3840 x 2160 @ 20fps  ● 2.8/4/6 mm fixed lens  ● 120dB WDR  ● Powered by Darkfighter    ● H.265+, H.265, H.264+, H.264  ● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB  ● Built-in microphone (optional)  ● -I models: IP67, -IU models: IP66  ● Human and vehicle classification alarm based on deep  learning.    AcuSense  Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification  alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than  humans or vehicles, vastly improving alarm efficiency and effectiveness.            Specifications    Camera  Image Sensor 1/2" Progressive Scan CMOS  Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  WDR 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Lens Type Fixed lens, 2.8/4/6 mm  Aperture F1.6  FO...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2386G2-I(U)
8 MP IR Fixed Turret Network Camera









● 1/2" Progressive Scan CMOS
● 3840 x 2160 @ 20fps
● 2.8/4/6 mm fixed lens
● 120dB WDR
● Powered by Darkfighter

● H.265+, H.265, H.264+, H.264
● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
● Built-in microphone (optional)
● -I models: IP67, -IU models: IP66
● Human and vehicle classification alarm based on deep
learning.

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification
alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than
humans or vehicles, vastly improving alarm efficiency and effectiveness.





Specifications

Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8/4/6 mm
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 110.7° , vertical FOV: 59.1° , diagonal FOV: 131°
4 mm, horizontal FOV: 87.1° , vertical FOV: 47.4° , diagonal FOV: 101.8°
6 mm, horizontal FOV: 50.8° , vertical FOV: 27.6° , diagonal FOV: 60°
Lens Mount M16
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20fps (3840 x 2160, 3072 x 1728), 25fps (2688 x 1520,1920 x 1080, 1280 x 720)
60Hz: 20fps (3840 x 2160, 3072 x 1728), 30fps (2688 x 1520,1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding support
* When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
Audio(-U)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-
320Kbps(MP3)
Environment Noise Filtering Yes



Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event
Perimeter Protection: line crossing detection, intrusion detection, region entrance
detection, region exiting detection (Human&Vehicle classification)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
capture
Region of Interest 1 fixed region for main stream, sub-stream and third stream
Image Enhancement BLC, HLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client
software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-U) Built-in microphone
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
General
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)



Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af,
class 3)
Power Consumption and Current 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Material Camera body: metal, trim ring: plastic
Dimensions
Camera: Φ 138.3 x 126.3 mm (Φ 5.4" x 5")
With package: 170 x 170 x 150 mm (7" x 7" x 5.9")
Weight
Camera: approx. 740 g (1.6 lb.)
With package: approx. 1060 g (2.3 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
(IEC/EN 60950-1)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
Without -U models:
Ingress protection: IP67 (IEC 60529-2013)
With -U models:
Ingress protection: IP66 (IEC 60529-2013)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD2386G2-I (2.8 mm)
DS-2CD2386G2-I (4 mm)
DS-2CD2386G2-I (6 mm)
DS-2CD2386G2-IU (2.8 mm)
DS-2CD2386G2-IU (4 mm)
DS-2CD2386G2-IU (6 mm)
Dimension





Accessory




DS-1273ZJ-140
Wall Mount
DS-1271ZJ-140
Pendant Mount
DS-1280ZJ-DM21
Junction Box
