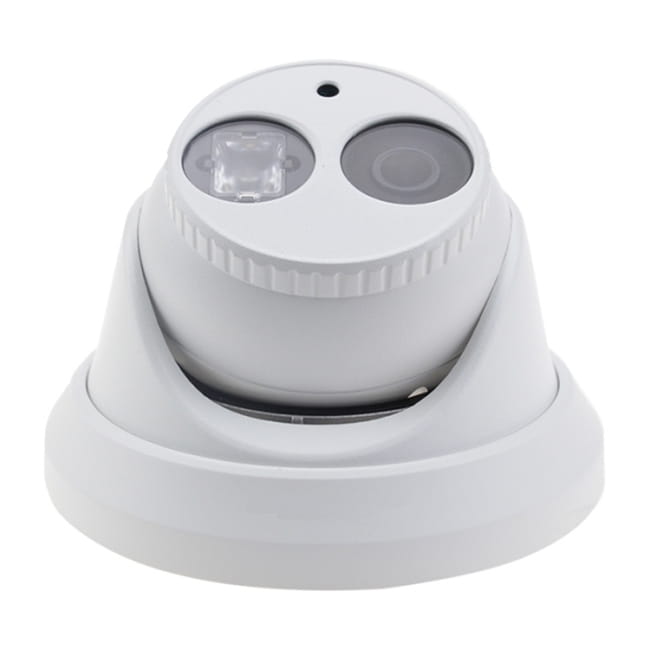

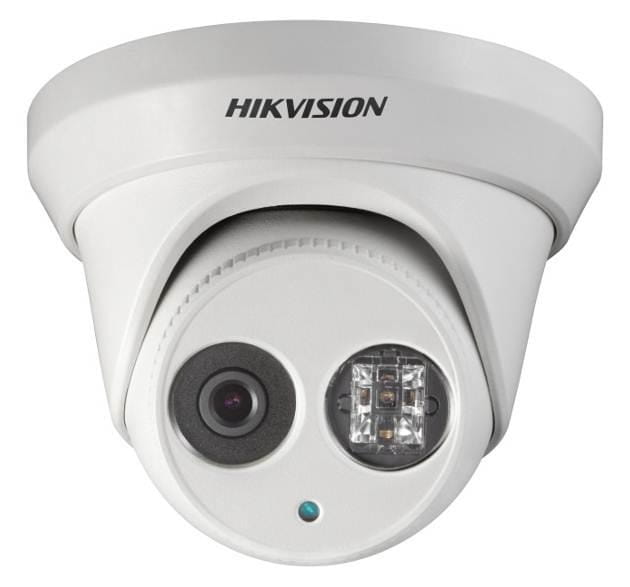

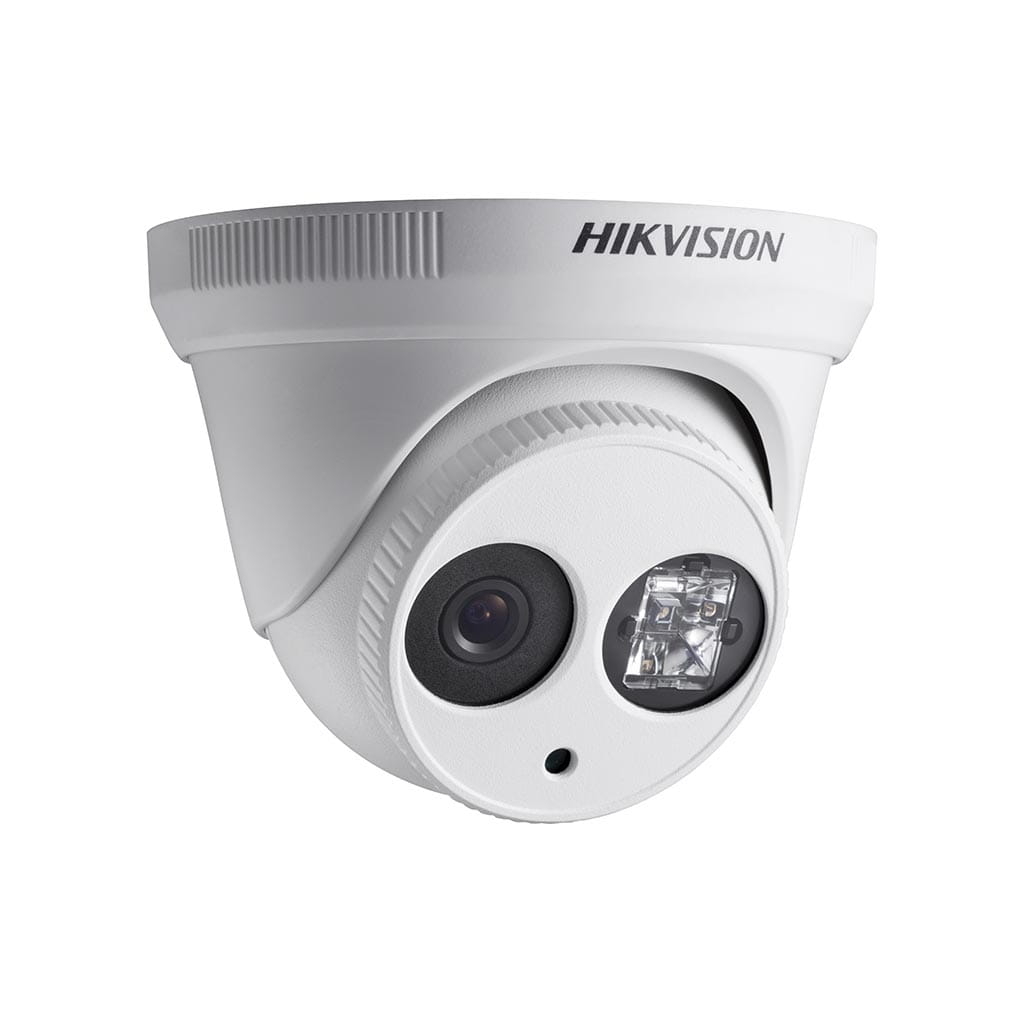

DS-2CD2352-I(4mm)
Description
DS-2CD2352-I 5MP EXIR CMOS Network Dome Camera Key Features Up to 5 megapixel high resolution Electronic shutter Dual video streams Digital Wide Dynamic Range 3D Digital Noise Reduction 3-axis adjustment DC12V & PoE EXIR Infrared LED Up to 30m IR range IP66 weather-proof protection Mobile Monitoring via EZVIZ P2P or iVMS-4500 Specifications Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s Lens 2.8mm (4mm, 6mm option) @ F2.0 Lens Mount M12 Day &Night IR cut filter with auto switch DNR 3D DNR Wide Dynamic Range DWDR Angle Adjustment Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360° Compression Standard Video Compression H.264+/H.264 / MJPEG H.264 Type Main Profile Video Bit Rate 256 Kbps ~ 16 Mbps Dual Streams Support Image Max. Resolution 2560x1920 Main Stream 50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720) 60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720) Sub Stream 50Hz: 30fps (352x288, 640x480) 60Hz: 25fps (35...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2CD2352-I
5MP EXIR CMOS Network Dome Camera
Key Features
Up to 5 megapixel high resolution
Electronic shutter
Dual video streams
Digital Wide Dynamic Range
3D Digital Noise Reduction
3-axis adjustment
DC12V & PoE
EXIR Infrared LED
Up to 30m IR range
IP66 weather-proof protection
Mobile Monitoring via EZVIZ P2P or iVMS-4500
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm (4mm, 6mm option) @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360°
Compression Standard
Video Compression H.264+/H.264 / MJPEG
H.264 Type Main Profile
Video Bit Rate 256 Kbps ~ 16 Mbps
Dual Streams Support
Max. Resolution 2560x1920
Main Stream
50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720)
Sub Stream
50Hz: 30fps (352x288, 640x480)
60Hz: 25fps (352x240, 640x480)
Others
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror,
BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask,
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error,
Network Disconnected, IP Address Conflicted
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function Password Protection, IP Address Filtering, Anonymous Access, Watermark
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5 W
Max. 9W with pan and tilt
IR Range Max. 30 meters
Protection Level IP66
Dimensions Φ127x97.5 (5.0” x 3.8”)
Weight 670g (1.5 lbs)
Dimension
Order Models
DS-2CD2352-I
Camera Accessories
Wall mount
DS-1273ZJ-130-TRL
050306151105
