Warning! Product withdrawn from production!

Replacement product: DS-2CD2346G2-ISU/SL(4mm)(O-STD)

Replacement product code: 311312482

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

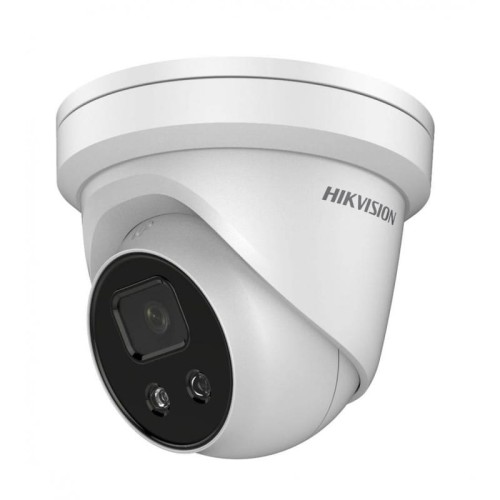

DS-2CD2346G1-I/SL
4 MP IR Fixed Turret Network Camera
Key Features
 Max. 2688 x 1520 @30fps
 2.8 mm/4 mm/6 mm/8 mm fixed lens
 H.265+, H.264+
 120dB WDR
 Powered by Darkfighter
 False alarm filter by target classification


 12 VDC & PoE (802.3af, class 3)
 Built-in micro SD/SDHC/SDXC slot, up to 128G
 BLC/3D DNR/HLC/ROI
 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
 Built-in speaker
 Strobe Light & Audio Alarm




Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8/4/6/8 mm
Aperture F1.6
Focus Fixed
FOV
2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exiting detection,
false alarm filter by target classification
When H265+, three streams or motion detection is enabled, the behavior analyses (including
line crossing detection, intrusion detection, region entrance detection and region exiting
detection) are not supported.
Exception Detection Scene change detection
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30fp s(1280 x 720, 640 x 480, 640 x 360, 320 x 240)







Image Enhancement BLC/3D DNR/HLC
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Day/Night/Auto/Schedule
ROI (Region of Interest) Support 4 fixed region for main stream and sub-stream separately
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version V5.5.70
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Interface
Audio Built-in speaker
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.5 A, max. 6 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
Material Camera: Metal, trim ring: Plastic
Dimension
Camera: Φ 138.3 x 126.3 mm (Φ 5.4" x 5")
With package: 170 x 170 x 150 mm (7" x 7" x 5.9")
Weight
Camera: 430 g (0.9 lb.)
With package: 733 g (1.6 lb.)
Available Model
DS-2CD2346G1-I/SL (2.8/4/6/8 mm)





Ø 138.3(5.4")
126.3(5")
98(3.9")
3-Ø 4.6(0.2")
Ø 128(5")
Unit: mm(inch)






DS-1273ZJ-140
Wall Mount

DS-1271ZJ-140
Pendant Mount

DS-1280ZJ-DM21
Junction Box



Dimension

Accessory
