DS-2CD2342WD-I(4mm)
Description
DS-2CD2342WD-I 4MP WDR EXIR Turret Network Camera Up to 4 megapixel high resolution Full HD1080p video Dual video streams 2.8mm/4mm/6mm fixed lens 120dB Wide Dynamic Range 3D Digital Noise Reduction Backlight Compensation Support on-board storage, up to 64GB DC12V & PoE Support H.264+ High performance EXIR LED Up to 30m IR range IP66 weather-proof protection 3-axis adjustment Dual video streams Mobile Monitoring via EZVIZ P2P or iVMS-4500 Camera Accessories Wall Mount DS-1273ZJ-130-TRL Junction Box DS-1280ZJ-M Inclined Ceiling Mount DS-1281ZJ-M Corner mount DS-1276ZJ Vertical Pole mount DS-1275ZJ Specification Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s Lens 2.8mm, 4mm, 6mm @ F2.0 Lens Mount M12 Day &Night IR cut filter with auto switch DNR 3D DNR Wide Dynamic Range 120dB Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° Compression ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2CD2342WD-I

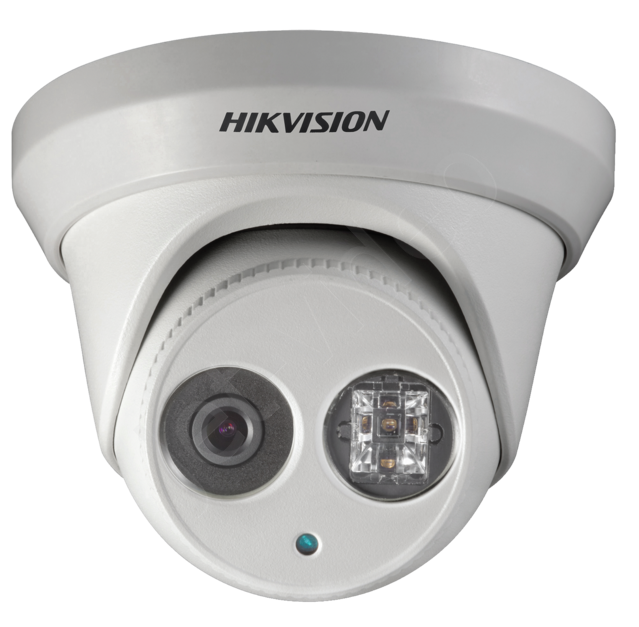

4MP WDR EXIR Turret Network Camera
Up to 4 megapixel high resolution
Full HD1080p video
Dual video streams
2.8mm/4mm/6mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
Backlight Compensation
Support on-board storage, up to 64GB
DC12V & PoE
Support H.264+
High performance EXIR LED
Up to 30m IR range
IP66 weather-proof protection
3-axis adjustment
Dual video streams
Mobile Monitoring via EZVIZ P2P or iVMS-4500
Camera Accessories
Wall Mount
DS-1273ZJ-130-TRL
Junction Box
DS-1280ZJ-M
Inclined Ceiling Mount
DS-1281ZJ-M
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 2688x1520
Frame Rate
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network
disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
DS-2CD2342WD-I
4MP WDR EXIR Turret
Network Camera
General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
Max. 9W with pan and tilt
IR Range Approx. 30 meters
Ingress Protection IP66
Dimensions Φ127x97.5 (5.0” x 3.8”)
Weight 670g (1.5 lbs)
Order Models
DS-2CD2342WD-I
DS-2CD2342WD-I
4MP WDR EXIR Turret
Network Camera
Dimensions
Unit: mm
