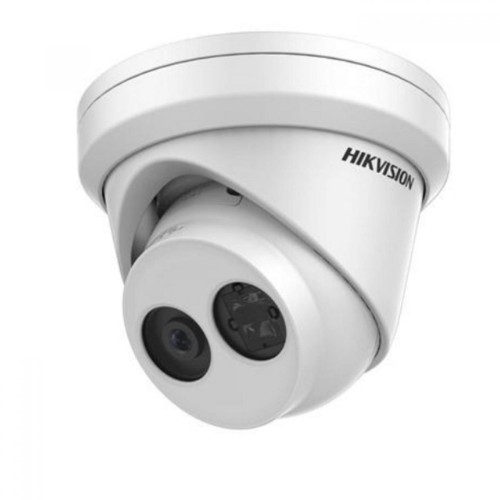

DS-2CD2335FWD-I(2.8mm)

Availability: 0
Price: €190.54 190.54
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300819188

Description

DS -2CD 23 35FWD-I  3 MP Ultra-Low Light Network Turret Camera  Key Features   Up to 3 megapixel high resolution   Max. 2048 x 1536 @30fps   2.8 mm/4 mm/6 mm/8 mm/12 mm fixed  lens, optional   Ultra -low light   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: up to 30 m   Support on -board storage, up to 128 GB   3-Axis Adjustment   IP67        Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 98 °  4 mm, horizontal field of view: 78.7 °  6 mm, horizontal field of view: 48 °  8 mm, horizontal field of view: 37 °  12 mm, horizontal field of view: 23°  Lens Mount M12  Iris F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Compression Standard

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS -2CD 23 35FWD-I
3 MP Ultra-Low Light Network Turret Camera
Key Features
 Up to 3 megapixel high resolution
 Max. 2048 x 1536 @30fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 Ultra -low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on -board storage, up to 128 GB
 3-Axis Adjustment
 IP67



Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 98 °
4 mm, horizontal field of view: 78.7 °
6 mm, horizontal field of view: 48 °
8 mm, horizontal field of view: 37 °
12 mm, horizontal field of view: 23°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2048 x 1536
Main Stream
50Hz: 25fps ( 2048 x 1536, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2048 x 1536, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1280 x720 , 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for mainstream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage , NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection , Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI














General Function
One -key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask,
Watermark, IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
On -board Storage Built -in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre -defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre -defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre -defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre -defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 6W
PoE(802.3af, 42.5 – 57V, class 3), 7W
IR Range Up to 30 m
Protection Level IP6 7
Dimensions
Camera: Φ 127.3 x 95.9 mm (5.01″ x 3.78 ″)
Package: 15 0 x 15 0 x 14 1 mm (5.91 ″ x 5.9 1″ x 5.5 5″)
Weight Camera: 620 g (1.37 lb.)
Available Models
DS -2CD2335FWD-I

Dimensions






DS -1273ZJ-130-TRL
Wall Mount
DS -1275ZJ
Vertical Pole Mount
DS -1276ZJ
Corner Mount


DS -1280ZJ-M
Junction Box
DS -1281ZJ-M
Inclined Ceiling Mount




Accessories
