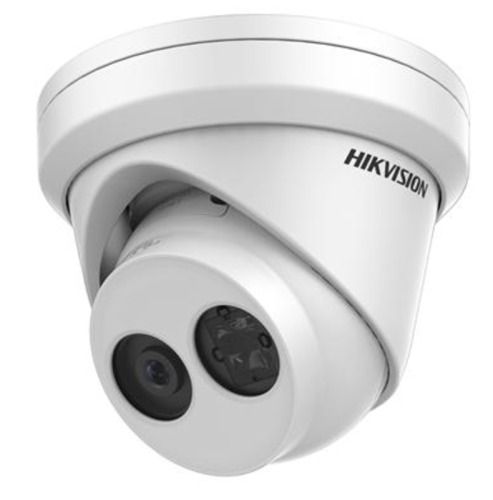

DS-2CD2325FWD-I(2.8mm)(BLACK)

DS-2CD2325FWD-I  2 MP IR Fixed Turret Network Camera  Key Features   Up to 2 megapixel high resolution   Max. 1920 x 1080 @30fps   2.8 mm/4 mm/6 mm/8 mm/12 mm fixed  lens, optional   Powered by Darkfighter   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction     12 VDC & PoE (802.3af)   IR range: up to 30 m   Support on-board storage, up to 128 GB   3-Axis Adjustment   IP67   Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR          Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination  Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6/8/12 mm  Focus Fixed  FOV  2.8 mm, horizontal field of view: 108°  4 mm, horizontal field of view: 86.4°  6 mm, horizontal field of view: 52°  8 mm, horizontal field of view: 41°  12 mm, horizontal field of view: 25°  Lens Mount M12  Iris F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2325FWD-I
2 MP IR Fixed Turret Network Camera
Key Features
 Up to 2 megapixel high resolution
 Max. 1920 x 1080 @30fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 Powered by Darkfighter
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction

 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 3-Axis Adjustment
 IP67
 Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR




Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6/8/12 mm
Focus Fixed
FOV
2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 41°
12 mm, horizontal field of view: 25°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280x720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client
software or web browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error









Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function
One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask,
Watermark, IP Address Filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 6 W
PoE (802.3af, 36 V to 57V, class 3), 7 W
IR Range Up to 30 m
Protection Level IP67
Material Metal
Dimensions
Camera: Φ 127.3 x 95.9 mm (5.01″ x 3.78″)
Package: 150 x 150 x 141 mm (5.91″ x 5.91″ x 5.55″)
Weight Camera: 620 g (1.37 lb.)
Available Model
DS-2CD2325FWD-I (2.8/4/6/8/12 mm)
.


127.3
84.4
95.9
97.3
Unit: mm(inch)
28
.1
56
.2
84
.3
(5.01")
(3.32")
(1
.11
"
)
(2
.21
"
)
(3
.32
"
)
34.8
(30.19")
(3.83")
(3.76")

Dimension





DS-1273ZJ-130-TRL
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount


DS-1280ZJ-M
Junction Box
DS-1281ZJ-M
Inclined Ceiling Mount
DS-1280ZJ-DM8
Junction Box



DS-1273ZJ-130-TRL(Black)
Wall Mount
DS-1275ZJ-SUS(Black)
Vertical Pole Mount
DS-1276ZJ-SUS(Black)
Corner Mount

DS-1281ZJ-M(Black)
Inclined Ceiling Mount
DS-1280ZJ-DM8(Black)
Junction Box




05058020181207

Accessory
