DS-2CD2325FWD-I

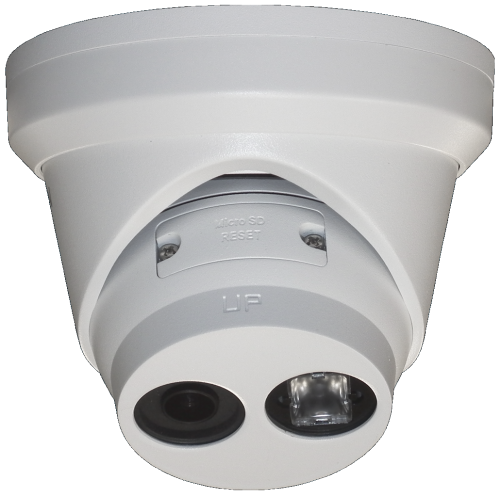

2 MP Ultra-Low Light Network Turret Camera
Key Features
 Up to 2 megapixel high resolution
 Max. 1920 x 1080 @30fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 Ultra-low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 3-Axis Adjustment
 IP67




Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 25°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280x720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI















General Function
One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask,
Watermark, IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 6W
PoE(802.3af, 42.5 – 57V, class 3), 7W
IR Range Up to 30 m
Protection Level IP67
Dimensions
Camera: Φ 127.3 x 95.9 mm (5.01″ x 3.78″)
Package: 150 x 150 x 141 mm (5.91″ x 5.91″ x 5.55″)
Weight Camera: 620 g (1.37 lb.)
Available Models
DS-2CD2325FWD-I
.
Dimensions






DS-1273ZJ-130-TRL
Wall Mount
DS-1275ZJ
Vertical Pole Mount
DS-1276ZJ
Corner Mount


DS-1280ZJ-M
Junction Box
DS-1281ZJ-M
Inclined Ceiling Mount





Accessories
