DS-2CD2312-I(8mm)

K e y f ea tu r es  Dimensions  Accessories    DS-2CD2312-I 1.3MP EXIR Turret Network Camera  • 1.3 megapixel (1280 x 960) resolution  • HD real-time video  • 3D DNR & DWDR & BLC  • EXIR illuminator (up to 30m)  • IP66  • PoE    DS-2CD2312-I  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.028 lux@F2.0, AGC on  0 lux with IR  Shutter time 1/30s ~ 1/100,000s  Lens  4mm@F2.0, angle of view: 75.8°  (2.8mm, 6mm, 12mm optional)  Lens mount M12  Angle adjustment Horizo...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

K e y f ea tu r es
Dimensions
Accessories

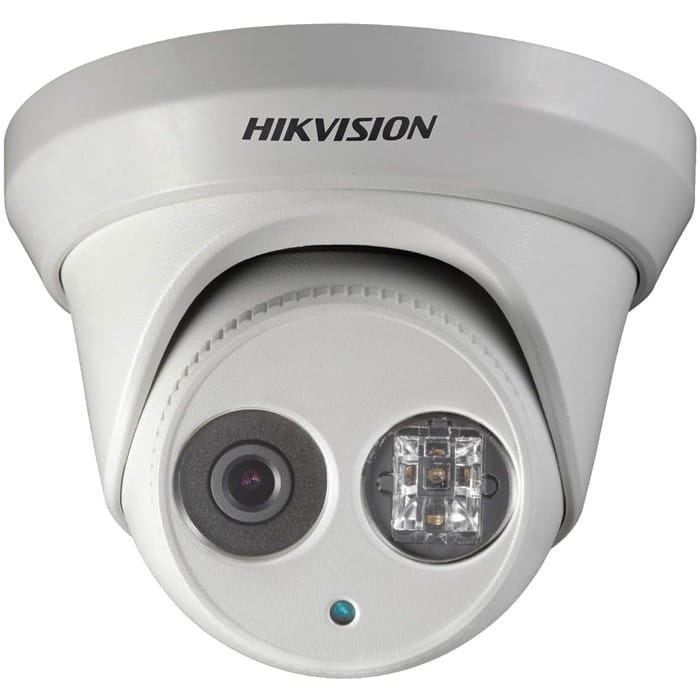

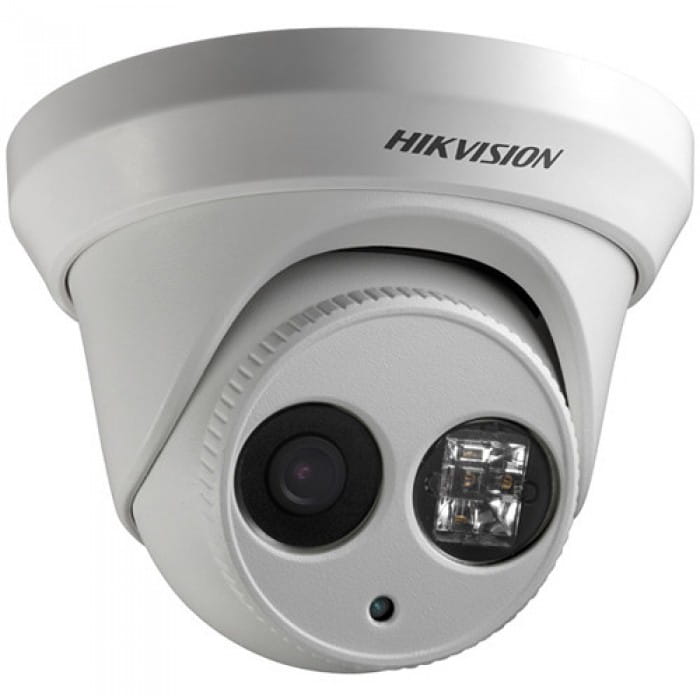

DS-2CD2312-I 1.3MP EXIR Turret Network Camera
• 1.3 megapixel (1280 x 960) resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• EXIR illuminator (up to 30m)
• IP66
• PoE

DS-2CD2312-I
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.028 lux@F2.0, AGC on
0 lux with IR
Shutter time 1/30s ~ 1/100,000s
Lens
4mm@F2.0, angle of view: 75.8°
(2.8mm, 6mm, 12mm optional)
Lens mount M12
Angle adjustment Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Day & night ICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensation

Compression standard
Video compression H.264 / MJPEG

Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution1280 x 960
Frame rate 60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS
Alarm trigger Motion detection, tampering alarm
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1X, Qos
System compatibility ONVIF, PSIA, CGI
General functionalitiesUser authentication, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumptionMax. 5.5W (7.5W with ICR on)
Ingress protection IP66
EXIR range up to 30m
DimensionsΦ 127 x 97.5 mm
Weight 670g (1.5lbs)
Available models
DS-2CD2312-I

HD Video

CMOS
CMOS
1/3”

IR
IP66

Megapixel
MP Camer a
1.3

3D

DS-1239ZJ-1
Wall Mount
Aluminium Bracket
(with junction box)
For more information: ww w .hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
