DS-2CD2312-I(12mm)

Availability: 0
Price: €195.17 195.17
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300801596

Description

www.hikvision.com  Key features  Dimensions  Accessories      DS-2CD2312-I 1.3MP EXIR Turret Network Camera  • 1.3 megapixel (1280 x 960) resolution  • HD real-time video  • 3D DNR & DWDR & BLC  • EXIR illuminator (up to 30m)  • IP66  • PoE    DS-2CD2312-I  Camera  Image sensor1/3” progressive scan CMOS  Min. illumination  0.01 lux@F1.2, AGC on  0 lux with IR  Shutter time1/25s (1/30s) ~ 1/100,000s  Lens  4mm@F2.0, angle of view: 75.8°  (2.8mm, 6mm, 12mm optional)  Lens mountM12  Angle adjustmentHorizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°  Day & nightICR  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Backlight compensationYes, zone configurable  Compression standard  Video compression H.264 / MJPEG  H.264 compression profileMain profile  Bit rate32 Kbps ~ 16 Mbps  Dual streamYes  Image  Max. image resolution1280 x 960  Frame rate  50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)  60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480)  Image settings Saturation, brightness, contrast adjustable through client software or web browser  Network  Network stora...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

www.hikvision.com
Key features
Dimensions
Accessories

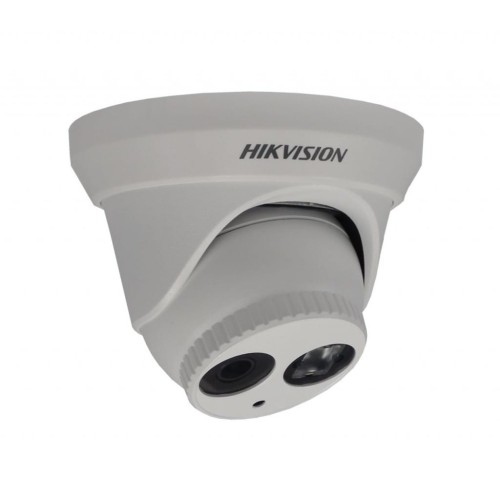

DS-2CD2312-I 1.3MP EXIR Turret Network Camera
• 1.3 megapixel (1280 x 960) resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• EXIR illuminator (up to 30m)
• IP66
• PoE

DS-2CD2312-I
Camera
Image sensor1/3” progressive scan CMOS
Min. illumination
0.01 lux@F1.2, AGC on
0 lux with IR
Shutter time1/25s (1/30s) ~ 1/100,000s
Lens
4mm@F2.0, angle of view: 75.8°
(2.8mm, 6mm, 12mm optional)
Lens mountM12
Angle adjustmentHorizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone configurable
Compression standard
Video compression H.264 / MJPEG
H.264 compression profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. image resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS ( iSCSI optional)
Alarm triggerMotion detection, tampering alarm
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibilityONVIF, PSIA, CGI
General functionalitiesUser authentication, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumptionMax. 5.5W (7.5W with ICR on)
Ingress protectionIP66
EXIR rangeup to 30m
DimensionsΦ 127 x 97.5 mm
Weight670g (1.5lbs)
Available models
DS-2CD2312-I
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

HD Video

CMOS
CMOS
1/3”

IR
IP66

Megapixel
MP Camer a
1.3

3D

DS-1239ZJ-1
Wall Mount
Aluminium Bracket
(with junction box)
