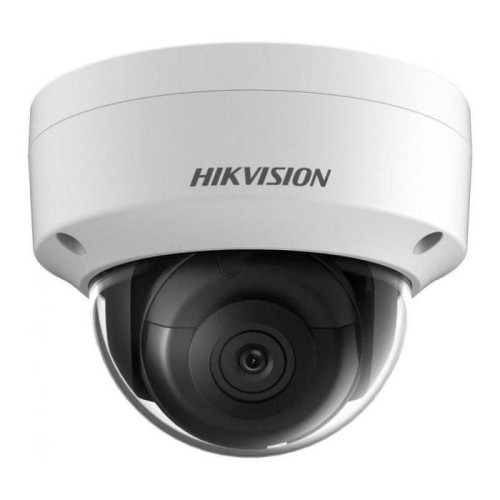

DS-2CD2165FWD-I(4mm)

Availability: 0
Price: €246.04 246.04
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311306728

Description

DS-2CD2165FWD-IS  6 MP IR Fixed Dome Network Camera  Key Features   Up to 6 megapixel high resolution   Max. 3072 x 2048 @20fps   2.8 mm/4 mm/6 mm fixed lens, optional   H.265, H.265+, H.264+, H.264   120dB WDR   Powered by Darkfighter     12 VDC & PoE (802.3af, class 3)   IR range: up to 30 m   Support on-board storage, up to 128 GB   IP67, IK10   3-axis adjustment   Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @  (F1.6, AGC ON)        Specification  Camera  Image Sensor 1/2.4" Progressive Scan CMOS  Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°  4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°  6 mm, horizontal FOV: 60°, vertical FOV: 38°  Lens Mount M12  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2165FWD-IS
6 MP IR Fixed Dome Network Camera
Key Features
 Up to 6 megapixel high resolution
 Max. 3072 x 2048 @20fps
 2.8 mm/4 mm/6 mm fixed lens, optional
 H.265, H.265+, H.264+, H.264
 120dB WDR
 Powered by Darkfighter

 12 VDC & PoE (802.3af, class 3)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 IP67, IK10
 3-axis adjustment
 Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @
(F1.6, AGC ON)



Specification
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°
6 mm, horizontal FOV: 60°, vertical FOV: 38°
Lens Mount M12
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser
and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
* Note: When the main stream resolution is 2944 x 1656 and above, max frame rate is 20 fps for all streams.
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD
full, HDD error







Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-S) 1 audio input (line in), 1 audio output interface, terminal block
Alarm (-S) 1 alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset button Yes
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
Audio(-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.5 A, max: 6 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
IR Range Up to 30 m
Wavelength 850 nm
Protection Level IP67, IK10
Material Camera body: metal, bubble: plastic
Dimensions
Camera: Φ 111 x 82.4 mm (Φ 4.4″ x 3.2″)
With package: 134 x 134 x 108 mm (5.27″ x 5.27″ x 4.25″)
Weight
Camera: 500 g (1.1 lb.)
With package: 800 g (1.8 lb.)
Available Models
DS-2CD2165FWD-IS (2.8/4/6 mm)






Ø111(4.4")
Ø100(4") Ø
82
.4
(3
.2
")

Ø79.1(3.1")


Unit: mm(inch)





Inclined ceiling mount
DS-1259ZJ
Wall mount
DS-1272ZJ-110
Wall mount + junction box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110


Junction box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical pole mount
DS-1275ZJ
Rain-proof cap
DS-1250ZJ




Accessories
Dimensions

05056120180804
