DS-2CD2146G2-I(4mm)

Availability: 0
Price: €216.67 216.67
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311312241

Description

DS-2CD2146G2-I(SU)  AcuSense 4 MP IR Fixed Dome Network Camera                               High quality imaging with 4 MP resolution   Excellent low-light performance with  powered-by-DarkFighter technology     Efficient H.265+ compression technology   Clear imaging against strong back light due to 120 dB true  WDR technology     False alarm reduction through human and vehicle target  classification based on deep learning     -ISU: Water and dust resistant (IP66) and vandal-resistant  (IK10); -I: Water and dust resistant (IP67) and  vandal-resistant (IK10)     -ISU: built-in microphone for real-time auto security   3D DNR technology delivers clean and sharp images    AcuSense  Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms  to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or  vehicles, vastly improving alarm efficiency and effectiveness.                 Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Colo...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2146G2-I(4mm)(C)

Replacement product code: 311314612

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

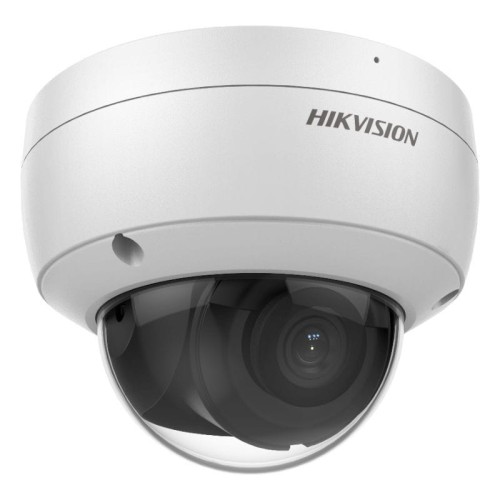

DS-2CD2146G2-I(SU)
AcuSense 4 MP IR Fixed Dome Network Camera














 High quality imaging with 4 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology

 Efficient H.265+ compression technology
 Clear imaging against strong back light due to 120 dB true
WDR technology

 False alarm reduction through human and vehicle target
classification based on deep learning

 -ISU: Water and dust resistant (IP66) and vandal-resistant
(IK10); -I: Water and dust resistant (IP67) and
vandal-resistant (IK10)

 -ISU: built-in microphone for real-time auto security
 3D DNR technology delivers clean and sharp images

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms
to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or
vehicles, vastly improving alarm efficiency and effectiveness.







 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Aperture F1.4
Lens Mount M12
Aperture Type Fixed
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Supplement Light IR
Video
Max. Resolution 2592 x 1944
Main Stream
50Hz: 20fps (2592 x 1944)
25fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20fps (2944 x 1656)
30fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed regions for each stream
Audio
Environment Noise Filtering Yes



Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Alarm -ISU: 1 input, 1 output (max. 12 VDC @30 mA)
Audio
-ISU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 100 Ω, interface type: non-equilibrium
On-board Storage Built-in micro SD slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture Yes
Premier Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)



Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Power Consumption and
Current
12 VDC, 0.45 A, max. 5.4 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Material Metal upper cover and base
Camera Dimension Ø121 x 92 mm (4.8" x 3.6")
Package Dimension 150 x 150 x 141 mm (5.9" x 5.9" x 5.6")
Camera Weight 585 g (1.3 lb.)
With Package Weight 836 g (1.8 lb.)
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
strobe light, audible warning
*Note: External device is required.
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail,
pixel counter
Software Reset Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
-ISU: Ingression protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
-I: Ingression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)







 Available Model
DS-2CD2146G2-I(2.8 mm, 4 mm, 6 mm)
DS-2CD2146G2-ISU(2.8 mm, 4 mm, 6 mm)



 Dimension



 Accessory



DS-1271ZJ-120 DS-1272ZJ-120B DS-1272ZJ-120 DS-1276ZJ-SUS
Pendent Mount Wall Mount Wall Mount Corner Mount



DS-1275ZJ-SUS DS-1253ZJ-M DS-1280ZJ-DM46
Vertical Pole Mount
Rain Shade for Outdoor
Dome Camera
Junction Box
