DS-2CD2143G2-I(4mm)

Availability: 101-500
Price: €218.51 218.51
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311313650

Description

DS-2CD2143G2-I(S)  4 MP EXIR Fixed Dome Network Camera                     High quality imaging with 4 MP resolution   Clear imaging against strong backlight due to 120 dB WDR  technology     Efficient H.265+ compression technology   Water and dust resistant (IP67) and vandal resistant (IK10)               Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night ICR Cut  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Lens Type & FOV  2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°  4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°  Aperture F1.6  Lens Mount M12  DORI  DORI  2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m  4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m  Illuminator  IR Range Up to 30 m  Wavelength 850 nm  Video  Max. Resolution 2688 x 1520  Main Stream  50Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)  60Hz: 30 fps (2688 x 1...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD2143G2-I(S)

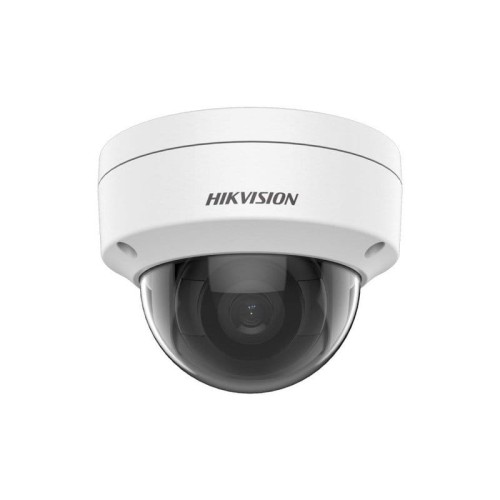

4 MP EXIR Fixed Dome Network Camera









 High quality imaging with 4 MP resolution
 Clear imaging against strong backlight due to 120 dB WDR
technology

 Efficient H.265+ compression technology
 Water and dust resistant (IP67) and vandal resistant (IK10)






 Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Aperture F1.6
Lens Mount M12
DORI
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360)
60Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering -S: Yes
Audio Sampling Rate -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC



Audio Bit Rate
-S:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)
/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Audio
-S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core
terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface
type: non-equilibrium, mono sound
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
On-board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event Motion detection (human and vehicle), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Face Detection Yes
General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, Email
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Material
Aluminum alloy body
Bubble: plastic
Camera Dimension Ø110.8 x 84.7 mm (Ø4.4″ x 3.3″)
Package Dimension 134 x 134 x 108 mm (5.3″ x 5.3″ x 4.3″)
Camera Weight Approx. 530 g (1.2 lb.)
With Package Weight Approx. 720 g (1.6 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)


 Dimension



 Available Model
DS-2CD2143G2-I (2.8/4 mm)
DS-2CD2143G2-IS(2.8/4 mm)



 Accessory
 Optional
DS-1272ZJ-120B
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-DM46
Junction Box
DS-1253ZJ-M
Rain Shade
DS-1272ZJ-120
Wall Mount


DS-1276ZJ-SUS
Corner Mount
DS-1271ZJ-120
Pendant Mount
