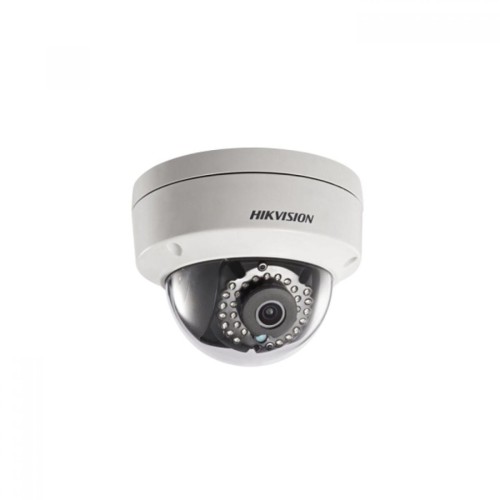

DS-2CD2132F-I(2.8mm)

Availability: 0

Price: €184.21 184.21

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300805342

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key features
Dimensions
• 2MP / 3MP high resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• IR LEDs: up to 30m
• IP66
• Vandal-proof
• PoE
• Onboard storage (up to 64GB)
• Wi-Fi optional

DS-2CD2122F-I(S)(W) DS-2CD2132F-I(S)(W)
Camera
Image sensor1/3” Progressive Scan CMOS
Min. illumination0.01 lux@F1.2, AGC ON, 0 lux with IR0.07Lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/3s ~ 1/100,100s
Lens
4mm @ F2.0 (2.8mm, 6mm optionalfl
Angle of view:
98.5°(2.8mm) 79°(4mm) 49°(6mm)
4mm @ F2.0 (2.8mm, 6mm, 12mm optionalfl
2048 x 1536: Angle of view:
86°(2.8mm) 70°(4mm) 43.3°(6mm) 20.6°
1920 x 1080: Angle of view:
98.5°(2.8mm) 79°(4mm) 49°(6mm) 23.2°
Lens mountM12
Angle adjustmentPan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0 ~ 360°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Day & nightIR cut filter with auto switch
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. Image Resolution1920 x 10802048 x 1536
Frame rate
50Hz: 25fps (1920 x 1080) 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080) 30fps (1280 x 720)
50Hz: 20fps (2048 x 1536) 25fps (1920 x
1080) 25fps (1280 x 720)
60Hz: 20fps (2048 x 1536) 30fps (1920 x
1080) 30fps (1280 x 720)
Image settings
Saturation, brightness, sharpness, contrast, sharpeness adjustable through client software
or web browser
BLCYes, zone configurable
ROIYes, up to 3 configurable areas
Network
Network storageLocal storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB ; NAS
Alarm trigger
Face detection, line crossing detection, intrusion detection, scene change detection,
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address
conflict, Storage full, Storage error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesUser Authentication, Watermark
General function
Flickerless, dual stream, heartbeat, mirror, password protection, watermark
Interface
Communication Interface1 RJ45 10M/100M Ethernet interface
Wi-Fi Specification (Only for –W model)
Wireless StandardsIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel Bandwidth20/40MHz Support
Protocols802.11b: CCK, QPSK, BPSK ; 802.11g/n: OFDM
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power11b: 17±1.5dBm @ 11Mbps ; 11g: 14±1.5dBm @ 54Mbps ; 11n: 12.5±1.5dBm
Receive Sensitivity11b: -90dBm @ 11Mbps (Typical) ; 11g: -75dBm @ 54Mpbs (Typical) ; 11n: -74dBm (Typical)
Transfer Rates11b: 11Mbps ; 11g: 54Mbps ; 11n: up to 150Mbps
Wireless RangeOutdoor: 200m, Indoor: 50m ; *The performance varies based on actual environment.
General
Operating conditions-30 °C ~ 60 °C (-22 °F ~ 140 °F) ; Humidity 95% or less (non-condensing)
Power supply12 V DC ± 10% ; PoE (802.3af)
Power consumptionMax. 5 W (Max. 7 W with IR cut filter on)
Impact protection
IK10
-W: IK08
Ingress protectionIP66
IR range30 meters
Dimensions 111 x 82 (4.4” x 3.2”)
Weight500g (1.1 lbs)
IR Fixed Dome Network Camera
DS-2CD2122F-I(S)(W) (2.0MP)
DS-2CD2132F-I(S)(W) (3.0MP)

BLC
ICR
2.0MP:
DS-2CD2122F-I, DS-2CD2122F-IS,
DS-2CD2122F-IW, DS-2CD2122F-IWS
3.0MP:
DS-2CD2132F-I, DS-2CD2132F-IS,
DS-2CD2132F-IW, DS-2CD2132F-IWS
* 1.3MP model is also available -- DS-2CD2112F-I
* -S: Audio I/O interface, Alarm I/O interface.
-W: Built-in Wi-Fi
Available models

(12mm)
(12mm)
