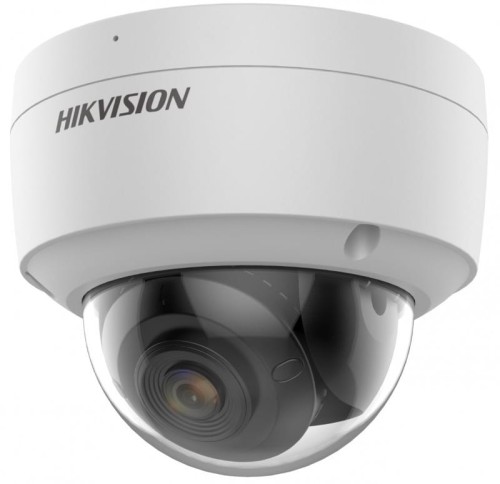

DS-2CD2127G2(2.8mm)(C)

DS-2CD2127G2(-SU)  2 MP ColorVu Fixed Dome Network Camera                            Hikvision ColorVu technology provides 24/7 vivid colorful  images with F1.0 advanced lenses and high performance  sensors. F1.0 super-aperture collects more light to produce  brighter images. Advanced sensor technology can vastly  improve the utilization of available light.     High quality imaging with 2 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong back light due to 120 dB WDR  technology   24/7 colorful imaging   Focusing on human and vehicle classification based on  deep learning   -U: Built-in microphone for real-time audio security   -S: Audio and alarm interface available   Water and dust resistant (IP67) and vandal resistant (IK10)               Specification  Camera  Image Sensor 1/2.8″ Progressive Scan CMOS  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Lens Type 2.8 mm, 4 mm ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2127G2(-SU)
2 MP ColorVu Fixed Dome Network Camera













Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses and high performance
sensors. F1.0 super-aperture collects more light to produce
brighter images. Advanced sensor technology can vastly
improve the utilization of available light.

 High quality imaging with 2 MP resolution
 Efficient H.265+ compression technology
 Clear imaging against strong back light due to 120 dB WDR
technology
 24/7 colorful imaging
 Focusing on human and vehicle classification based on
deep learning
 -U: Built-in microphone for real-time audio security
 -S: Audio and alarm interface available
 Water and dust resistant (IP67) and vandal resistant (IK10)






 Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type 2.8 mm, 4 mm
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
Lens Mount M12
Aperture F1.0
Working Distance
2.8 mm: 1.7 m to ∞
4 mm: 2.3 m to ∞
DORI
DORI
2.8 mm: D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25 fps (1920 x 1080, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering -SU: Yes
Audio Sampling Rate -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC



Audio Bit Rate
-SU: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32
to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64 Kbps(AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone -SU: Yes
Audio
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface
type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω,
interface type: non-equilibrium, mono sound
Alarm -SU: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
Hardware Reset Yes
Event
Basic Event
Motion detection (human and vehicle), video tampering alarm, exception (network
disconnected, IP address conflict, illegal login, HDD full, HDD error)
-SU: alarm input and output
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Power
12 VDC ± 25%
PoE: 802.3af, Class 3



Camera Material Metal
Camera Dimension Ø121.4 x 100.1 mm (Ø4.8" x 3.9")
Package Dimension 150 x 150 x 141 mm (5.9" x 5.9" x5.6")
Camera Weight Approx. 570 g (1.3 lb.)
With Package Weight Approx. 820 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, send email
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
Approval
Class Class B
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)







 Available Model
DS-2CD2127G2 (2.8/4 mm)
DS-2CD2127G2-SU (2.8/4 mm)



 Dimension



 Accessory
 Optional
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-DM46
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-120B
Wall Mount
DS-1271ZJ-120
Pendant Mount






DS-1253ZJ-M
Rain Shade
DS-1272ZJ-120
Wall Mount
