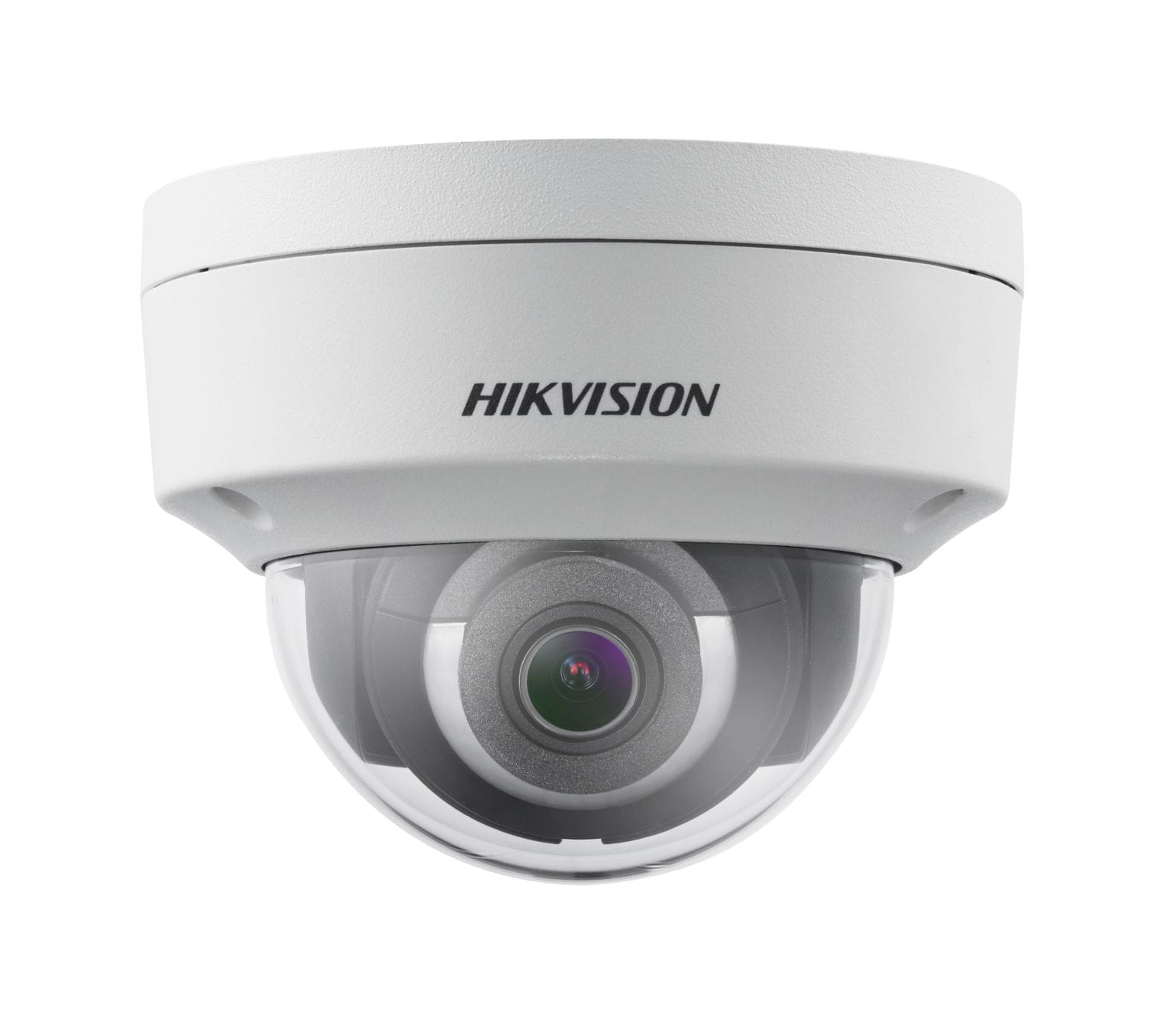

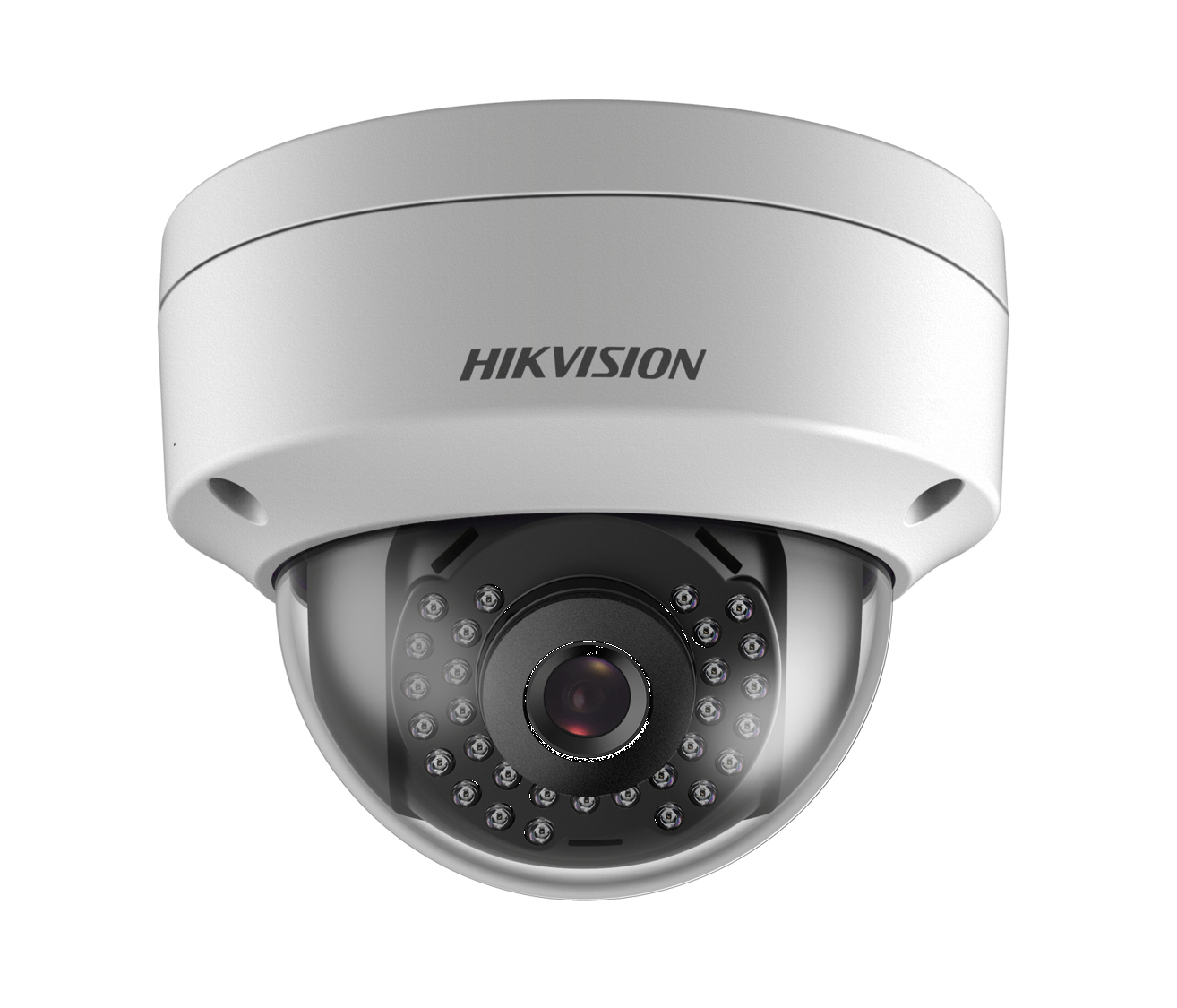

DS-2CD2122FWD-IW(4mm)
Description
DS -2CD2122FWD -I (W) (S) 2MP WDR Fixed Dome Network Camera Up to 2 megapixel high resolution Dual stream 2.8mm/4mm/6mm fixed lens 120dB Wide Dynamic Range 3D Digital Noise Reduction 3-axis adjustment Support on -board storage, up to 128 GB DC12V & PoE Support H.264+ Up to 30m IR range IP6 7 weather-proof protection IK10 -S: Audio/Alarm IO -W: Built-in Wi-Fi Mobile Monitoring via EZVIZ P2P or iVMS -4500 Camera Accessories Inclined ceiling mount DS -1259ZJ Wall mount DS -1272ZJ-110 Wall mount + Junction Box DS -1272ZJ-110B Pendant mount DS -1271ZJ-110B Junction Box DS -1280ZJ-DM18 Corner mount DS -1276ZJ Vertical Pole mount DS -1275ZJ Rain -proof Cap DS -1250ZJ Specification Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 115 °(2.8m...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS -2CD2122FWD -I (W) (S)
2MP WDR Fixed Dome Network Camera
Up to 2 megapixel high resolution
Dual stream
2.8mm/4mm/6mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
3-axis adjustment
Support on -board storage, up to 128 GB
DC12V & PoE
Support H.264+
Up to 30m IR range
IP6 7 weather-proof protection
IK10
-S: Audio/Alarm IO
-W: Built-in Wi-Fi
Mobile Monitoring via EZVIZ P2P or iVMS -4500
Camera Accessories
Inclined ceiling mount
DS -1259ZJ
Wall mount
DS -1272ZJ-110
Wall mount + Junction Box
DS -1272ZJ-110B
Pendant mount
DS -1271ZJ-110B
Junction Box
DS -1280ZJ-DM18
Corner mount
DS -1276ZJ
Vertical Pole mount
DS -1275ZJ
Rain -proof Cap
DS -1250ZJ
Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 115 °(2.8mm), 90°(4mm), 53.9 °(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
P&T rotation Pan: 0° ~ 355 °, Tilt: 0° ~ 75 °, Rotation: 0° ~ 355 °
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Max Frame Rate
50Hz:Main stream:25fps(1920x1080),25fps(1280x96 0),25fps(1280x720)Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:30fps (1920x1080), 30fps(1280 x96 0), 30fps(1280x720) Sub stream: 30fps(352x240),30fps(640x36 0)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One -key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On -board storage Built -in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface 1x audio I/O *only for –S models
Reset Yes
DS -2CD2122 FWD -I (W)(S)
2MP WDR Fixed Dome
Network Camera
Wi -Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK , 802.11g/n: OFDM
Security 64/128 -bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps , 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%, PoE (802.3af Class 3 )
Power Consumption Max. 5W
Max. 9W with pan and tilt
IR Range Approx. 30 meters
Material
DS -2CD2122FWD-I, DS-2CD2122FWD-IS: Base & Top Cover: Metal
DS -2CD2122FWD-IW, DS-2CD2122FWD-IWS: Base: Metal; Front Cover: Plastic
Ingress Protection IP67
Impact Protection IK10
Dimensions Φ111 x 82 (4.4” x 3.2”)
Weight 500 g (1.1lbs)
Order Models
DS -2CD2 122FWD-I, DS-2CD2 122FWD-IS, DS-2CD2 122FWD-IW, DS-2CD2 122FWD-IWS
-S: Audio/Alarm IO, -W: Built-in Wi-Fi
DS -2CD2122 FWD -I (W)(S)
2MP WDR Fixed Dome
Network Camera
Dimensions
