DS-2CD2122FWD-I(2.8mm)

Availability: 0

Price: €168.05 168.05

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300812067

ask about product or pricing

Description

Warning! Product withdrawn from production!

Replacement product: DS-2CD2122FWD-I(2.8mm)(T)

Replacement product code: 300814826

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

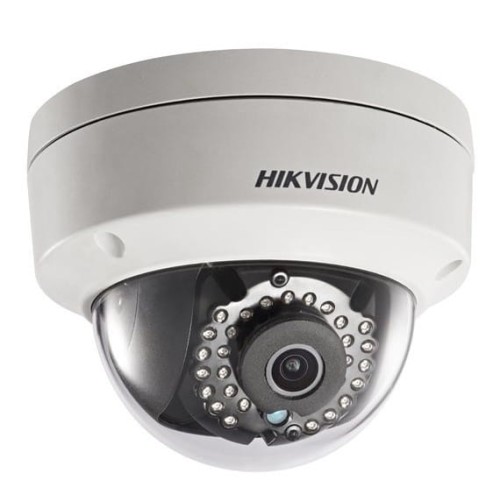

DS-2CD2122FWD-I (W) (S)
2MP WDR Fixed Dome Network Camera

 Up to 2 megapixel high resolution
 Full HD1080p video
 Dual video streams
 4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 3-axis adjustment
 Support on-board storage, up to 64GB

 DC12V & PoE
 Support H.264+
 Up to 30m IR range
 IP66 weather-proof protection
 IK08 vandal-proof protection
 -S: Audio/Alarm IO
 -W: Built-in Wi-Fi
 Mobile Monitoring via EZVIZ P2P or iVMS-4500

Camera Accessories

Inclined ceiling mount
DS-1259ZJ

Wall mount
DS-1272ZJ-110
Wall mount + Junction Box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110B
Junction Box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ

Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 4mm, 6mm @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
P&T rotation Motorized Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface 1x audio I/O *only for –S models
Reset Yes

DS-2CD2122FWD-I (W)(S)
2MP WDR Fixed Dome
Network Camera

Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Reception Sensitivity
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)

Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
Max. 9W with pan and tilt
IR Range Approx. 30 meters
Ingress Protection IP66
Impact Protection IK08
Dimensions Φ111 x 82 (4.4” x 3.2”)
Weight 500g (1.1lbs)
Order Models
DS-2CD2122FWD-I, DS-2CD2122FWD-IS, DS-2CD2122FWD-IW, DS-2CD2122FWD-IWS

-S: Audio/Alarm IO, -W: Built-in Wi-Fi

DS-2CD2122FWD-I (W)(S)
2MP WDR Fixed Dome
Network Camera

Dimensions
