DS-2CD2112-I(4mm)
Description
Key features Dimensions Accessories DS-2CD2112-I 1.3MP Outdoor Dome Camera 1.3 Megapixel (1280 x 960) High Resolution HD 720p Real-time Video True Day / Night Auto Switch IP66 Ingress Protection IR LEDs up to 30m Vandal-proof Housing DS-2CD2112-I Camera Image sensor1/3 progressive scan CMOS Min. illumination 0.028 lux@F2.0, AGC ON 0 lux with IR Shutter time1/30s ~ 1/100,000s Lens4mm@F2.0, angle of view: 52° (2.8mm, 6mm, 12mm optional) Lens mountM12 Angle adjustment (2-Axis)Pan: 0° ~ 355°, tilt: 0° ~ 65° Day & nightICR Compression standard Video compression H.264 / MJPEG Bit rate32 Kbps ~ 16 Mbps Dual streamYes Image Max. image resolution1280 x 960 Frame rate60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720) Image settings Saturation, brightness, contrast adjustable through client software or web browser Network Network storageNAS Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conflict, storage exception Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos System compatibilityONVIF, PSIA, CGI General functionalitiesFlickerless, heartbeat, ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key features
Dimensions
Accessories

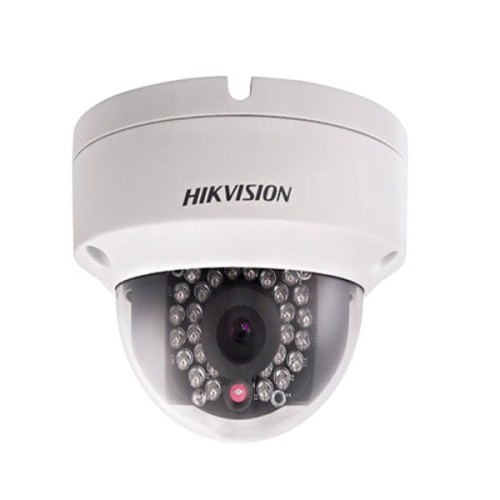

DS-2CD2112-I 1.3MP Outdoor Dome Camera
1.3 Megapixel (1280 x 960) High Resolution
HD 720p Real-time Video
True Day / Night Auto Switch
IP66 Ingress Protection
IR LEDs up to 30m
Vandal-proof Housing
DS-2CD2112-I
Camera
Image sensor1/3 progressive scan CMOS
Min. illumination
0.028 lux@F2.0, AGC ON
0 lux with IR
Shutter time1/30s ~ 1/100,000s
Lens4mm@F2.0, angle of view: 52° (2.8mm, 6mm, 12mm optional)
Lens mountM12
Angle adjustment (2-Axis)Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & nightICR
Compression standard
Video compression H.264 / MJPEG
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. image resolution1280 x 960
Frame rate60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS
Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP,
HTTPS, FTP, 802.1x, Qos
System compatibilityONVIF, PSIA, CGI
General functionalitiesFlickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions-30°C ~ 60°C (-22°F ~ 140°F) humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumption2 W ~ 4 W (IR LEDs: +2W)
Impact protectionIEC60068-275Eh, 50J; EN50102, up to IK10
IR rangeapprox 20 to 30 meters
Dimensions d 140 x 92 mm
Weight600g
Available models
DS-2CD2112-I (1.3MP)
DS-1258ZJ
(Wall mount)
DS-1272ZJ-110B
(Wall mount)
DS-1280ZJ-DM18
Junction box
HD Video
CMOS
CMOS
1/3
IR
IP66
Megapixel
MP Camera
1.3
For more information: www.hikvision.com
908 Canada Court
City of Industry, CA 91748
Tel: 909.895.0400, sales@hikvisionusa.com
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/26/13
Note: This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
