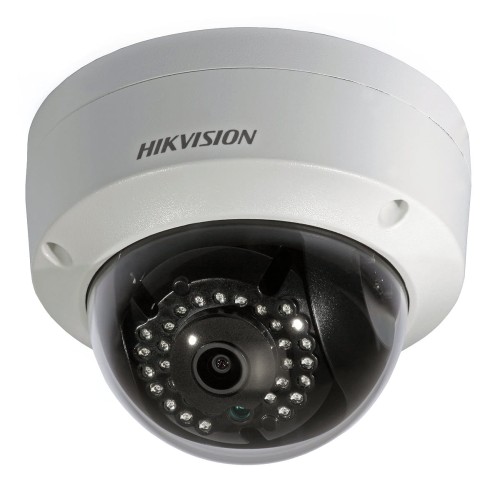

DS-2CD2110F-I(2.8mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2110F-I(W)(S)      Key Features   Up to 1.3 megapixel (1280 x 960) resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life infrared LED, Approx. 10 to 30 meters IR range   Two-way audio(-S)   Audio I/O(-S)   Support Wi-Fi(-W)   IR cut filter with auto switch   PoE (Power over Ethernet)   Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB   Ingress Protection level: IP67   Impact Protection: IK10   Other functions: rotate mode, alarm, mirror, reset button, etc   Support intrusion detection, line crossing detection   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Specification   Model  Parameter  DS-2CD2110F-I(W)(S)  1.3 Megapixel CMOS Vandal-proof Network Dome Camera  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination  0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR  0.028 Lux @ (F2.0, AGC O...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2110F-I(W)(S)


Key Features
 Up to 1.3 megapixel (1280 x 960) resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life infrared LED, Approx. 10 to 30 meters IR range
 Two-way audio(-S)
 Audio I/O(-S)
 Support Wi-Fi(-W)
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 Ingress Protection level: IP67
 Impact Protection: IK10
 Other functions: rotate mode, alarm, mirror, reset button, etc
 Support intrusion detection, line crossing detection
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2110F-I(W)(S)
1.3 Megapixel CMOS Vandal-proof Network Dome Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm@ F2.0 (2.8mm, 6mm optional)
Angle of view: 92.5°(2.8mm), 73.1°(4mm) , 46°(6mm)



©2006 – 2014 by HIKVISION. All rights reserved.
2
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range Digital WDR
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Compression Standard
Video Compression H.264/ MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Dual Stream Yes
Audio
Compression(-S)
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate(-S) 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Max. Resolution 1280 x 960
Max Frame Rate
50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720)
Sub Stream
50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage
Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB.
NAS (Support NFS,SMB/CIFS)
Detection Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis
Alarm Trigger
Tampering alarm, Network disconnect, IP address conflict, Storage
exception
Protocols
TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Anti-Flicker, heartbeat, mirror, password protection,
privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Alarm interface -S: 1 alarm I/O
Audio interface -S: 1 audio I/O



©2006 – 2014 by HIKVISION. All rights reserved.
3
Wi-Fi Specification(Only for the products with Wi-Fi module built-in)
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates
11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range 50m(depend on environment)
Wireless Standards IEEE802.11b, 802.11g, 802.11n
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power Consumption Max. 5W
Material Base: Metal; Top Cover: Plastic
Ingress Protection
level
IP67
IR Range 30 meters
Impact Protection IK10
Dimensions Φ111 x 82 (4.4” x 3.2”)
Weight 500g (1.1 lb)
* “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X
protocol.
Order Models
DS-2CD2110F-I, DS-2CD2110F-IW, DS-2CD2110F-IS, DS-2CD2110F-IWS



©2006 – 2014 by HIKVISION. All rights reserved.
4
Dimensions



Accessories


Inclined ceiling mount Wall mount
DS-1259ZJ DS-1272ZJ-110
