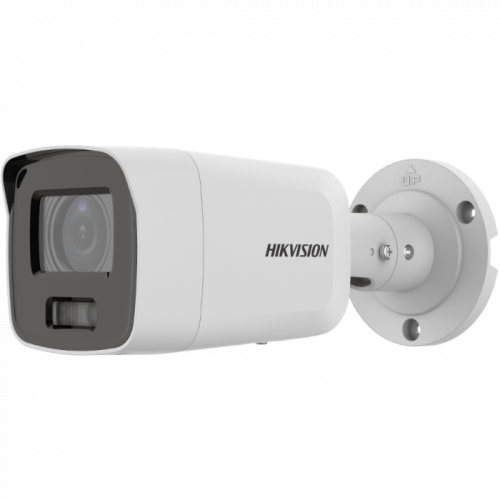

DS-2CD2087G2-L(2.8mm)(C)

DS-2CD2087G2-L(U)  8 MP ColorVu Fixed Bullet Network Camera                        Hikvision ColorVu technology provides 24/7 vivid colorful  images with F1.0 advanced lenses, high performance sensors  and friendly lighting. F1.0 super-aperture collects more light  to produce brighter images. Advanced sensor technology can  vastly improve the utilization of available light. In zero-light  scenarios, built-in, warm supplemental lighting works to  guarantee colorful images.     High quality imaging with 8 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong back light due to 130 dB WDR  technology   Focusing on human and vehicle classification based on  deep learning   24/7 colorful imaging   Built-in microphone for real-time audio security (-U)               Specification  Camera  Image Sensor 1/1.2″ Progressive Scan CMOS  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 130 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  L...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2087G2-L(U)
8 MP ColorVu Fixed Bullet Network Camera











Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses, high performance sensors
and friendly lighting. F1.0 super-aperture collects more light
to produce brighter images. Advanced sensor technology can
vastly improve the utilization of available light. In zero-light
scenarios, built-in, warm supplemental lighting works to
guarantee colorful images.

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR
technology
Focusing on human and vehicle classification based on
deep learning
24/7 colorful imaging
Built-in microphone for real-time audio security (-U)






Specification
Camera
Image Sensor 1/1.2″ Progressive Scan CMOS
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 130 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Depth of Focus
2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞
Lens Type & FOV
2.8 mm, horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 49°, diagonal FOV 102°
6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Aperture F1.0
DORI
DORI
2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
White Light Range 40 m
Smart Supplement Light Yes
Video
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160, 3072 x 1728)
25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160, 3072 x 1728)
30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes



Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to
192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -U: Yes
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Built-in Microphone -U: Yes
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle), video tampering alarm, exception (network
disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Premier Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, send email



Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and
Current
12 VDC, 0.6 A, max. 7 W
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W
Power Interface Ø5.5 mm coaxial power plug
Material Front cover: metal, back cover: metal
Camera Dimension 78.8 x 78.6 x 215.2 mm (3.1″ x 3.1″ x 8.5'')
Package Dimension 315 x 137 x 141 mm (12.4" x 5.4" x 5.6")
Camera Weight Approx. 860 g (1.9 lb.)
With Package Weight Approx. 1265 g (2.8 lb.)
Approval
Class Class B
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)






Available Model
DS-2CD2087G2-L (2.8/4/6 mm)
DS-2CD2087G2-LU (2.8/4/6 mm)



Dimension



Accessory
Optional
DS-1276ZJ-SUS
Corner Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-S
Junction Box

























050515420200930
